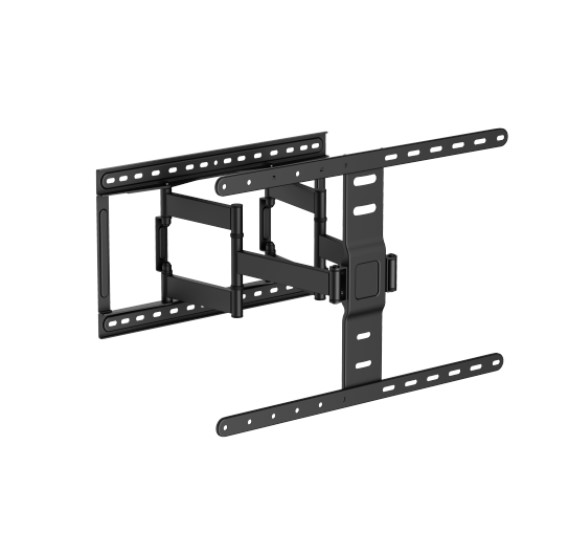

Brateck LPA83-466 Modern ULTRA-SLIM FULL-MOTION TV Wall Mount For most 43'-90' TVs, Weight Capacity: 60kg, 420x509x632mm (LS)

Brateck's MPN:

LPA83-466

Brateck LPA83-466 MODERN ULTRA-SLIM FULL-MOTION TV WALL MOUNT For most 43'-90' TVs FEATURES ●Ultra-slim design ●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat) ●Folding Design: saves space (keeping the screen and arm out of the way when not in use) ●Cable Management: keeps everything organized ●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare ●Leveling adjustments: allow TV to be perfectly positioned after hanging ●Easy Assembly: Installation is as easy as 1-2-3 SPECIFICATIONS Product Category: Full-motion TV Wall Mount Rank: Standard Material: Steel Metal Sheet Thickness: Bracket Arm THK=3.0mm pickling sheet,VESA Panel THK=2.5mm pickling sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.12' pickling sheet,VESA Panel THK=0.098' pickling sheet,Wall Plate THK=0.098' pickling sheet) Pipe Size: 40x15x1.2mm Square Steel Tube (1.6'x0.59'x0.047' Square Steel Tube) Surface Finish: Powder Coating Color: Fine Texture Black Dimensions: 420x509x632mm (16.5'x20'x24.9') Fit Screen Size: 43'-90' Fit Curved TV: Yes Mounting Hole Pattern: VESA & Universal VESA Compatible: 100x200,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,400x400,600x300,600x400 Max. Mounting Hole: 602x400 Weight Capacity: 60kg (132lbs) Strength Tested: 4 Times Approved Profile: 27~420mm (1.1'~16.5') Tilt Range: +3°~-12° Swivel Range: +60°~-60° Screen Level: +3°~-3° Screen Freely Tilting: Yes Installation: Solid Wall,Double Stud(406mm/450mm) Panel Type: Detachable Panel Wall Plate Type: Fixed Wall Plate AV Component Shelf: No Direction Indicator: Yes Cable Management: Yes Anti-theft: No Bubble Level: Hook-on Bubble Level(Included in Components Package) Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag Silk Screen: Can be silkscreen printed
