Asus's MPN:
ROG-LOKI-1000P-SFX-L-GAMING
ROG-LOKI-1000P-SFX-L-GAMING, DIMENSION 125 x 125 x 63.5, Weight 1.83kg, TTL OUTPUT 1000W, RGB Lightning AURA SYNC, CONNECTOR Full Modular

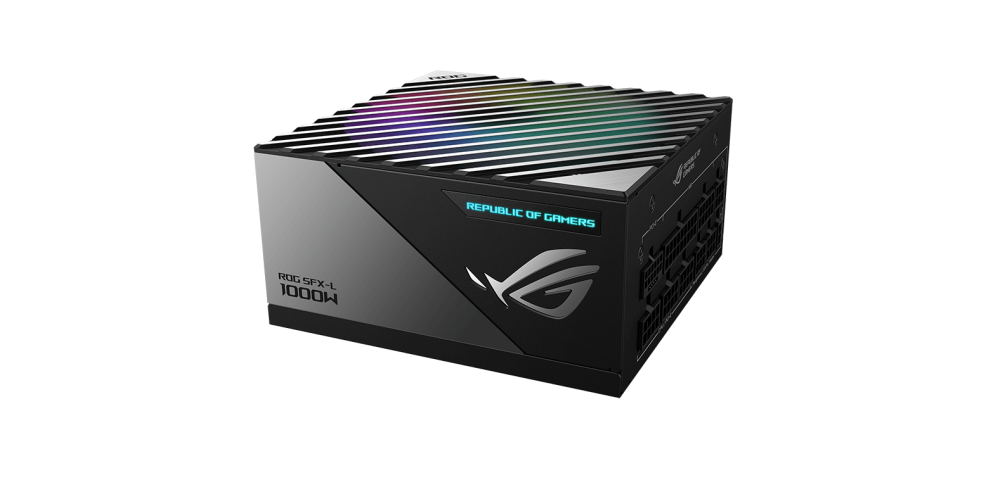

ROG Loki 1000W Platinum
The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 1000W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
Axial-Tech Cooling
120mm fan with PWM control for low noise and thermals kept in check
Compact Form Factor
SFX-L : 125 x 125 x 63.5 mm
PCIe Gen 5.0 Ready
16-pin cable included to pipe up to 600W power to PCIe 5.0 graphics cards
Future Ready
Tighter voltage and current regulation
80 PLUS Platinum Certified
Up to 92% efficient for low heat and noise, and increased reliability
ARGB-Illuminated Fan & Aura Sync
Ready to synchronize lighting effects across your gaming setup
Technical Specifications
Specifications
Product Type
|
Power Supply
|
Warranty
|
10 Years
|
Weight
|
1.83kg (single PSU)
|
AC Input Range
|
100-240Vac
|
Combined Load
|
110W 110W 1000W 9.6W 12.5W
|
Connectors
|
MB 24/20-pin x 1, CPU 4+4-pin x 2, PCI-E 16-pin x 1, PCI-E 8-pin x 3, SATA x 6, PERIPHERAL x 4
|
DC Output Voltage
|
+3.3V +5V +12V -12V +5Vsb
|
Dimensions
|
125 x 125 x 63.5 mm
|
Efficiency
|
80Plus Platinum
|
Maximum Load
|
20A 20A 83.3A 0.8A 2.5A
|
Protection Features
|
OPP/OVP/UVP/SCP/OCP/OTP
|
Total Output
|
1000W
|
