QSW-1105-5T, 5 port 2.5Gbps auto negotiation (2.5G/1G/100M), unmanagement switch

Features
qsw-1105-5t network loop ieee switch
Click to view full size
5gbe power port 5gbps fanless
Click to view full size

(Pictures are For Illustration Purposes Only)

Qnap

Qnap's MPN:

QSW-1105-5T

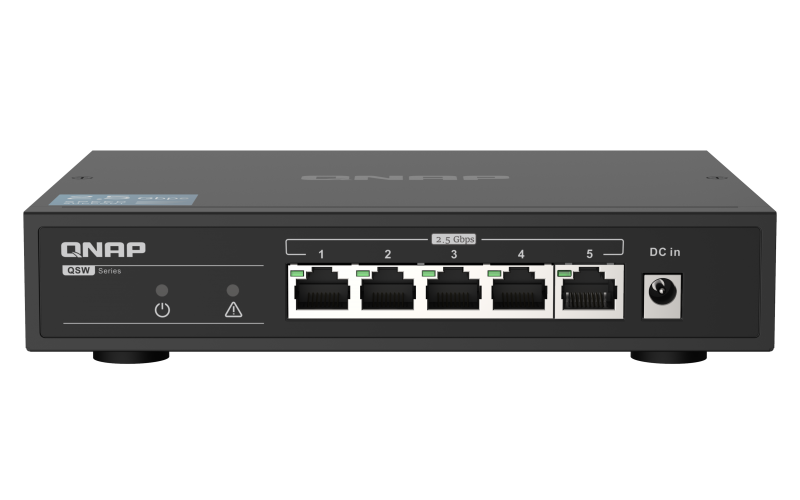

QSW-1105-5T, 5 port 2.5Gbps auto negotiation (2.5G/1G/100M), unmanagement switch


With five 2.5GbE ports, the QNAP QSW-1105-5T switch instantly upgrades your network to take advantage of 2.5GbE-enabled devices and NAS without requiring any new network cables. Featuring a near-silent fanless design and plug-and-play set up, the QSW-1105-5T provides network loop detection and blocking functions, making it easy for you to create an affordable high-speed network environment for your home or business.


2.5GbE connectivity

Immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.


Plug and play

No complex settings are required, and auto-negotiation ensures optimal performance.


Loop detection

Automatic loop detection and blocking to ensure continuous network operation.


Silent operation

The unique fanless design with ventilated construction provides near-silent operation.

Technical Specifications

Specifications

Product Type
2.5GbE Switch

Speed

Warranty
2 Years

Certifications
FCC, CE, BSMI, VCCI, LVD, CCC, KCC, ASNZ

Dimensions (HxWxD)
34 x 180 x 145 mm

Electromagnetic Compliance
Class B

Fanless
Yes

Form Factor
Desktop

Input Power Type
DC

Input Voltage Range
12V

Jumbo Frames
9K

LED Indicators

Per Port:
Speed/Link/Activity, Loop LED: Loop, Per System: Power/Status

MAC Address Table
16K

Management Type
Unmanaged

Max. Power Consumption
12 W

Number of Ports
5 x 2.5GbE (RJ45)

Operating Temperature
0°C to 40°C (32°F to 104°F)

Power Supply Description
Adapter

Relative Humidity
10% to 90% (non-condensing)

Supported Standards
IEEE 802.3 Ethernet, IEEE 802.3u 100BASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3bz 2.5GBase-T, IEEE 802.3x Full-Duplex Flow Control

Switching Capacity
25Gbps

Total Non-Blocking Throughput
12.5Gbps

Weight (Net)
577g
