2-bay 3.5" SATA HDD USB 3.2 Gen2 10Gbps type-C hardware RAID external enclosure TR-002

Features

Click to view full size

external type-c drive hardware expansion

Click to view full size

(Pictures are For Illustration Purposes Only)

Qnap's MPN:

TR-002

2-bay 3.5" SATA HDD USB 3.2 Gen2 10Gbps type-C hardware RAID external enclosure

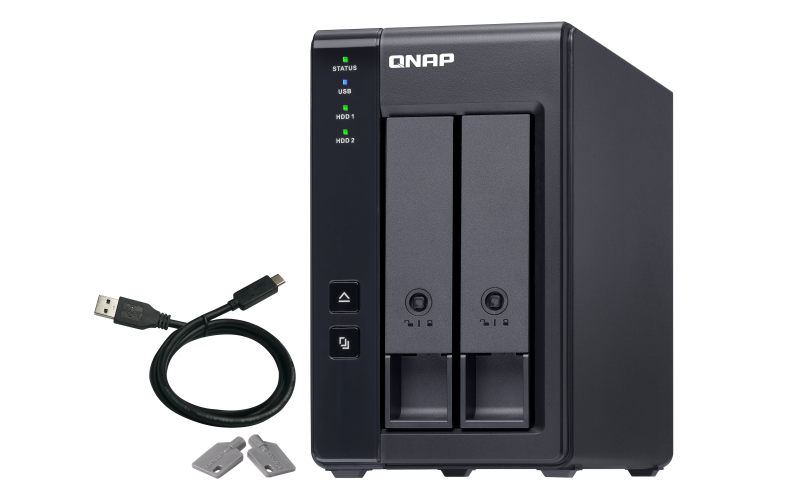

The TR-002 USB 3.2 Gen 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.2 Gen 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.

1 USB 3.2 Gen 2 Type-C port* for faster data transfer. *Maximum 1M USB cable is recommended.

2 Supports up to two SATA drives.

3 Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.

4 Lockable hard drive trays to prevent accidental drive removal.

5 Eject button for disconnecting the TR-002 from a NAS or computer*.

*Requires the QNAP External RAID Manager utility.

Effective storage expansion with RAID Support

The TR-002 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install higher-capacity drives. Featuring two 3.5-inch SATA drive bays and supporting RAID configuration, the TR-002 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.

Supports various RAID levels

The TR-002 supports various RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0 or RAID 1. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.

Flexible storage configuration and management

Compared with other RAID enclosures, the TR-002 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.

Specifications

Bays	2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Capacity	Not Included
Form Factor	Tower
LAN Port	None
Processor/Memory	Micro processor with hardware RAID
Product Family
Raid	Individual, JBOD, RAID 0, RAID 1
USB Port	1 x Type-C USB 3.2 Gen 2 10Gbps
Warranty	2 Years
Dimensions (HxWxD)	168.5 × 102 × 219 mm
Fan	1 x 70mm, 12VDC
Hot-swappable	Yes
Kensington Security Slot	Yes
Operating temperature	0 - 40 °C
Power Consumption: HDD Sleep Mode	2.98 W
Power Consumption: Operating Mode, Typical	10.15 W (Tested with drives fully populated)
Power Supply Unit	External Power Adapter, 36W, 100-240V
Relative Humidity	5-95% RH non-condensing, wet bulb: 27°C
Series	QNAP USB
Storage Temperature	-20 - 70°C
System Warning	Buzzer
Weight (Net)	1.37 kg
