TP-LINK EAP245 AC1750 1750Mbps Wireless Dual Band Gigabit Ceiling Mount Access Point PoE

EAP245

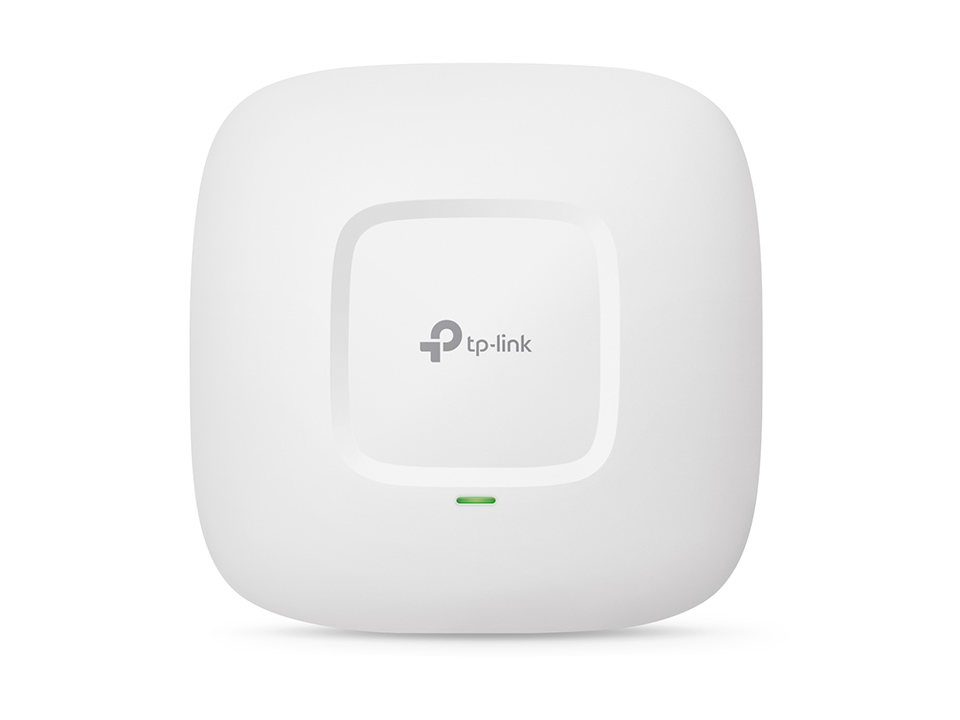

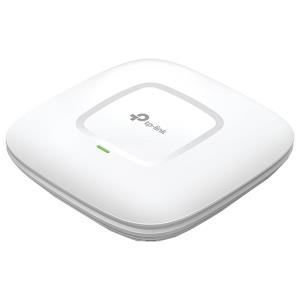

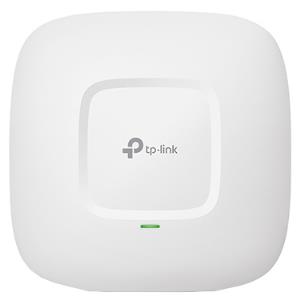

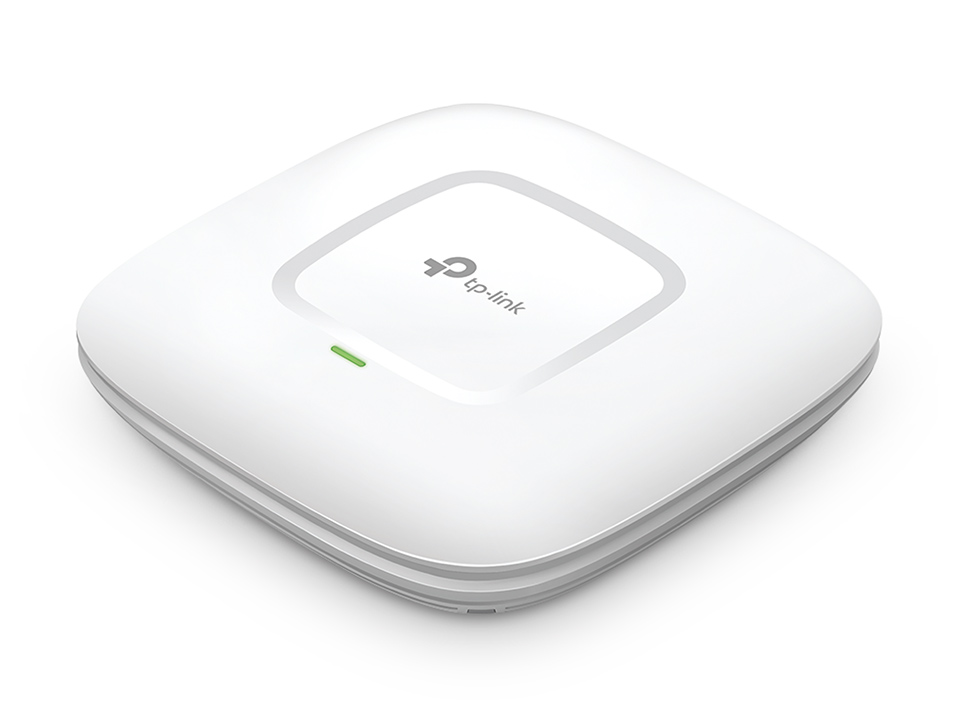

TP-Link EAP245 AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point




Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds


Free EAP Controller Software lets administrators easily manage hundreds of EAPs


Support Power over Ethernet(802.3at) for convenient and affordable installation


Captive portal provides a convenient method for guest authentication


Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections


Load balance ensures large numbers of users have smooth network experiences in high density business networks


Supports management VLAN for an enhanced network management




HARDWARE FEATURES

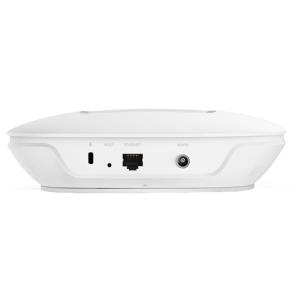

Interface Gigabit Ethernet (RJ-45) Port *1（Support IEEE802.3at PoE）


Button Reset


Power Supply PoE or External 12VDC / 1.5A Power Supply


Power Consumption 12.7 W


Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9in. (180*180*47.5mm)


Antenna Type Internal Omni




2.4Ghz:
3* 4dBi




5Ghz:
3*4dBi


Mounting Ceiling /Wall Mounting (Kits included)


Physical Security Lock Kensington Lock Slot


Watch Dog Yes


WIRELESS FEATURES


Wireless Standards IEEE 802.11ac/n/g/b/a


Frequency 2.4GHz and 5GHz




Signal Rate 5Ghz:
Up to 1300Mbps




2.4Ghz:
Up to 450Mbps


Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）


Enable/Disable Wireless Radio


Automatic Channel Assignment


Transmit Power Control （Adjust Transmit Power on dBm）


QoS(WMM)


Band Steering


Load Balance


Rate Limit


Reboot Schedule


Wireless Schedule


Wireless Statistics based on SSID/AP/Client


Wireless Security Captive Portal Authentication


Access Control


Wireless Mac Address Filtering


Wireless Isolation Between Clients


SSID to VLAN Mapping


Rogue AP Detection


802.1X Support


64/128/152-bit WEP / WPA / WPA2-Enterprise,


WPA-PSK / WPA2-PSK


Transmission Power CE：


<20dBm(2.4GHz)


<23dBm(5GHz)




Fcc:



<27dBm(2.4GHz & 5GHz)
