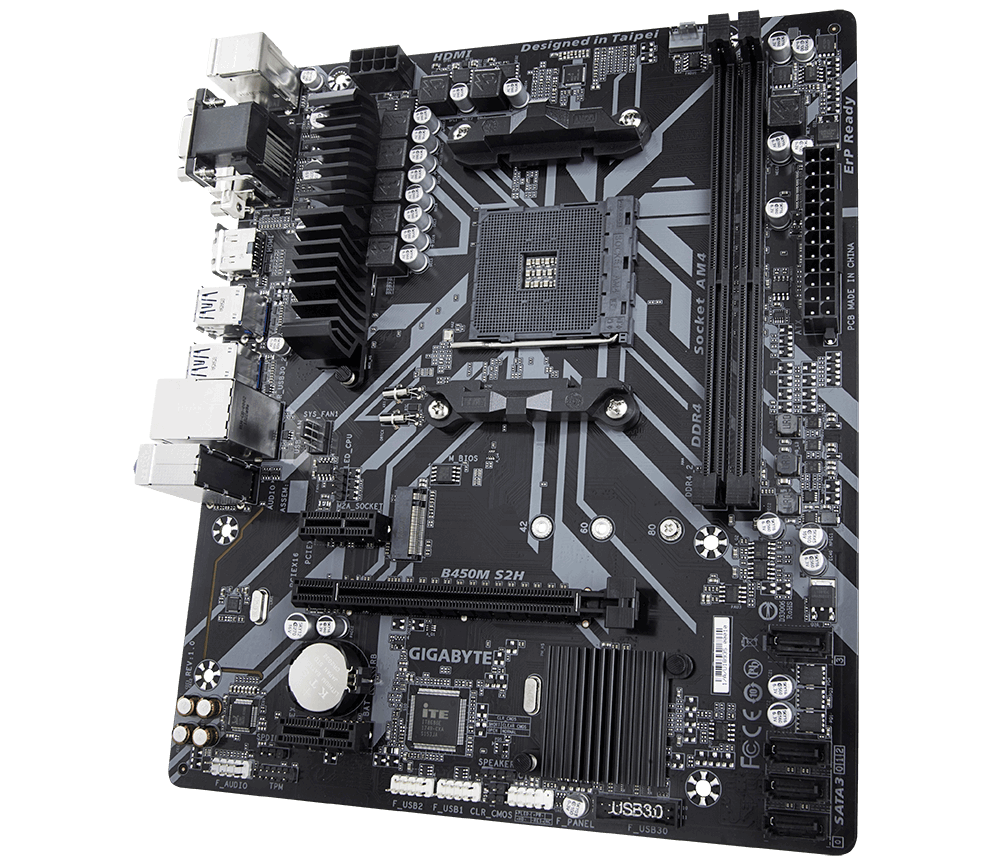

Gigabyte GA-B450M-S2H, 4xDDR4 3xPCIE 1xM.2 DVI HDMI RAID GbE Lan 4xSATA 2xUSB3.1 8xUSB2.0 Quad CrossFire RGB Fusion

Features

Click to view full size

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

Gigabyte's MPN:

GA-B450M-S2H

AMD, B450, ULTRA DURABLE, AM4, 2xDDR4, 1xD-SUB, 1xDVI, 1xHDMI, 1xRJ45, 3xPCI-E, mATX, 1xM.2, 4xSATA, 3 Years Warranty

AMD B450 Ultra Durable Motherboard with GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor Design.

Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

HDMI, DVI-D, D-sub Ports for Multiple Display

Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

RGB Fusion supports RGB LED Strips in 7-Colors

High Quality Audio Capacitors and Audio Noise Guard Design

Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers

APP Center Including EasyTune™ and Cloud Station™ Utilities

Specifications

Audio	Realtek® ALC887 codec
Chipset	AMD B450
Form Factor	mATX
I/O Connectors	1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.1 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
Integrated CPU Graphics	Yes, Actual support may vary by CPU
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Memory/Type/Bus/Max.	2 x DDR4 DIMM sockets supporting DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules up to 32 GB of system memory,
PCI Slots	1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots
Processor Support	Am4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
Raid	Support for RAID 0, RAID 1, and RAID 10
RAM Type/Bus/Max.	2 x DDR4 DIMM sockets supporting DDR4 3200(O.C.)/2933/266
Socket	AM4
Storage Interface	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support), 4 x SATA 6Gb/s connectors
Warranty	3 Years
Weight	790g

Information

SKU/Item No 590329

Vendor Part No GA-B450M-S2H

UPC/EAN Number MBG-B450MS2H

Our Stock ** (click for more info)

Price

$94.30

Buy Qty

QR 2D barcode
Product link	Product
Manufacturer's link	Gigabyte
