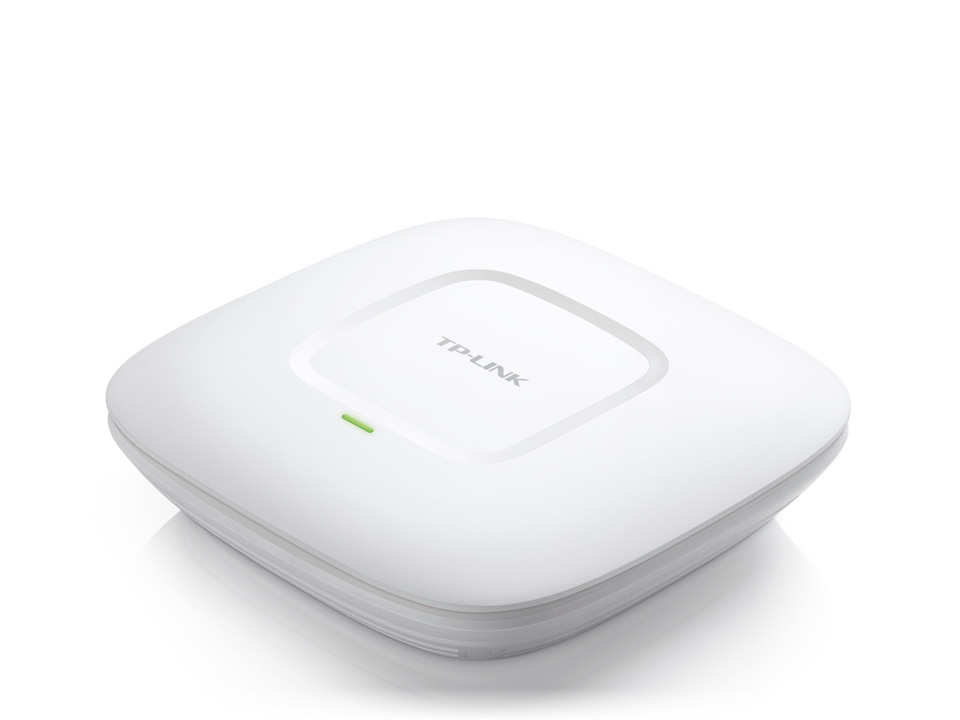

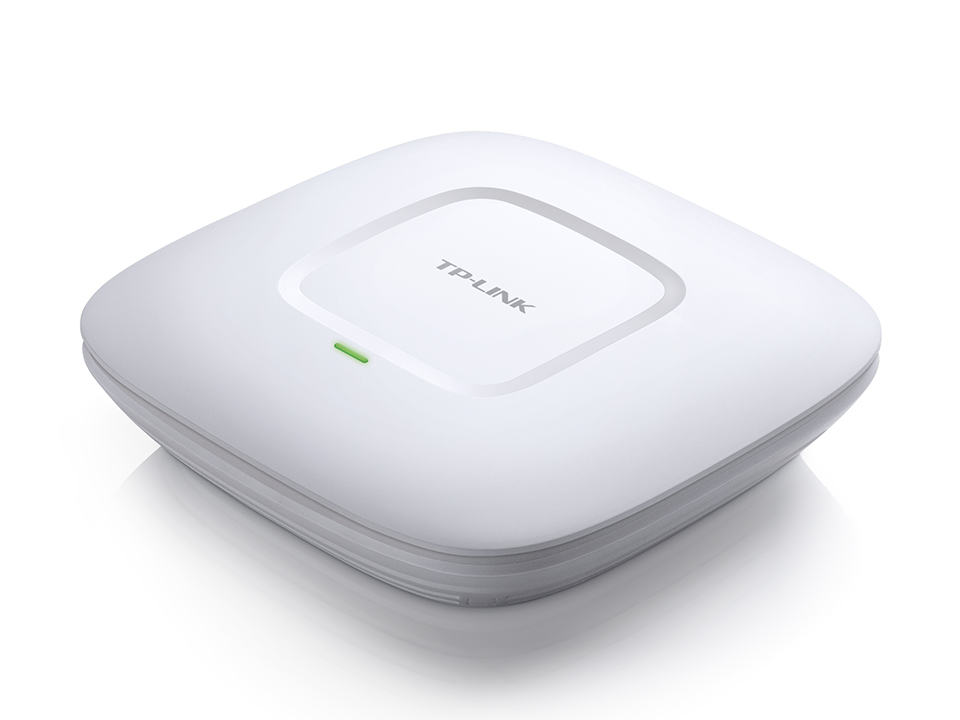

TP-LINK EAP110 300Mbps Wireless N300 Ceiling Mount Access Point 1x1Gbps RJ45 PoE 1x Console Port 2x4dBi Omni Internal Antenna

EAP110

TP-Link EAP110 300Mbps Wireless N300 Ceiling Mount Access Point 1x1Gbps RJ45 PoE 1x Console Port 2x4dBi Omni Internal Antenna




EAP Controller Software enables administrators to easily manage hundreds of EAPs


Supports passive PoE for convenient installation up to 100meters


Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling


Captive portal provides one convenient method of authentication for Wi-Fi guests


Multi-SSID divides multiple wireless networks for different users


Enterprise class Wi-Fi security help to decrease network security threats




HARDWARE FEATURES


Interface Fast Ethernet (RJ-45) Port *1（Support Passive PoE）


Button Reset


Power Supply 24VDC / 1A Passive PoE Supply


Power Consumption 7.7W


Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b


Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)


Antenna Type Internal 2* 3dBi Omni


Mounting Ceiling /Wall Mounting (Kits included)


Physical Security Lock Kensington Lock Slot


Watch Dog Yes


WIRELESS FEATURES


Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b


Frequency 2.4-2.4835GHz




Signal Rate 11N:
Up to 300Mbps(dynamic)




11G:
Up to 54Mbps(dynamic)




11B:
Up to 11Mbps(dynamic)




Reception Sensitivity 300M:
-71dBm@10% PER




150M:
-75dBm@10% PER




54M:
-78dBm@10% PER




11M:
-93dBm@8% PER




6M:
-92dBm@10% PER




1M:
-96dBm@8% PER


Wireless Functions Multiple SSIDs （Up to 8 SSIDs）


Enable/Disable Wireless Radio


Automatic Channel Assignment


Transmit Power Control （Adjust Transmit Power on dBm）


QoS(WMM)


Rate Limit


Reboot Schedule


Wireless Schedule


Wireless Statistics based on SSID/AP/Client


Wireless Security Captive Portal Authentication


Access Control


Wireless Mac Address Filtering


Wireless Isolation Between Clients


SSID to VLAN Mapping


Rogue AP Detection


802.1X Support


64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK




Transmission Power Ce:



<20dBm




Fcc:



<26dBm


MANAGEMENT


EAP Controller Software Yes


Email Alerts Yes
