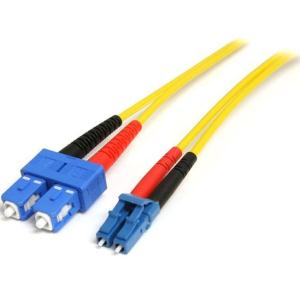

Startech Fiber Optic Cable - Single-Mode Duplex 9/125 - LSZH - LC/SC - 7 m SMFIBLCSC7

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

SMFIBLCSC7

Connect fiber network devices for high-speed transfers with LSZH rated cable

1x LC SM male connector
1x SC SM male connector
OS1 (9/125)
LSZH (Low-Smoke, Zero-Halogen) cable jacket

The SMFIBLCSC7 7m LC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.

This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

The StarTech.com Advantage

Suitable for installations under restrictive building codes, with LSZH rating
Guaranteed reliability

Applications

Use in Gigabit Ethernet and Fiber Channel applications
Ideal solution for data applications requiring high speed data transmission
Broadband systems
Telecommunication/Data communication
Fiber Connections in Patch Panels, Hubs, Switches, Routers

Warranty Information
Warranty	Lifetime
Hardware
Fiber Size	9/125
Fire Rating	LSZH Rated (Low Smoke Zero Halogen)
Performance
Fiber Classification	OS1
Fiber Type	Single Mode
Connector(s)
Connector A	1 - Fiber Optic LC Duplex Male
Connector B	1 - Fiber Optic SC Duplex Male
Physical Characteristics
Cable Length	23 ft [7 m]
Color	Yellow
Product Length	23 ft [7 m]
Product Weight	3.5 oz [99 g]
Packaging Information
Package Quantity	1
Shipping (Package) Weight	3.9 oz [110 g]
What's in the Box
Included in Package	1 - 7m Single Mode Duplex Fiber Patch Cable LC-SC

7m Single Mode Duplex Fiber Patch Cable - LC to SC OS1 Single Mode 9/125 Duplex LSZH Fiber Patch Cord - Yellow 7 meter

Brand Name: StarTech.com

Cable Length: 7 m

Cable Type: Fibre Optic

Colour: Yellow

Connector on First End: 2 x LC Male Network

Connector on Second End: 2 x SC Male Network

Packaged Quantity: 1

Product Type: Network Cable

Basic
Brand Name:	StarTech.com
Cable Length:	7 m
Cable Type:	Fibre Optic
Colour:	Yellow
Connector on First End:	2 x LC Male Network
Connector on Second End:	2 x SC Male Network
Packaged Quantity:	1
Product Type:	Network Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	SMFIBLCSC7
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	7m Single Mode Duplex Fiber Patch Cable LC-SC
Product Type:	Network Cable

Physical Characteristics
Colour:	Yellow
Weight (Approximate):	99.2 g

Technical Information
Cable Characteristic:	Patch Cable
Cable Length:	7 m
Cable Type:	Fibre Optic
Connector on First End:	2 x LC Male Network
Connector on Second End:	2 x SC Male Network
Core/Cladding Diameter:	9/125 µm
Device Supported:	Network Device
Features:	Corrosion Resistant
	Flame Retardant
Fiber Optic Mode:	Single-mode
Jacket Type:	LSZH

Information

SKU/Item No 537751

Vendor Part No SMFIBLCSC7

UPC/EAN Number 065030853095
