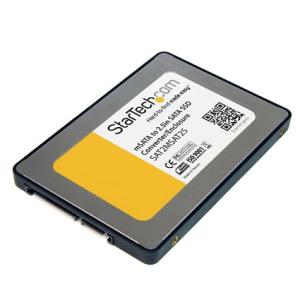

Startech convert an mSATA mini-SSD into a Standard 2.5in SATA SSD Adapter Enclosure SAT2MSAT25

SAT2MSAT25

•
  Supports full length mSATA (Mini SATA) form factor Solid State Drives

•
  2.5in SATA form factor housing

•
  Completely pass-through design for SATA data/power

• •
    Durable aluminum and plastic construction

  •
    Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)

  •
    The SAT2MSAT25 2.5in SATA to Mini SATA SSD Adapter Enclosure turns an mSATA (Mini SATA) mini-SSD into a standard 2.5in SATA SSD for use anywhere a 2.5in SATA drive can be used.


    To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller.


    Featuring all of the standard mounting points that a normal 2.5in hard drive uses, the converter can be installed into External Hard Drive Enclosures, Hard Drive Docking Stations or into desktop or laptop computers. The enclosure also features a unique design that enables seamless data pass-through with no conversion bottlenecks, enabling the mSATA drive to work as fast as it's allowed by the host system/interface.


    Constructed from aluminum and plastic, this converter is backed by a StarTech.com 2-year warranty and free lifetime technical support.


    The StarTech.com Advantage

    • Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller
    • Fits virtually any full-length mSATA Solid State Drive into an housing that is identical to a standard 2.5in SATA drive
    • A completely pass-through design allows for the mSATA drive to operate at full capacity without any conversion bottleneck

    • Warranty Information
      Warranty	2 Years
      Hardware
      Compatible Drive Types	mSATA (Mini SATA)
      Drive Installation	Fixed
      Interface	SATA
      Number of Drives	1
      Connector(s)
      Drive Connectors	1 - mSATA (52 pin, Mini SATA) Slot Female
      Host Connectors	1 - SATA Data & Power Combo (7+15 pin) Plug
      Software
      OS Compatibility	OS independent; No software or drivers required
      Environmental
      Humidity	5% ~ 95% RH
      Operating Temperature	0°C to 50°C (32°F to 122°F)
      Storage Temperature	-10°C to 85°C (14°F to 185°F)
      Physical Characteristics
      Color	Silver
      Enclosure Type	Aluminum and Plastic
      Product Height	0.3 in [8.1 mm]
      Product Length	3.9 in [100 mm]
      Product Weight	1.8 oz [50 g]
      Product Width	2.8 in [70 mm]
      Packaging Information
      Shipping (Package) Weight	3.2 oz [90 g]
      What's in the Box
      Included in Package	1 - mSATA to 2.5in SATA converter
      	2 - Mounting Screws
      	1 - Instruction Manual




2.5in SATA to Mini SATA SSD Adapter Enclosure - Mini PCIe SSD Adapter - SATA to mSATA - Mini PCIe SATA
