Eaton 5SC 500VA / 350W Mini Tower UPS, 5SC500i

Features

Click to view full size

information time management output manufacturer

Click to view full size

Click to view full size

Click to view full size

5sc500i load eaton capacity voltage image 2

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Eaton's MPN:

5SC500i

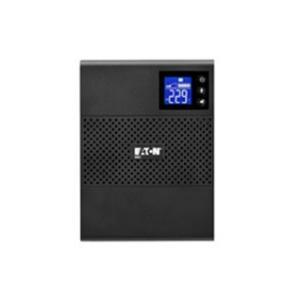

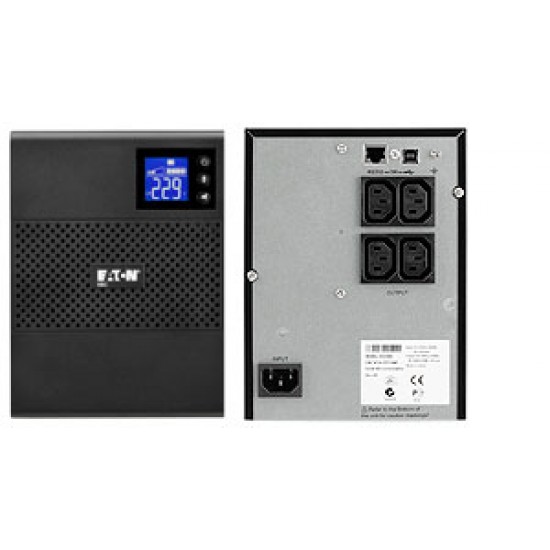

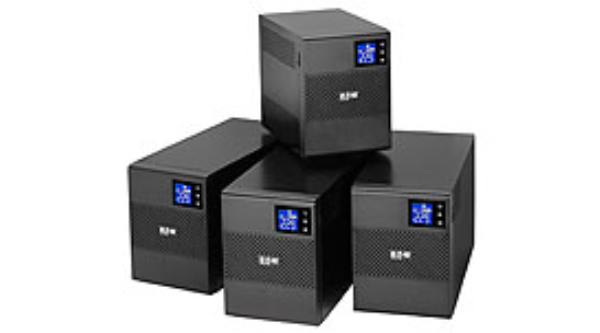

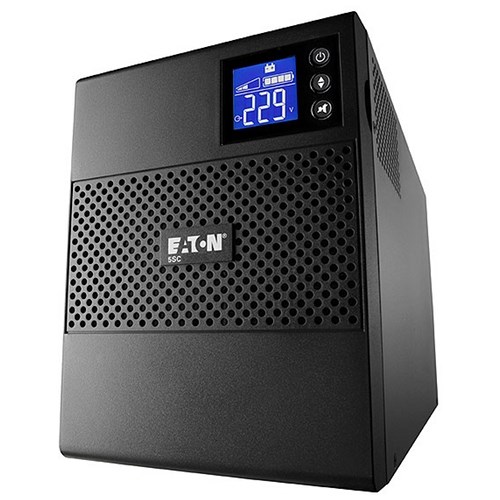

Eaton 5SC 500VA / 350W Mini Tower UPS 4 x IEC Sockets

Backup/Run Time (Full Load): 5 Minute

Backup/Run Time (Half Load): 13 Minute

Brand Name: Eaton

Form Factor: Tower

Load Capacity (VA): 500 VA

Load Capacity (Watt): 350 W

Product Family: 5SC

Product Type: Line-interactive UPS

Receptacles: 4 x IEC 60320 C13

Battery Information
Backup/Run Time (Full Load):	5 Minute
Backup/Run Time (Half Load):	13 Minute

Environmental Conditions
Temperature:	35°C

General Information
Brand Name:	Eaton
Manufacturer Part Number:	5SC500I
Manufacturer Website Address:	http://www.eaton.com
Manufacturer:	Eaton Corporation
Marketing Information:	Affordable and reliable protection for small business servers Easily manageable UPS The new LCD interface provides clear status of the UPS key parameters such as input and output voltage, load and battery level, and estimated runtime. Configuration capabilities are also offered for output voltage, audible alarm and sensitivity. The 5SC offers USB, serial, and relay connectivity. USB port is HID compliant for automatic integration into Windows, Mac OS and Linux. Eaton Intelligent Power Protector ® (IPP) software delivered as standard, can be used as point to point power management (USB/Serial) or Network based using IPP as a proxy.
Product Name:	5SC UPS
Product Series:	5SC
Product Type:	Line-interactive UPS

Interfaces/Ports
Serial Port:	Yes
USB:	Yes

Management
Battery Management:	ABM Technology

Miscellaneous
Certifications & Standards:	IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 CE CB report (TUV)

Physical Characteristics
Colour:	Black
Depth:	240 mm
Form Factor:	Tower
Height:	210 mm
Weight (Approximate):	6.60 kg
Width:	150 mm

Power Description
Input Voltage:	276 V AC
Load Capacity (Va):	500 VA
Load Capacity (Watt):	350 W
Output Voltage:	230 V AC

Technical Information
Plug/Connector Type:	IEC 60320 C14
Receptacles:	4 x IEC 60320 C13

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 442847

Vendor Part No 5SC500I

UPC/EAN Number 743172045140
