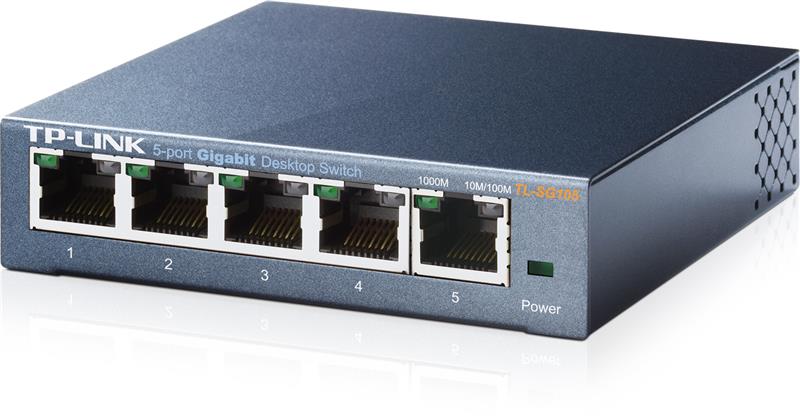

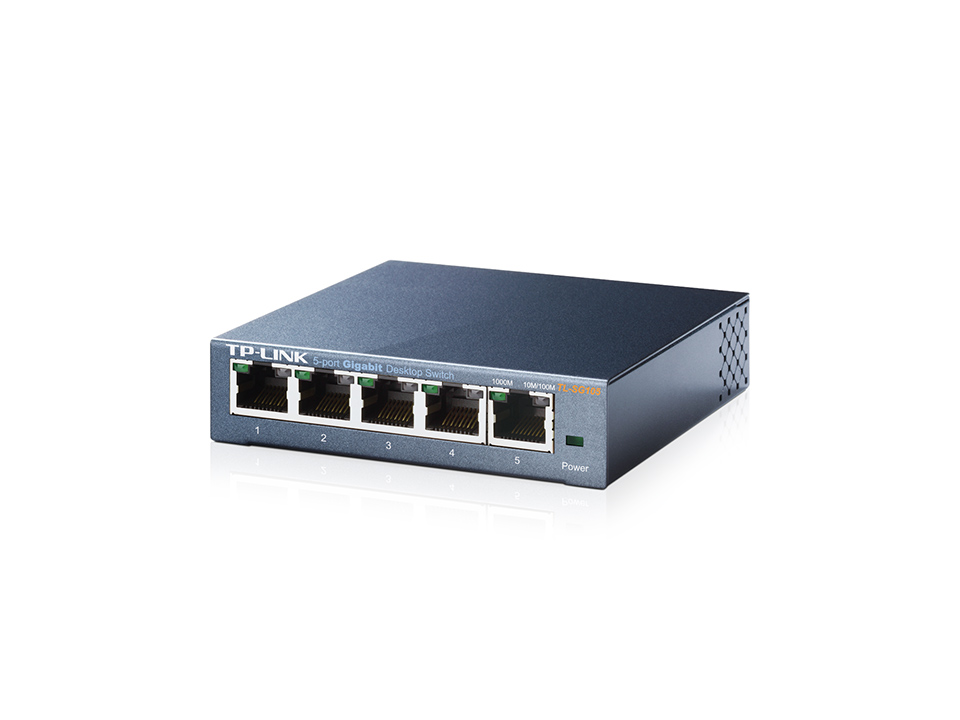

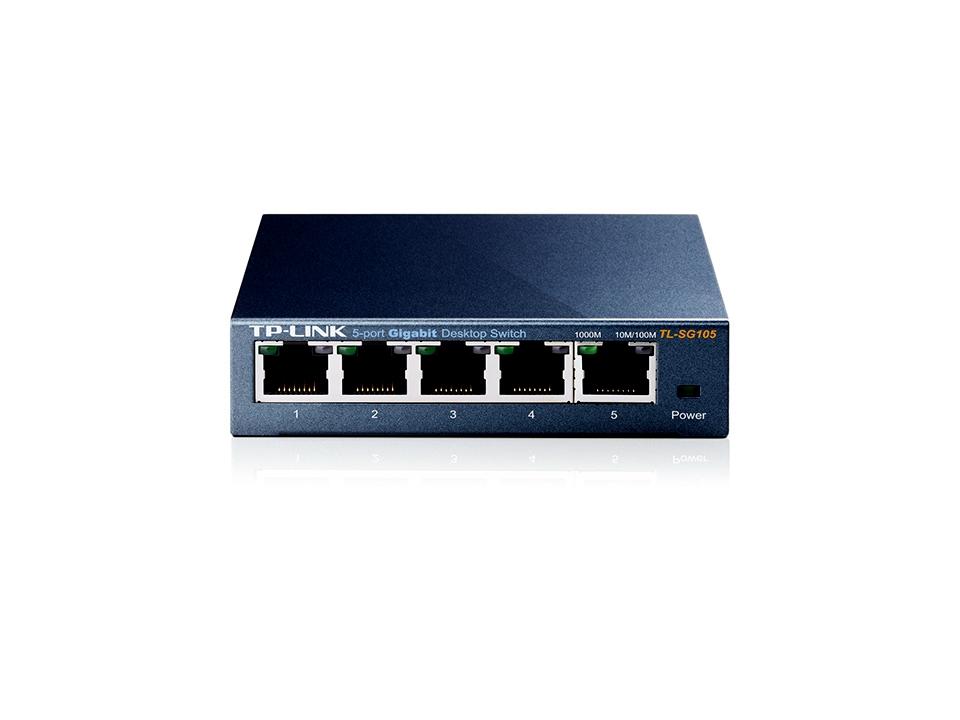

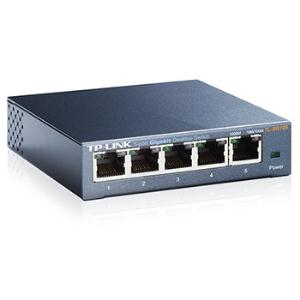

TP-LINK TL-SG105 Steel housing 5-Port 100/1000Mbps Desktop Switch

TL-SG105

Details:

The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 84% of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 5 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

• Power down Idle Ports
  When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 65% reduction in power use.
• Power Budget According to Cable Length
  Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

* Maximum power savings when compared to a TP-LINK conventional switch, the real saving rate may vary based on the usage condition.

Specifications:

HARDWARE FEATURES

• Standards and Protocols:
• IEEE 802.3 / 802.3u / 802.3ab / 802.3x
• CSMA / CD
• Interface: 5 x 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• External Power Supply: 100-240VAC, 50/60Hz
• Dimensions (WxDxH): 3.9 x 3.9 x 1.0in. (99.8 x 98 x 25mm)
• Fan Quantity: Fanless
• LED Indicator:
• System Power
• Link, Speed and activity indicators per port built into each RJ-45 port

SOFTWARE FEATURES

• Advanced Features:
• Green Technology, saving power up to 84%
• 802.3X Flow Control, supports QoS (IEEE802.1P), IGMP Snooping function
• Transfer Method: Store and Forward

OTHERS

• Certification: CE, FCC, RoHS
• Package Contents:
• 5-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• User Guide
• System Requirements:
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7
• Mac® OS, NetWare®, UNIX® or Linux
• Environment:
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing
