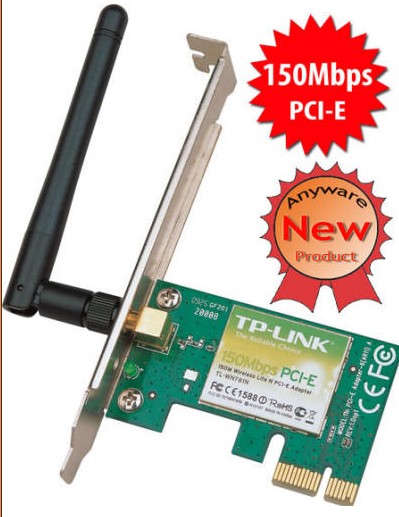

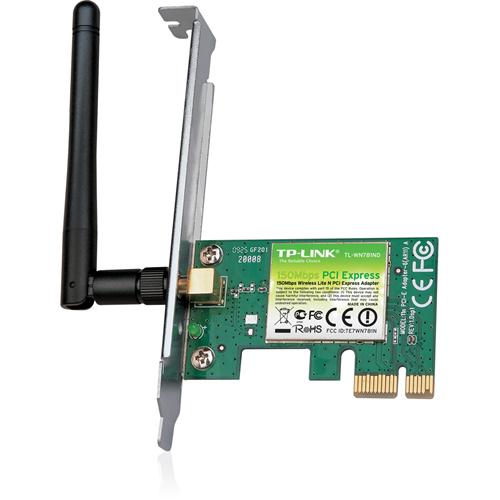

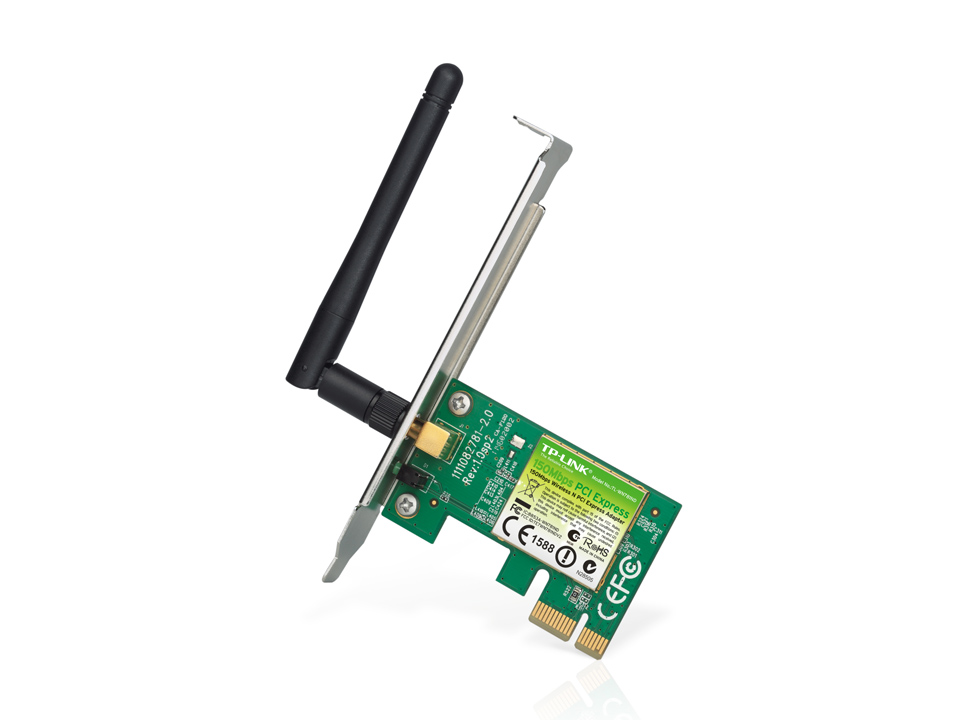

TP-LINK 150M Lite-N Wireless PCI Express Adapter , works with 802.11n/g/b (TL-WN781ND)

TL-WN781ND

Description:

What This Product Does

The TL-WN781ND is designed to provide complete end-to-end wireless performance from the server, or server backbone, to the switch infrastructure and down through to the desktop with the PCI Express connector. TL-WN781ND Wireless N PCI Express (x1) Adapter provides wider compatibility, fitting with any standard PCI Express slot (x1, x2, x8, or x16). Compared with standard PCI network cards, it offers increased bandwidth, reliability and more functionality, allowing you to enjoy a fast and advanced connection.

Wireless N -Speed & Range

Complying with IEEE 802.11n standards, TL-WN781ND can easily establish a wireless network and get up to 9X the speed and 4X the range of conventional 11g products. Compared with legacy 54M products, TL-WN781ND delivers considerably enhanced Internet performance,

WPA / WPA2 Encryptions - Advanced Security

TL-WN781ND provides WPA/WPA2 encryptions that are created by the WI-FI Alliance industry group, preventing the wireless network from outside threats.

Quick Setup Security

Compatible with Wi-Fi Protected Setup™ (WPS), TL-WN781ND features the Quick Security Setup (QSS) function, which is ideal for creating a WPA encrypted connection to prevent outside intrusion, and meanwhile maximize the management resources. Not only is this faster than normal security setups but more convenient in that you don't need to remember a password!

Detachable Antenna

TL-WN781ND features an external antenna that can be rotated and adjusted in different directions to suit various environments. For even more demanding applications, the antenna can be replaced with alternative antennas to improve wireless coverage.

Features:

• Adopts Align™ technology, with transmit speed up to 150Mbps
• Provides PCI Express connector having a wider compatibility with any standard PCI Express slot
• Supports QSS function, complying with WPS for worry free wireless security
• Supports 64/128/152-bit WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X
• Supports roaming technology, guaranteeing uninterrupted wireless connection
• Supports Ad-Hoc/Infrastructure modes
• Seamlessly compatible with 802.11n/b/g devices
• Supports Windows 2000, Windows XP 32/64bit, Vista 32/64bitl

Specifications:

HARDWARE FEATURES:

Interface

PCI Express

Dimensions(WXDXH)

4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)

Antenna Type

Detachable Omni Directional

Antenna Gain

2dBi

WIRELESS FEATURES:

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.400-2.4835GHz

Signal Rate

11n: Up to 150Mbps(dynamic)


11G:
Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

EIRP

<20dBm(EIRP)

Receive Sensitivity

130M: -68dBm@10% PER


108M:
-68dBm@10% PER


54M:
-68dBm@10% PER


11M:
-85dBm@8% PER


6M:
-88dBm@10% PER

1M: -90dBm@8% PER

Wireless Modes

Ad-Hoc / Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,

Wireless MAC Filtering

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

OTHERS:

Certification

CE, FCC, RoHS

Package Contents

Wireless Adapter

Detachable Omni directional antenna

Resource CD

Quick Installation Guide

System Requirements

Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits), Windows 2000

Environment

Operating Temperature: 0?~40? (32?~104?)


Storage Temperature:
-40?~70? (-40?~158?)


Operating Humidity:
10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
