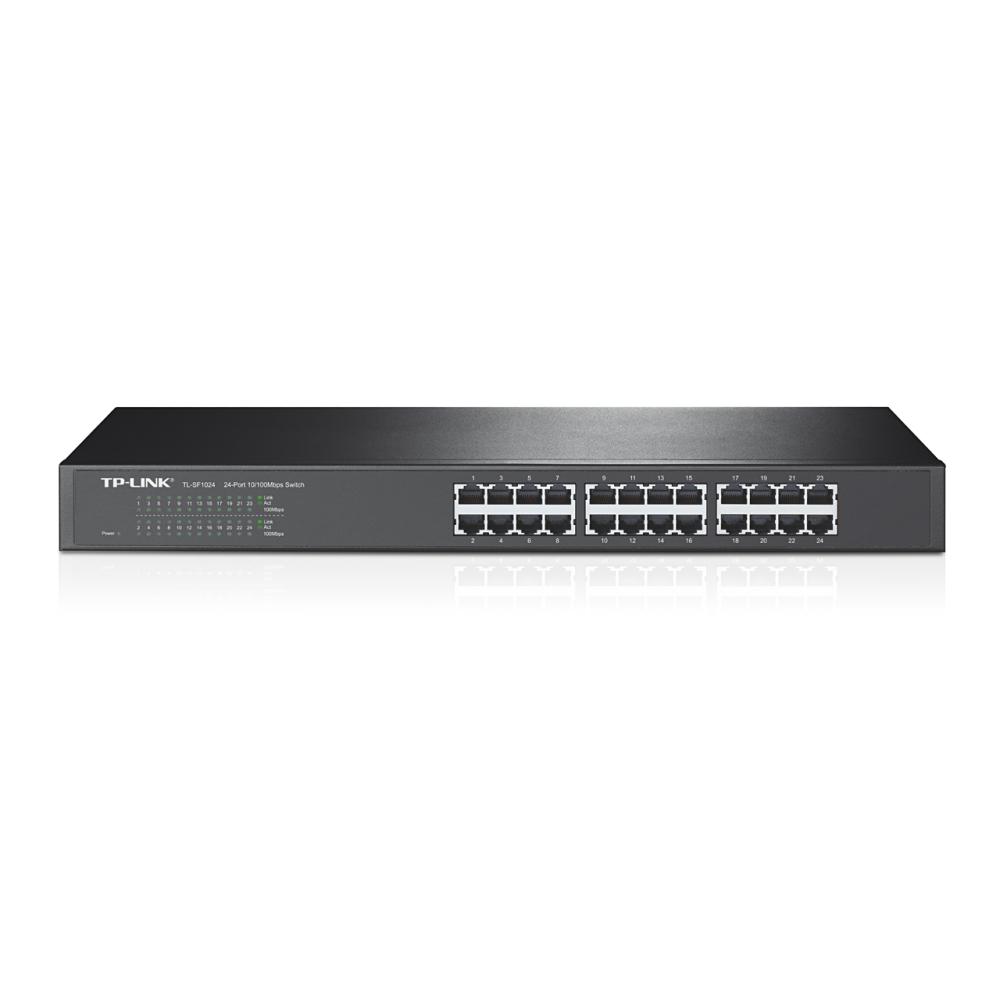

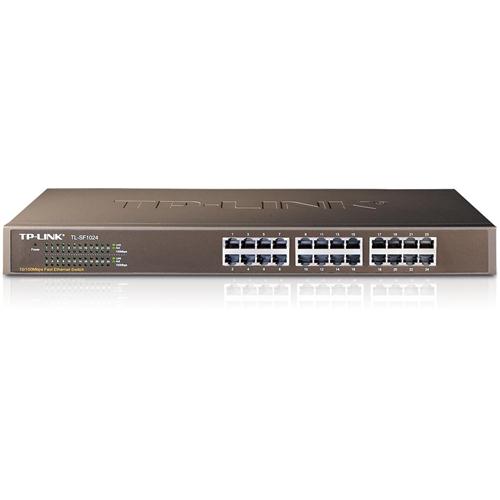

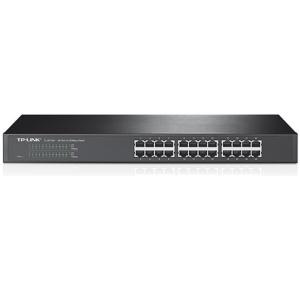

TP-LINK TL-SF1024, 24 Port Rack Mountable 10/100 Switch

TL-SF1024

Description:

What This Product Does

The TL-SF1024 24 Port Fast Ethernet Switch is designed to meet the connectivity requirements of even the most demanding workgroup or department. A reliable, easy-to-use switch without the complex hassles of management, the TL-SF1024 provides 24 10/100Mbps ports. The TL-SF1024 combines ease of use with unsurpassed performance resulting in exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.

Ease of Use

The auto features of this gigabit switch make installation completely hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space but is also rack-mountable, making it both convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Superior Performance

The rack-mount size metal case design combined with a safety certified internal power supply make the TL-SF1024 a highly robust and cost-effective product for less than 24 users. Featuring non-blocking switching architecture, TL-SF1024 forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large file transfers is improved significantly.

Features:

• Innovative energy-efficient technology saves power up to 40%
• 100% Data filtering rate eliminates all error packets
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
• 4.8Gbps Switching Capacity
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Support the port N-Way Auto-Negotiation, Store and Forward
• Compact size design for desktops, Rackmountable
• Plug and Play design simplifies installation

Specifications:

HARDWARE FEATURES:

Interface

24 10/100Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

External Power Supply

100-240VAC, 50/60Hz

Dimensions ( W x D x H )

17.3*7.2*1.7 in. (440*360*44 mm)

SOFTWARE FEATURES:

Transfer Method

Store and Forward

MAC Address Table

8K

Advanced Functions

802.3X Flow Control, Back Pressure

Auto-Uplink Every Port

OTHERS:

Certification

FCC, CE, RoHS

Package Contents

TL-SF1024

Power Cord

User Guide

Environment

Operating Temperature: 0?~40? (32?~104?);

Storage Temperature: -40?~70? (-40?~158?);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
