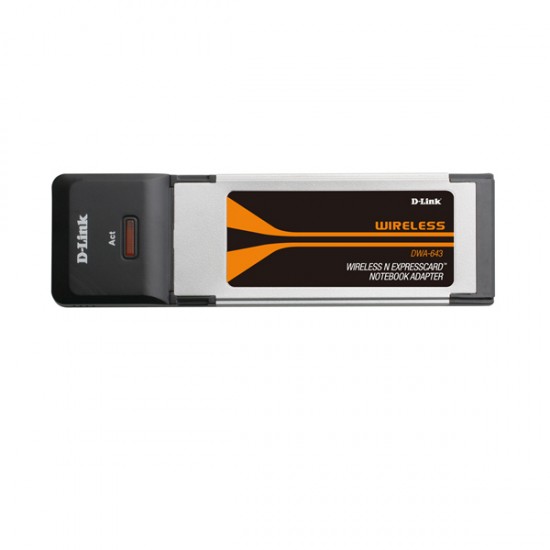

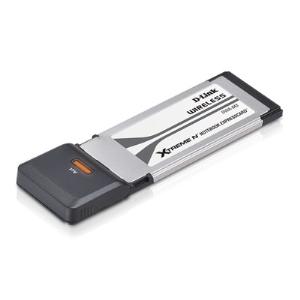

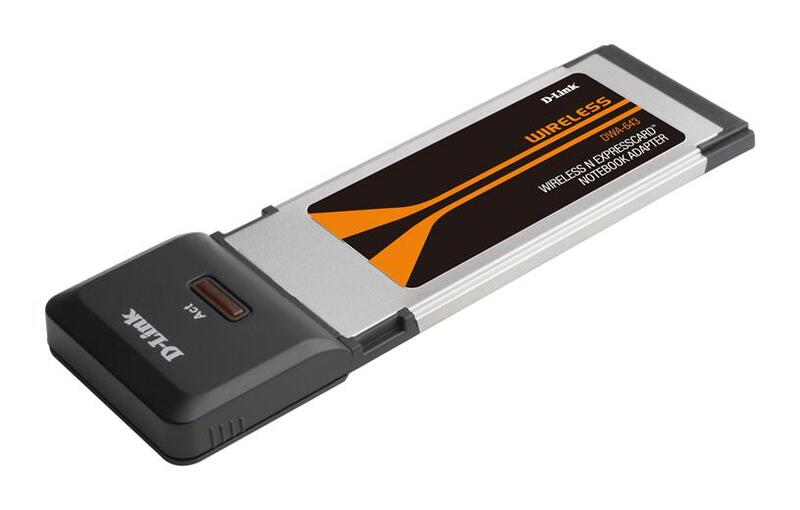

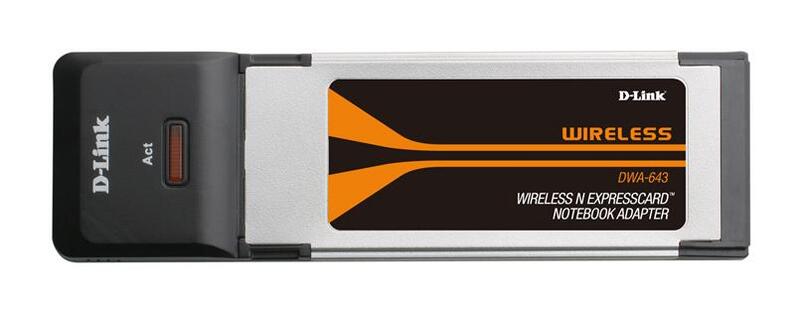

D-Link Xtreme N Wireless Notebook ExpressCard, DWA-643

D-Link's MPN:

DWA-643

XTREME N WIRELESS LAN PCI NOTEBOOK
EXPRESSCARD ADAPTER 802.11N (DRAFT),DOWNWARD
COMPATIBLE WITH 802.11G, 2.4GHZ,WEP,WPA & WPA2
REQUIRES NOTEBOOK WITH EXPRESSCARD SLOT

Host Interface: ExpressCard/34

Standards: IEEE 802.11n (draft); IEEE 802.11g ; IEEE 802.11b

Freq Range:
2412 to 2462MHz (North America)
2412 to 2472MHz (General Europe)

Data Rates: 802.11g: 6/9/12/18/24/36/48/54Mbps; 802.11b: 1/2/5.5/11Mbps

802.11N: 30/60/90/120/180/240/270/300Mbps

Emission Schemes: DSSS, OFDM

Transmit Output Power (Typical): 17dBm (typical)

Security: 64/128bit WEP data encryption; Wi-Fi Protected Access(WPA,WPA2)

Operating Voltage: 3.3 VDC +/- 10%

Dimensions: 112 x 33.4 x 8 mm

O.s. Support: Windows 2000, XP, Vista

System Requirements:
Computer with: Win XP or Win2000 2 ; CD-ROM;
20MB Hard Disk Space; ExpressCard Slot
• Delivers up to 14x faster speeds and 6x farther range than 802.11g*
• Xtreme N technology enables HD video streaming, file sharing, enhanced
Internet phone calling (VoIP), and surfing the Web
• Access secure wireless networks using advanced WEP, WPA, or WPA2 encrypti
• Easy to install and use with D-Links new Quick Adapter Setup Wizard
• Backward compatible with existing 802.11g and 802.11b networks
• Up to 236% faster than legacy CardBus**
• Approximately half the size and weight of a standard CardBus adapter
• Provides superior performance, better reliability,& expansion flexibility
over CardBus
