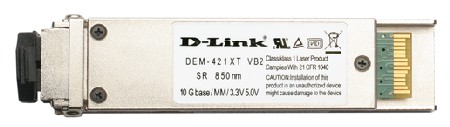

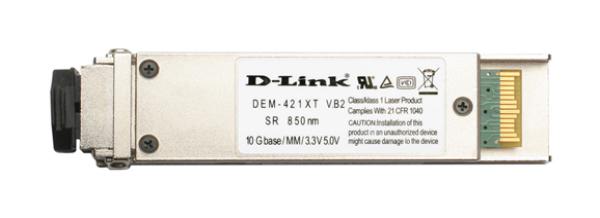

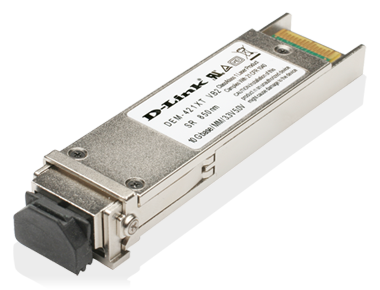

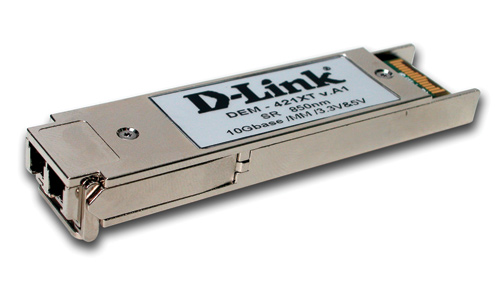

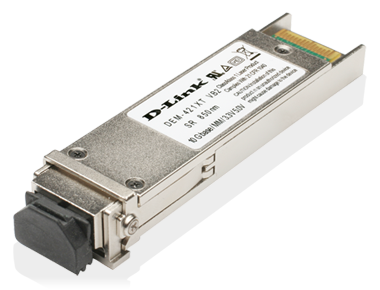

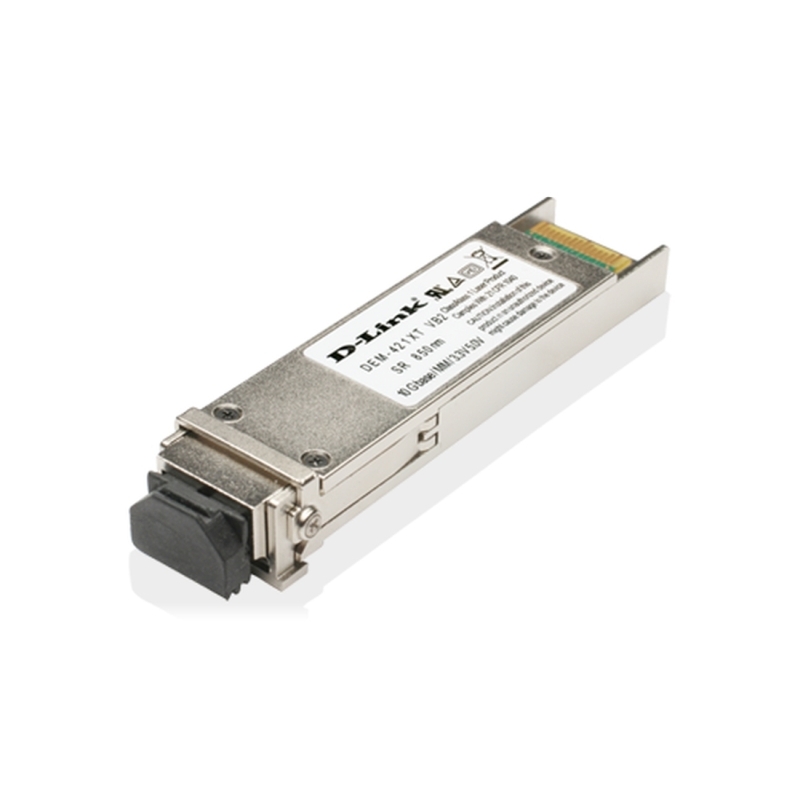

D-Link DEM-421XT 10GBASE-SR Xfp Transceiver (MULTIMODE 850NM)

Designed to support distances up to 300 meters, the DEM-421XT is a high performance 850nm Multi-Mode XFP transceiver. Supporting Full-duplex, 10Gigabit speeds on Multi-Mode fiber cables.The DEM-421XT provides the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa. The DEM-421XT is hot swappable. You can remove or replace the transceiver with the system powered on. This permits modules and transceivers to be added or swapped without interrupting network systems.

• Wavelength: 50nm Multimode
• Supports Full-Duplex 802.3x Flow Control
• 15kV air discharge and 8 kV contact discharge to the faceplate

Cabling Specifications:

• 62.5 microns: Modal Bandwidth: 160 MHz/km, 26 meters
• 62.5 microns: Modal Bandwidth: 200 MHz/km, 33 meters
• 50.0 microns: Modal Bandwidth: 400 MHz/km, 66 meters
• 50.0 microns: Modal Bandwidth: 500 MHz/km, 82 meters
• 50.0 microns: Modal Bandwidth: 2000 MHz/km, 300 meters
