Asus's MPN:
90AR00Q2-M001D0
ASUS NUC 15 PRO, Cyber Canyon, Intel Arrow Lake-H, RPL-R 45W (C7 240H), Integrated GPU, Kit (L6), Tall, AU Cord included
AI-Enabled Mini PC Powered by Intel® Core™ Ultra processors (Series 2). Designed as the best compact choice for the AI-driven future.
Powered by Intel® Core™ Ultra processors (Series 2), delivering up to 99 Platform TOPS and an 18% boost in performance gen-on-gen.
Supports up to 96GB dual-channel DDR5-6400 memory for seamless multitasking and high-speed workloads.
Features Intel® Arc™ Graphics for AI acceleration and stunning visual performance, with Intel® vPro® for enterprise-grade security and management.
Includes PCIe Gen5 NVMe SSD and Gen4 expansion slots for ultra-fast storage and flexibility.
Connects up to four 4K displays via dual HDMI 2.1 and Thunderbolt™ 4 with DisplayPort 2.1 and USB4 compatibility.
Offers advanced connectivity with Intel® Wi-Fi 7, Bluetooth® 5.4, and multiple high-speed USB 3.2 Gen2 ports.
Compact 0.48L design with tool-less chassis enables quick upgrades and effortless deployment.
Built for reliability with MIL-STD-810H certification, efficient cooling, and eco-friendly packaging for sustainability.
Technical Specifications
Specifications
Card Reader
|
|
Dimensions
|
117mm x 112mm x 54mm
|
Drive Bay
|
Support:
128GB~8TB M.2 2280 NVMe™ PCIe® 5.0 x 4 SSD (Core Ultra Series CPU) or 128GB~8TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD (Core Series CPU)+ 128GB~2TB M.2 2242 NVMe™ PCIe® 4.0 x 4 SSD
|
Expansion Slot
|
|
Front/Rear Ports
|

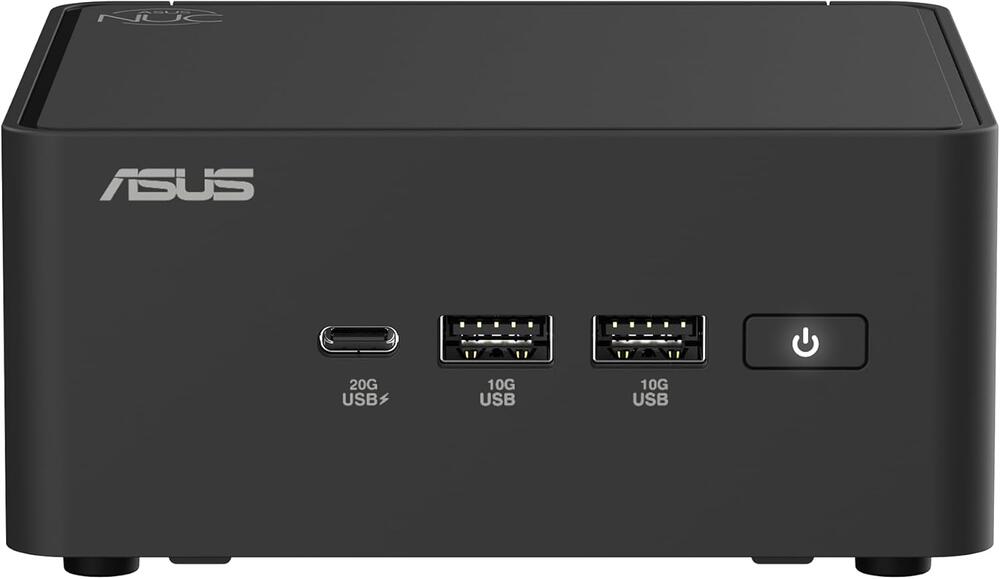

Front:
1 x USB 3.2 Gen2x2 Type-C 2 x USB 3.2 Gen2 Type-A 1 x Kensington Lock (Side); REAR: 2 x HDMI 2.1 TMDS Compatible (4K@60Hz) 2 x Thunderbolt™ 4 ports (incl. DP 2.1 and USB4) 1 x USB 3.2 Gen2 Type-A 1 x USB 2.0 Type-A 1 x RJ45 LAN 1 x DC-in
|
Graphics
|
Intel® Arc™ GPU (Core Ultra) Intel® Graphics *Intel® Arc™ GPU requires using 2 x SO-DIMM
|
LAN
|
Intel® Ethernet Controller I226-LM, 2.5G
|
Memory
|
Max Capacity:
48GB DDR5-5600 SO-DIMM x 2 or 48GB DDR5-6400 CSO-DIMM x 2
|
Operating System
|
|
Power Supply
|
19VDC, 6.32A, 120W Power Adapter (Core Ultra 5/7)
|
Processor
|
Intel® Core™ 7 Processor 240H, cTDP 25W
|
Product Family
|
ASUS NUC 15 Pro
|
Product Type
|
NUC
|
Storage Capacity
|
No storage included at shipment
|
Storage Type
|
Support:
128GB~8TB M.2 2280 NVMe™ PCIe® 5.0 x 4 SSD (Core Ultra Series CPU) or 128GB~8TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD (Core Series CPU)+ 128GB~2TB M.2 2242 NVMe™ PCIe® 4.0 x 4 SSD
|
Warranty
|
3YR WARRANTY
|
Weight
|
0.8
|
Wireless & Bluetooth
|
Intel® Wi-Fi 7 BE201, vPro®, Bluetooth 5.4
|
