Aten/Altusen's MPN:
UH3235-AT

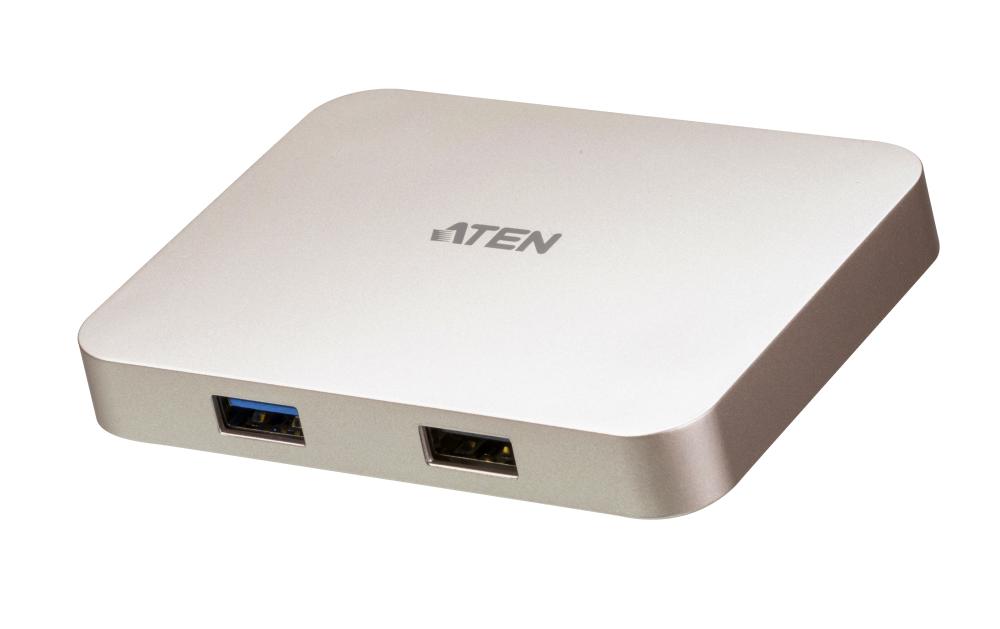

USB-C 4K Ultra Mini Dock with Power Pass-through (60 watts), Connectors: 1xUSB-C DC-in, 1xUSB-C, 1xUSB 2.0 Type A, 1xUSB 3.2 Gen 1 Type A, 1xHDMI
The UH3235 is a 4-in-1 multifunctional USB-C mini dock that features a USB 2.0 Type-A, USB 3.2 Gen 1 Type-A, HDMI and a USB-C DC-in port. With its wide range of compatibility, the UH3235 can support different operation systems such as PC, Mac, iPad Pro, Android Smartphone, and USB-C game console.
The HDMI supports up to 4K (3840 x 2160 @ 30 Hz) crystal clear video output that will bring users a higher level of enjoyment from watching videos, playing video games, or working from home. The UH3235 also supports USB-C Power Delivery Pass-Through up to 60W, which means it can provide power to your device via a USB-C PD power adapter with the PD profile specifications of 5V, 9V, 15V, 20V.
In addition, the integrated USB 3.2 Gen 1 Type-A port supports data transfer rate up to 5Gbps, giving seamless access to USB flash drive. The USB 2.0 Type-A port is for keyboard/mouse connection and can also avoid signal interference.
With highly portable and lightweight design, users can bring UH3235 anywhere and maintain necessary connection capability with just one cable. This is a perfect solution to maximize the functionality for your smart device.
Technical Specifications
Specifications
Compatible/Used for
|
|
Product Type
|
USB-C Ultra 4K Gaming Mini Dock
|
Warranty
|
2 Years
|
Compatible Size
|
Ideal for Nintendo Switch
|
Power Consumption
|
5VBTU, 7.5WBTU
|
Video Resolution
|
3840 x 2160@30hz
|
Connectors
Computer
|
1 x USB-C Female (Black)
|
Device
|
1 x USB 2.0 Type A Female (Black), 1 x USB 3.2 Gen 1 Type A Female (Blue)
|
Power
|
1 x USB-C DC-in Female
|
Video Output
|
1 x HDMI Female (Black)
|
Environmental
Humidity
|
0–80% RH, Non-condensing
|
Operating Temperature
|
0–40°C
|
Storage Temperature
|
-20–60°C
|
Physical Properties
Dimensions (L x W x H)
|
9.30 x 7.00 x 1.50 cm (3.66 x 2.76 x 0.59 in.)
|
Housing
|
Plastic
|
Weight
|
0.05 kg ( 0.11 lb )
|
