HP's MPN:
9H083PT
HP Z4 G5, XEON W3-2423, 32GB, 512GB SSD + 1TB HDD, NVIDIA T1000 8GB, W11P64, 3YR (replaces 8C286PA)

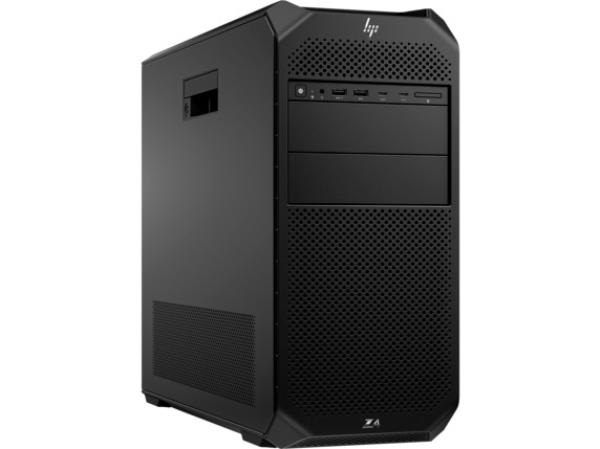

HP Z4 G5 Workstation PC
This high-performance desktop workstation does it all. Tackle advanced workflows—from rendering and simulation to advanced video editing and massive dataset preparation. The Z4 G5 accelerates workflows across a wide range of professional apps and provides plenty of room to expand as work evolves.
Professional performance. Whisper quiet acoustics
Render, simulate or analyze faster with high-end GPUs, an Intel® Xeon® CPU, and impressive memory and storage.
Upgrade and expand with ease
Evolve your PC with space for high-end GPUs, loads of memory and storage, plus front-accessible NVMe drives.
Comprehensive security. Reliability you can trust
Trust the 360K hours of testing, certifications for pro apps, and world-class HP Wolf Security for Business.
Maximize your IT lifecycle
Designed for simpler IT management, the Z4 is built for longevity with a 3 year lifecycle—longer than entry workstations. Plan for the future and avoid re-qualifying devices every year, saving you serious time and money.
Technical Specifications
Specifications
Card Reader
|
SD Card Reader
|
Dimensions
|
386mm x 169mm x 445mm
|
Drive Bay
|
One 3.5"; Four PCIe® M.2 SSD; Three 3.5" HDD (Internal); Two NVMe™ M.2 SSD; Two 3.5" HDD; Two 9.5 mm ODD (External)
|
Expansion Slot
|
1 PCIe 5 x16; 2 PCIe 4 x16; 2 PCIe 4 x4
|
Form Factor
|
Tower
|
Front/Rear Ports
|
Front I/O Entry:
4 SuperSpeed USB Type-A 5 Gbps signaling rate [leftmost Type-A ports supports BC1.2 (Battery Charging)]
|
Graphics
|
NVIDIA T1000 8 GB 4mDP Graphics
|
LAN
|
1 RJ-45 Integrated LAN Port (1GbE AMT)
|
Memory
|
32GB (2x16GB) DDR5 4800 DIMM ECC REG 1CPU Memory
|
Operating System
|
Windows 11 Pro
|
Optical Drive
|
No Included ODD
|
Power Supply
|
775W EPA90 Power Supply
|
Processor
|
Intel® Xeon® W3-2423 (up to 4.0 GHz with Intel® Turbo Boost Technology, 15 MB L3 cache, 6 cores, 12 threads)
|
Product Family
|
HP
|
Storage Capacity
|
Z Turbo 512GB PCIe-4x4 2280 TLC M.2 Solid State Drive + 1TB 7200RPM SATA 3.5in Enterprise
|
Storage Type
|
Z Turbo 512GB PCIe-4x4 2280 TLC M.2 Solid State Drive + 1TB 7200RPM SATA 3.5in Enterprise
|
Warranty
|
HP 3 year Care Onsite
|
Weight
|
Starting at 10.5 kg
|
Wireless
|
No
|
