UD1300GM PG5/Fully modular/850W/ATX v3.0/150 x 160 x 86 mm/Gold 80PLUS/Support PCIe Gen 5.0 GP-UD1300GM PG5

Features

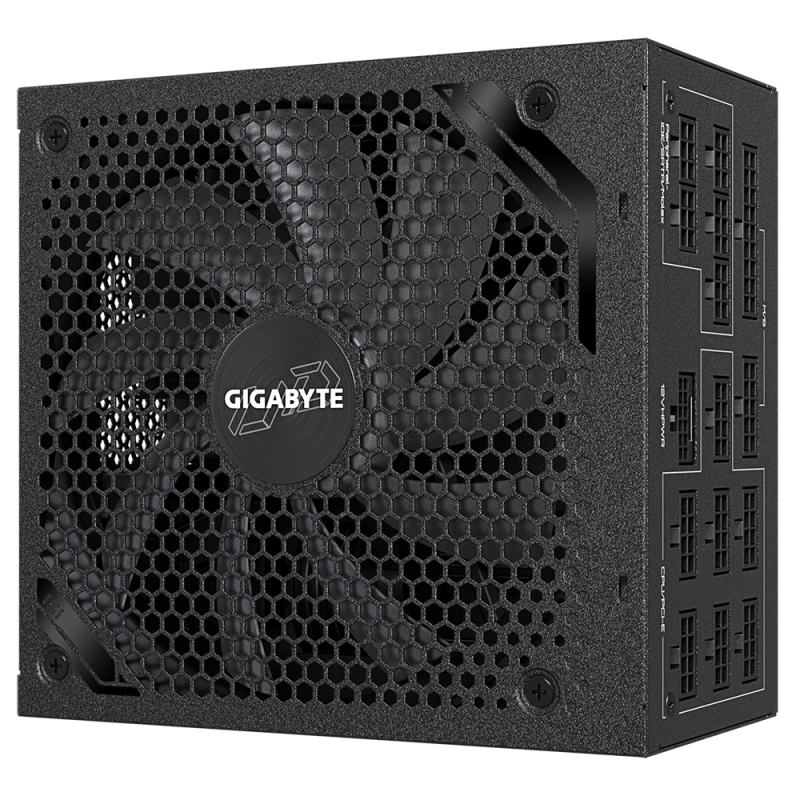

gp-ud1300gm pg5 150mm gold power type
Click to view full size

(Pictures are For Illustration Purposes Only)

Gigabyte

Gigabyte's MPN:

GP-UD1300GM PG5




UD1300GM PG5/Fully modular/850W/ATX v3.0/150 x 160 x 86 mm/Gold 80PLUS/Support PCIe Gen 5.0


KEY FEATURE

  • Ultra Durable
    •  Main Japanese capacitors
    •  Enhanced thermal solution
    •  140mm smart hydraulic bearing (HYB) fan
    •  OVP/OPP/SCP/UVP/OCP/OTP protection
  • Support PCIe Gen 5.0 graphics card
  • Support Intel ATX 3.0 standard
  • 80 PLUS Gold certified
  • Fully modular design
  • Compact size
  • 10 years warranty (Adjusted according to different regions)

Technical Specifications

Specifications

Product Type
80 PLUS Gold Power Supply

Warranty
10 Years

Weight

Cable Type
Flat, All black

Connectors

Atx/Mb 20+4 Pin X 1:
610mm*1, CPU/EPS 4+4 Pin x 2 : 650mm*2, PCIe 16 Pin x 1: 700mm*1, PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2, SATA x 12 : 650mm+150mm+150mm+150mm*3, 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2

Dimensions
150 x 160 x 86 mm

Efficiency
90% at typical load

Fan Type
140mm Hydraulic Bearing(HYB)fan

Hold Up Time
>16ms

Input Current
15-6.5A

Input Frequency
60-50 Hz

Input Voltage
100-240 Vac (full range)

MTBF
>100,000 hours

Output Capacity
1300W

Power Good Signal
100-150ms

Protection
OVP/OPP/SCP/UVP/OCP/OTP

Type
Intel Form Factor ATX 12V v3.0
