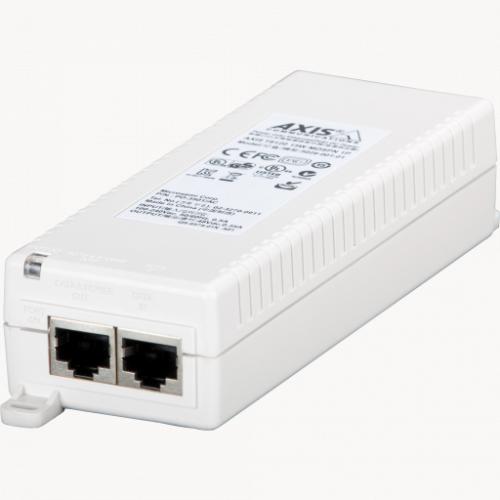

Axis T8120 15W Midspan 1-PORT 5026-206

Features

(Pictures are For Illustration Purposes Only)

Axis's MPN:

5026-206

Provides power over Ethernet to Axis network video products with built-in PoE support. AXIS T8120 is IEEE 802.3af compliant ensuring compatibility with all Axis PoE Class 1-3 products.

Brand Name: AXIS

Network Technology: 10/100Base-TX

Output Ports: 1

Product Type: PoE Injector

General Information
Brand Name:	AXIS
Manufacturer Part Number:	5026-206
Manufacturer Website Address:	http://www.axis.com
Manufacturer:	Axis Communications
Marketing Information:	Easier and faster installations Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling. No need for power outlets With the use of Axis PoE products, Axis network cameras and video encoders can receive both data and power over a single Ethernet cable. Network video products can thus be installed in areas where traditional power cabling and outlets are unavailable or difficult to install.
Product Model:	T8120
Product Name:	T8120 Midspan 15 W 1-port
Product Type:	PoE Injector

Interfaces/Ports
Input Ports:	1 x RJ-45 10/100Base-TX
Output Ports:	1 x RJ-45 10/100Base-TX

Miscellaneous
Certifications & Standards:	IEEE 802.3 IEEE 802.3af cUL/UL TUV CE FCC Part 15 Class B EN 55022 (CISPR 22) Class B
Compatibility:	Axis T90C20 IR Illuminator Axis Network Cameras: 212/-V PTZ 221 M1054 M11 Series P13 Q16 Q1755 Q1910/-E Q1921/-E Q1922/-E M50 Series P5512 P1343 P1343-E P1344-E P1346-E P1347-E P1353-E P1354-E P1355-E P1357-E Q1602-E Q1604-E Q1755-E P1343-E P1344-E P1346-E P1347-E P1353-E P1354-E P1355-E P1357-E Q1602-E Q1604-E Q1755-E M1011 M1013 M1014 M1011-W M1031-W Axis Video Encoders/Decoders: M7001 M7010 M7014 Q7401 Q7424-R P7210 P7214 P7701 P8221 Axis Video Servers: 240Q 241S 241Q 241QA 243SA

Miscellaneous

Certifications & Standards:

IEEE 802.3
IEEE 802.3af
cUL/UL
TUV
CE
FCC Part 15 Class B
EN 55022 (CISPR 22) Class B

Compatibility:

Axis T90C20 IR Illuminator

Axis Network Cameras:

212/-V PTZ
221
M1054
M11 Series
P13
Q16
Q1755
Q1910/-E
Q1921/-E
Q1922/-E
M50 Series
P5512
P1343
P1343-E
P1344-E
P1346-E
P1347-E
P1353-E
P1354-E
P1355-E
P1357-E
Q1602-E
Q1604-E
Q1755-E
P1343-E
P1344-E
P1346-E
P1347-E
P1353-E
P1354-E
P1355-E
P1357-E
Q1602-E
Q1604-E
Q1755-E
M1011
M1013
M1014
M1011-W
M1031-W

Axis Video Encoders/Decoders:

M7001
M7010
M7014
Q7401
Q7424-R
P7210
P7214
P7701
P8221

Axis Video Servers:

240Q
241S
241Q
241QA
243SA

Physical Characteristics
Depth:	139.7 mm
Form Factor:	Wall/Shelf-mountable
Height:	33 mm
Weight (Approximate):	453.6 g
Width:	53.3 mm

Power Description
Frequency:	47 Hz to 63 Hz
Input Current:	500 mA
Input Voltage:	120 V AC
	230 V AC
Output Power:	15 W
Output Voltage:	12 V DC

Technical Information
Compatibility:	Axis T90C20 IR Illuminator Axis Network Cameras: 212/-V PTZ 221 M1054 M11 Series P13 Q16 Q1755 Q1910/-E Q1921/-E Q1922/-E M50 Series P5512 P1343 P1343-E P1344-E P1346-E P1347-E P1353-E P1354-E P1355-E P1357-E Q1602-E Q1604-E Q1755-E P1343-E P1344-E P1346-E P1347-E P1353-E P1354-E P1355-E P1357-E Q1602-E Q1604-E Q1755-E M1011 M1013 M1014 M1011-W M1031-W Axis Video Encoders/Decoders: M7001 M7010 M7014 Q7401 Q7424-R P7210 P7214 P7701 P8221 Axis Video Servers: 240Q 241S 241Q 241QA 243SA
Input Voltage:	120 V AC
	230 V AC
Output Power:	15 W
Output Voltage:	12 V DC

Warranty
Limited Warranty:	3 Year

Information

SKU/Item No 643961

Vendor Part No 5026-206

UPC/EAN Number 7331021003422
