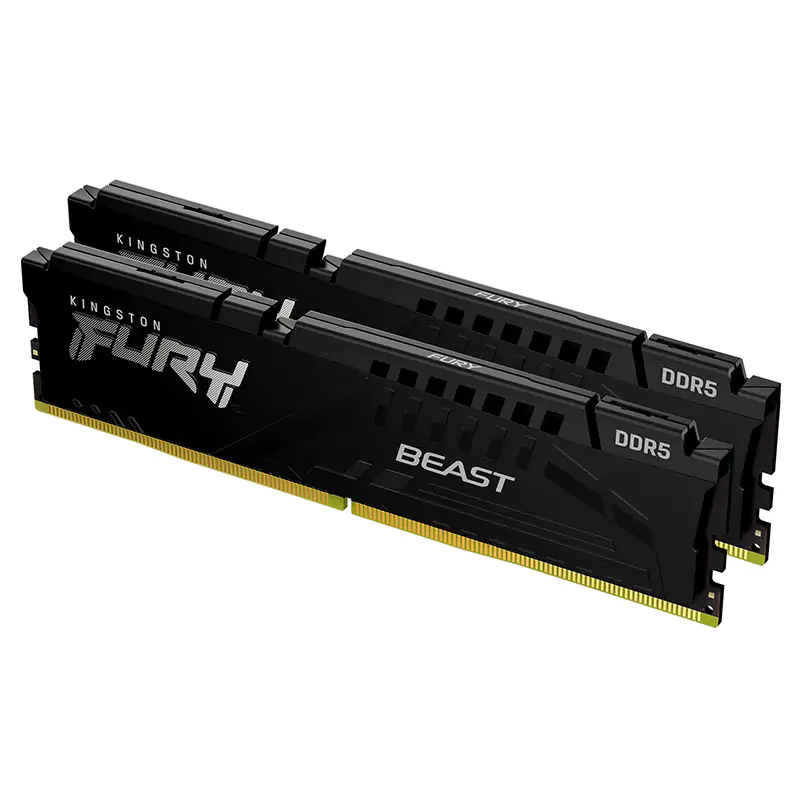

Kingston Fury Beast Black, DDR5, 16GB Kit (8GB X 2), 6000MHz, 288 Pin, DIMM, CL 36-38-38, 1.35V, Limited Lifetime Warranty KF560C36BBEK2-16

KF560C36BBEK2-16

FURY Beast Black, DDR5, 16GB Kit (8GB X 2), 6000MHz, 288 Pin, DIMM, CL 36-38-38, 1.35V, Limited Lifetime Warranty

16GB (2x8GB) DDR5 6000MT/s CL36 FURY Beast Black EXPO

Non-ECC Unbuffered DIMM (Kit of 2) 1RX16 36-38-38 1.35V 288-pin 16Gbit

Kingston FURY KF560C36BBEK2-16 is a kit of two 1G x 64-bit (8GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. Each module kit supports AMD® EXPO v1.0 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 16GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-38-38 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

• Power Supply:
VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.37” (34.9mm), w/heatsink
