Lenovo's MPN:
7D7QA01GAU

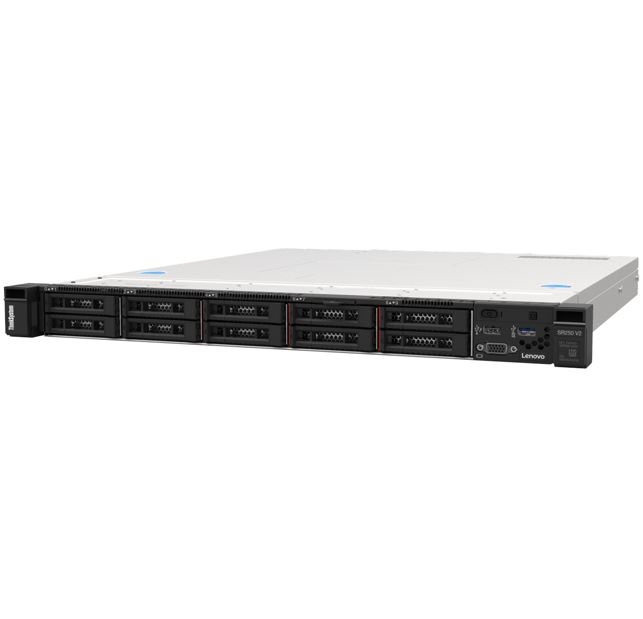

ThinkSystem SR250 V2, 1xIntel Xeon E-2356G 6C 3.2GHz 80W, 1x16GB 2Rx8, SW RD, 1x450W, XCC Enterprise
The Lenovo ThinkSystem SR250 V2 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports one Intel Xeon E-2300 Series processor (formerly codenamed "Rocket Lake") or Intel Pentium ("Comet Lake Refresh") and up to 128 GB of 3200 MHz TruDDR4 ECC memory.

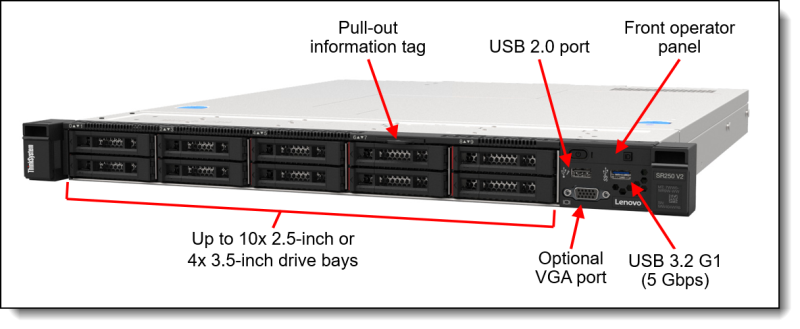

Flexible and scalable internal storage configurations include up to ten 2.5-inch or four 3.5-inch drives with affordable software RAID or advanced hardware RAID protection and a wide selection of drive sizes and types, including NVMe PCIe SSDs, SAS/SATA SSDs, and SAS/SATA HDDs. Also, it features integrated dual-port 1 Gb Ethernet NIC and additional PCIe expansion slots for hardware RAID protection, network scalability, and external storage connectivity.
The next-generation Lenovo XClarity Controller, which is built into the SR250 V2 server, provides advanced service processor control, monitoring, and alerting functions.
Technical Specifications
Specifications
Dimensions
|
Width:
435 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 545 mm (21.5 in.)
|
Drive Bay
|
8x 2.5-in HS / Open?bay
|
Expansion Slot
|
|
Form Factor
|
1U rack server
|
Front/Rear Ports
|
|
Graphics
|
G200 graphics with 16 MB memory, integrated into the XClarity Controller. For use with local Administrator functions (not designed for workstation use). Maximum resolution is 1920x1200 32bpp at 60Hz.
|
LAN
|
Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Broadcom BCM5720 embedded controller, one can be shared with XCC for systems management. Third dedicated Gigabit Ethernet port for XCC systems management.
|
Memory
|
Up to 128 GB using 4x 32 GB UDIMMs.
|
Operating System
|
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi.
|
Optical Drive
|
No support. Use an external optical drive.
|
Power Supply
|
1x 450W HS
|
Processor
|
Xeon E-2356G 6C 80W 3.2G
|
RAID
|
Optional
|
Storage Capacity
|
Optional upto 18TB using 10x 1.8TB 2.5-inch HDDs
|
Warranty
|
Three-year
|
Weight
|
Maximum Configuration:
12.3 kg
|
