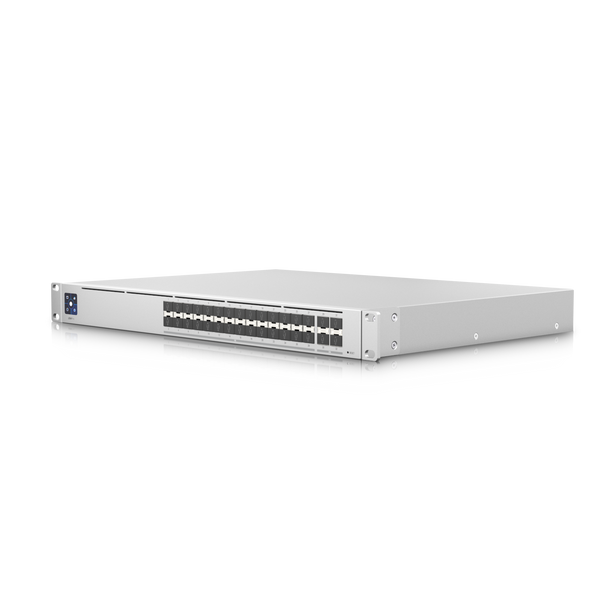

USW-Pro-Aggregation

UniFi Pro Aggregation Switch

The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10GB SFP+ ports and (4) 25GB SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3' LCM color touchscreen that concisely displays key system and connection insights. Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app. Features: (1) 1.3' LCM color touchscreen with AR switch management (28) 10GB SFP+ ports (4) 25GB SFP28 ports (1) USP RPS DC input 760 Gbps switching capacity Layer 3 switching features

Mechanical

Mechanical Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7') Weight Without Mount: 4.6 kg (10.14 lb) With Mount: 4.7 kg (10.36 lb) Enclosure Material SGCC Steel

Hardware

Total Non-Blocking Throughput 380 Gbps Switching Capacity 760 Gbps Forwarding Rate 565.44 Mpps Max. Power Consumption 100W Power Method (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz (1) USP-RPS DC input, 11.5VDC, 8.7A Power Supply AC/DC, Internal, 100W Network Interface (28) 1/10 Gbps SFP+ Ethernet (4) 1/10/25 Gbps SFP28 Ethernet* LCM Display (1) 1.3' Touchscreen Management Interface Ethernet In-Band Modes SMB Layer 3 10/25 G Fiber Switch ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV Operating Temperature -5 to 40° C (23 to 104° F) Operating Humidity 10 - 90% Noncondensing *The four SFP28 ports don't support mixed speed at 25Gbps mode. Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10G
