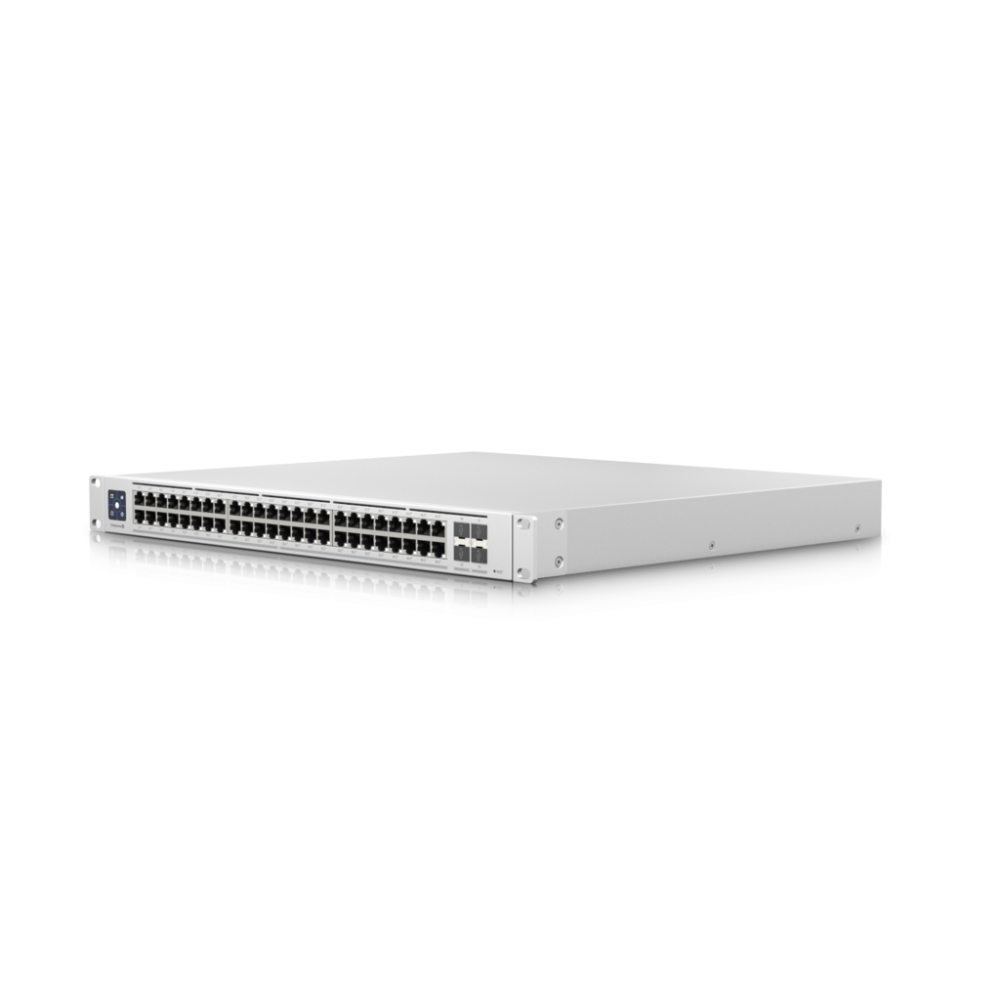

Ubiquiti Switch Enterprise 48-port PoE+ 48x2.5GbE Ports, Ideal For Wi-Fi 6 Ap, 4x 10GB SFP+ Ports For Uplinks, Managed Layer 3 Switch USW-Enterprise-48-PoE

Ubiquiti's MPN:

USW-Enterprise-48-PoE

The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10GB SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3' LCM color touchscreen that concisely displays key system and connection insights. Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app. Features: (1) 1.3' LCM color touchscreen with AR switch management (48) 2.5GbE, 802.3at PoE+ RJ45 ports (4) 10GB SFP+ ports (1) USP RPS DC input 720W total PoE supply Layer 3 switching features Mechanical Dimensions 442 x 44 x 400 mm (17.4 x 1.7 x 15.7') Weight Without Mount: 6.2 kg (13.67 lb) With Mount: 6.3 kg (13.89 lb) Enclosure Material SGCC Steel Mount Material SGCC Steel Hardware Total Non-Blocking Throughput 160 Gbps Switching Capacity 320 Gbps Forwarding Rate 238.095 Mpps Max Power Consumption (Excluding PoE Output) 150W Power Method (1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz (1) USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A Power Supply AC/DC, Internal, 100-240V, 10A Max. Management Interface Ethernet In-Band Networking Interfaces (48) 100MbE/1GbE/2.5GbE RJ45 port SFP+ Interfaces (4) 1/10G SFP+ ports PoE Interfaces (48) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) Total Available PoE 720W Max. PoE+ Wattage per Port by PSE 34.2W Voltage Range 802.3af Mode 44 to 57V Voltage Range 802.3at Mode 50 to 57V Services SMB Layer 3 PoE Gigabit Ethernet Switch ESD/EMP Protection Air: ± 16 kV, Contact: ± 12
