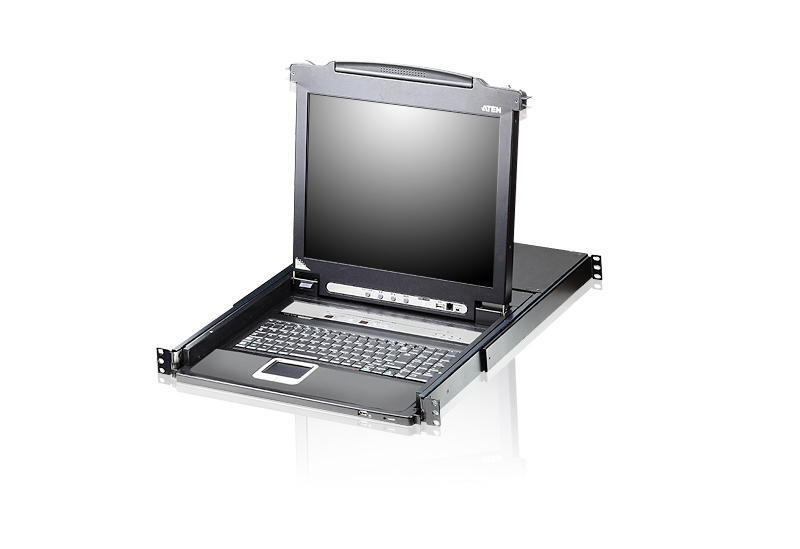

Aten 19" LCD KVM-16Port, support second console can be mounted in rack with a depth of 52 to 85 cm CL5716N-ATA-AU

Features

cl5716n-ata-au console computers switch power

(Pictures are For Illustration Purposes Only)

Aten/Altusen's MPN:

CL5716N-ATA-AU

Aten 19" LCD KVM-16Port, support second console can be mounted in rack with a depth of 52 to 85 cm

Click here for bonus additional 1 year warranty to a total of 3 years

The CL5716 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
Available with or without Fingerprint Identification Reader**
Space saving technology - up to two consoles (one bus) control up to 16 computers
Daisy-chain up to 31 additional units - control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A, CS1716A)
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
LCD module USB port allows each computer to access USB peripherals*
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Multiplatform support – Windows, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Supports external USB mouse
Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security - only authorized users can view and control computers
Supports one administrator and four user accounts with separate profiles
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
Hot pluggable - add or remove computers without having to power down the switch
Beeper on/off via hotkey and OSD
Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.

**The fingerprint reader can be used as an alternate means of logging in to the switch. From 1 to 4 fingers can be scanned for each user and the administrator, with any one of the recorded fingerprints used to log in.

Package Contents

1x CL5716 LCD KVM Switch with standard Rack Mount Kit
2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
1x Firmware Upgrade Cable
1x Power Cord (AC Power Models)
1x User Instructions

Specifications

Compatible/Used for
Product Type
Warranty	2 Years

Computer Connections

Direct	16
Maximum	512 (via Daisy-chain)

Connectors

Daisy Chain Ports	1 x DB-25 Male
External Console Ports	1 x SPHD-18 Male (Yellow)
External Mouse Port	1 x USB Type A Female
Firmware Upgrade	1 x RJ-11 Female
KVM Ports	16 x SPHD-15/17 Female (Yellow)
Power	1 x 3-prong AC Socket

Emulation

Keyboard / Mouse

PS/2, USB

Environmental

Humidity	0-80% RH, Noncondensing
Operating Temperature	0-50°C
Storage Temperature	-20-60°C

LEDs

Lock	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
Online	16 (Orange)
Port ID	2 (Yellow)
Power	1 (Dark Green)
Station ID	2 (Yellow)

Panel Spec

LCD Module	19" TFT-LCD
Resolution	1280 x 1024 @ 75 Hz
Response time	5 ms
Viewing Angle	170° (H), 160° (V)

Physical Properties

Dimensions (L x W x H)	48.00 x 68.92 x 4.40 cm
Housing	Metal + Plastic

Port Selection

OSD, Hotkey, Pushbuttons

Power

Consumption

120V/26W; 230V/26.8W

Switches

Firmware Upgrade	1 x Switch
LCD Adjustment	4 x Pushbutton
LCD On/Off	1 x LED Pushbutton
Port Selection	2 x Pushbutton
Power	1 x Rocker Switch
Reset	1 x Semi-recessed Pushbutton
Station Selection	2 x Pushbutton

Video

Input Video Resolution	1920 x 1200 @ 60 Hz
Second console	1920 x 1200 @ 60 Hz

Information

SKU/Item No 633367

Vendor Part No CL5716N-ATA-AU

UPC/EAN Number 4719264642494

Our Stock ** (click for more info)

Price

$2,069.97
