Alogic's MPN:
DUCMA3

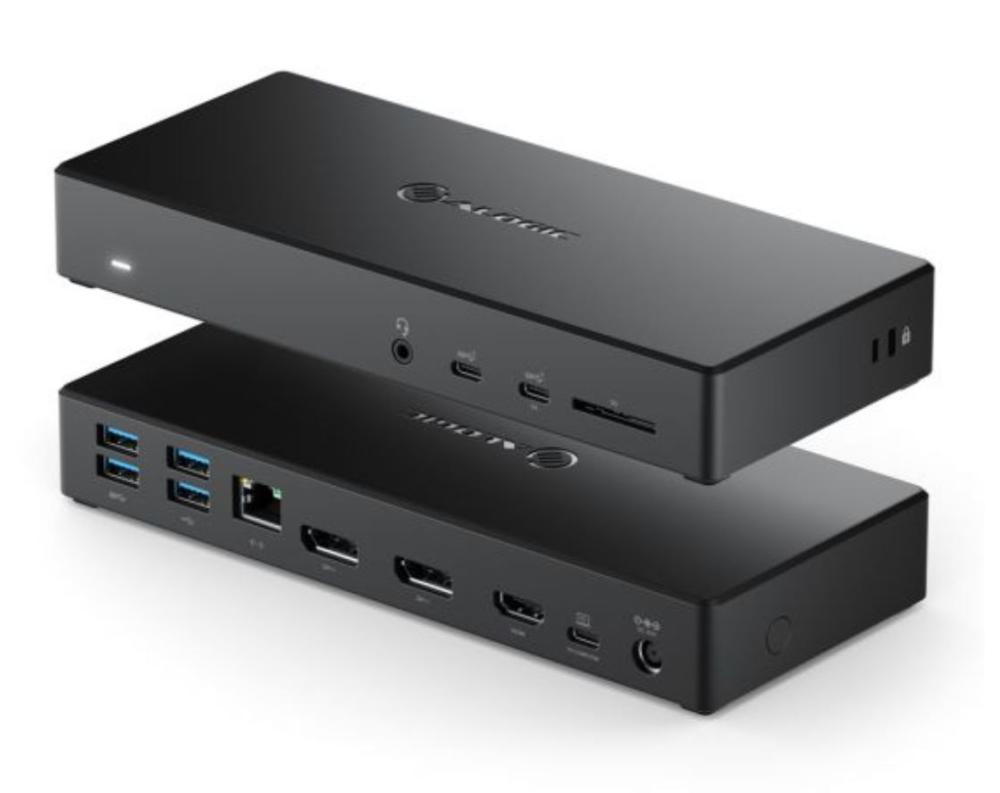

ALOGIC USB-C MA3 Triple Display DP Alt. Mode Docking Station with 100W Power Delivery - 2 x DP and 1 x HDMI with up to 4K 60Hz Support
ALOGIC USB-C Triple Display DP Alt. Mode Docking Station – MA3 with 100W Power Delivery (Laptop Charging) - 2 x DP and 1 x HDMI with up to 4K 60Hz Support
Comprehensive Connectivity:
The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card.
The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.
Plug And Play:
Driverless:
With a plug-and-play design, the MA3 dock becomes an extension of your laptop without the need for software or drivers.
Triple Display:
The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.
100W Laptop Charging/Power Delivery:
The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphones/Mic and charge your laptop all at the same time.
Technical Specifications
Specifications
Compatible/Used for
|
Compatible with all computers with a USB-C port. Requires computer operating Windows 7 and above.
|
Product Type
|
USB-C Triple Display DP Alt. Mode Docking Station
|
Warranty
|
2 Years
|
Colour
|
Black
|
Dimensions
|
2100mm (L) x 880mm (W) x 290mm (H)
|
Input
|
1 x USB-C port
|
Output
|
2 x DisplayPort, 1 x HDMI 2 x USB-C 3.1 Gen 2 (10G) BC 1.2 and Apple Charging Support, 2 x USB-A 3.1 Gen1 (5G), 2 x USB-A 2.0, 1 x Audio / Microphone Jack, 1 x RJ45 Ethernet 1Gbps, 1 x SD Card
|
Resolution
|
Up to 2 x 4K UHD 60Hz or 3 x 4K UHD 30Hz with DP 1.4 HBR3 with DSC enabled host* | *See resolution support tables below for maximum outputs
|
Weight
|
360g
|
