Twin USB-C Super Dock - 10-in-1 with Dual Display 4K 60Hz Support - 2x4K HDMI, 2xUSB-A, 1xUSB-C, 1xUSB-C, 1x3.5 Audio, 1xGigabit Ethernet, 1xSD Card U2CSH-SGR

Features

Alogic

Alogic's MPN:

U2CSH-SGR

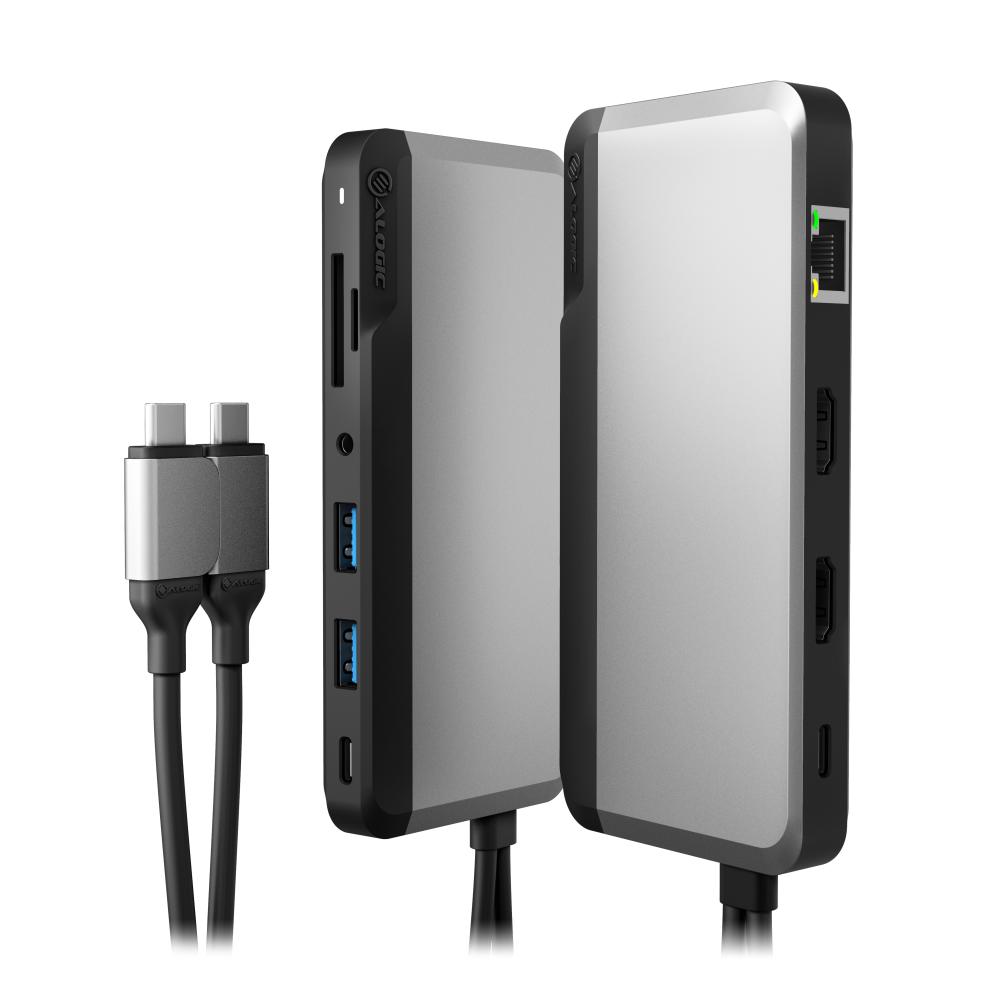

Twin USB-C Super Dock - 10-in-1 with Dual Display 4K 60Hz Support - 2x4K HDMI, 2xUSB-A, 1xUSB-C, 1xUSB-C, 1x3.5 Audio, 1xGigabit Ethernet, 1xSD Card



USB-C Super Dock - 10-in-1 with Dual Display 4K 60Hz Support - SPACE GREY


U2CSH-SGR


  • Universal compatibility with Windows & Mac
  • Supports two displays at resolutions of up to 4K
  • UHD 60Hz Compact and portable
  • Comprehensive Connectivity: 10-in-1



The Super Dock supports two displays at resolutions of up to 4K UHD 60Hz connected to the two HDMI 2.0 outputs. In addition to the ability to connect external monitors, the dock provides access to a full range of connections for USB-C and USB-A peripherals, Ethernet, audio devices and SD and Micro SD card readers for transferring your data, photos and videos. With support for USB Power Delivery Passthrough, you can connect your computer to a wide range of peripherals and even charge it from the Super Dock with up to 100W of power over a single cable (requires a suitable USB PD power supply, available separately). The dock also features a lock slot for securing it to a desk when being used in an office or a hot desking environment.



Comprehensive Connectivity


The 10-in-1 USB-C Super Dock provides access to all of the most popular ports required for use at home, at the office and on-the-go.




Universal Compatibility:
Windows & Mac


With a plug-and-play design, the ALOGIC 10-in-1 Dual USB-C Super Hub becomes an extension of your MacBook, iPad Pro, Windows or Chromebook device without the need for software or drivers



Compact and Portable


ALOGIC’s design innovation has allowed us to make the Super Dock small and easy to transport without compromising on any functionality. With the Super Dock your device becomes a portable workstation capable of delivering all the performance you need whether at your desk or on the road.


Specifications

Compatible/Used for

Product Type

Docking Station

Warranty

2 Years

Barcode

9350784019905

Input

1 x USB-C Port (Primary), 1 x USB-C Port (Secondary - Optional) | Selected port(s) on the host computer should support USB-C DisplayPort Alternative Mode

Output

1 x USB-C 3.2 Gen 1 (5G) with Power Pass thru 100W – Data + Power, 1 x USB-C 3.2 Gen 1 (5G) – Data Only, 2 x USB-A 3.2 (5G), SDP, 1 x Audio / Microphone TRRS, support both CTIA and OMTP, 1 x RJ45 Ethernet 1Gbps, 1 x SD Card & Micro SD Card, 2 x HDMI

Physical Characteristics


Product Dimensions:
138 x 62 x 16mm | Materials: Aluminium and ABS with rubber coating | Colour: Space Grey | Weight: 150g

Resolution

Up to 2 x 4K UHD 60Hz, host computer dependent See resolution support tables for maximum outputs
