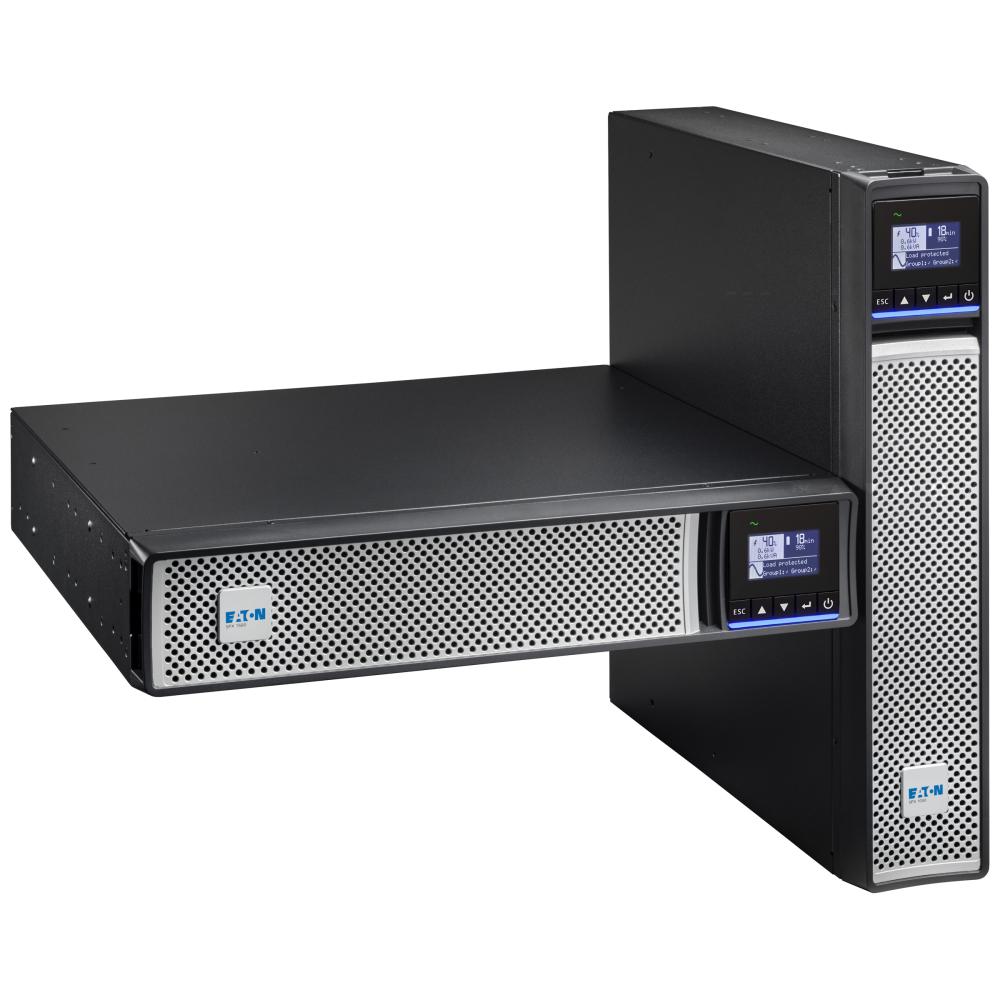

Eaton 5PX Gen 2 2200VA/2200W 2U Rack/Tower UPS 5PX2200IRT2UAUG2

Features
5px2200irt2uaug2 rack tower eaton 2200w
Click to view full size

(Pictures are For Illustration Purposes Only)

Eaton

Eaton's MPN:

5PX2200IRT2UAUG2




Eaton 5PX Gen 2 2200VA/2200W 2U Rack/Tower UPS - 28KG


Eaton 5PX Gen 2 2200VA/2200W 2U Rack/Tower UPS



New Features:


• Unity power factor on all models (Gen1 is 0.9 pf)


• New advanced LCD control display


• New step by step commissioning wizard


• Remote firmware update on the UPS via M2 card


Technical Specifications

Specifications

Battery
ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units

Communication/Management
1 slot for NMC Minislot card or NMC ModBus/JBus or MC Contacts/Serial

Device Type
UPS

Frequency
47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode

Input Connection
(1) IEC-320-C20

Input Voltage
160V-294V (adjustable to 150V-294V)

Misc.
Tower/Rack 2U

Output Receptacles
(8) IEC-320-C13 (1) IEC-320-C19

Output Voltage
230 V (+6/-10 %) (Adjustable to 200V / 208V / 220V / 230V / 240V)

Power Rating/Capacity
2200/1980

Series
5PX Gen2

Typical Runtime

Warranty
3 years on electronics, 2 years on batteries
