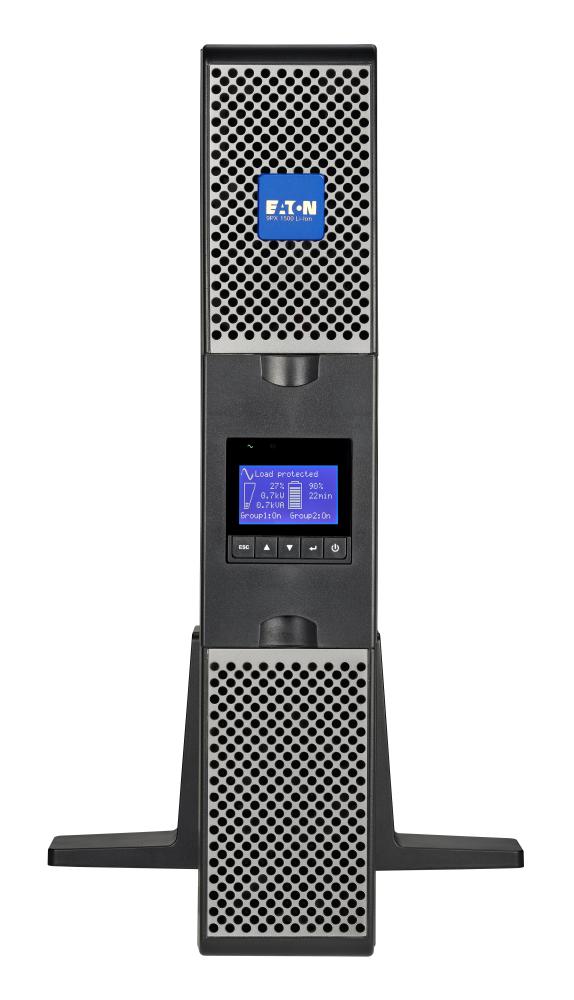

Eaton 9PX 3000VA Anz Lithium Ion Online Double Conversion UPS 9PX3000IRTANZ-L

Features
9px3000irtanz-l output input remote 3000va
Click to view full size

(Pictures are For Illustration Purposes Only)

Eaton

Eaton's MPN:

9PX3000IRTANZ-L




Eaton 9PX Lithium Ion UPS 3000VA/2400W (3000W when paired with EBM) R/T 16A Input

The Eaton 9PX lithium-ion rackmount and tower UPS provides 8 to 10 years of life expectancy for UPS and batteries. The 9PX lithium-ion UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. The 9PX lithium-ion UPS, available in rackmount and tower form, has the same reliable features as the lead-acid UPS, including load segments that allow for prioritized shutdown, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities.


Technical Specifications

Specifications

Battery
Li-Ion batteries with Battery management system, Cold start, Frequency converter, Energy Metering

Communication/Management
1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay + 1 slot for optional communication card

Device Type
UPS

Frequency

Input Range:
40-70 Hz, Output range : 50/60 Hz auto select or frequency converter mode

Input Connection
1 IEC C20 (16A)

Input Voltage
176V- 276V without derating (100V- 276V up to 40% load)

Misc.

4 Leds + Multilingual Lcd:
access to measures, alarm messages and customization

Output Receptacles
8 IEC C13 (10A) + 2 IEC C19 (16A) outlets, including 2 manageable groups with energy metering

Output Voltage
230V (adjustable to 200/208/220/240V)

Power Rating/Capacity
3000VA / 2400W (3000VA/3000W with EBM)

Series
Eaton 9PX Li-ion

Typical Runtime
30 Min at 800W

Warranty
5 years full warranty

x`
IEC/EN 62040-1, IEC/EN 62040-2 Cat C1, IEC/EN 62040-3, UL 1778, CSA 22.2, CISPR22 Class B, FCC part 15 Class B, CE, CB, EAC

Dimensions (H x W x D*)
86.5 x 440 x 605 mm

Weight
22.8KG
