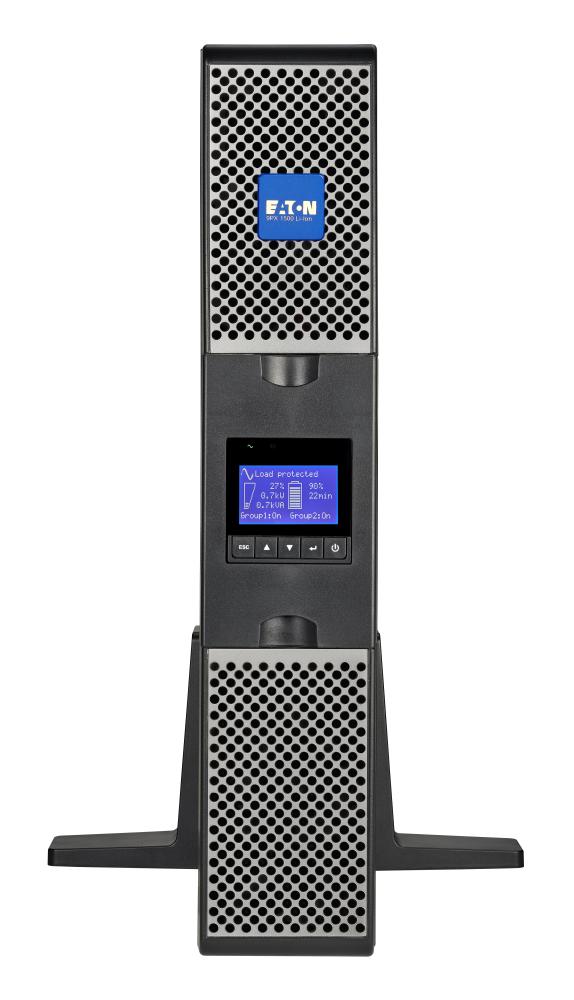

Eaton 9PX 1500VA Anz Lithium Ion Online Double Conversion UPS 9PX1500IRTANZ-L

Features
9px1500irtanz-l output eaton input power
Click to view full size

(Pictures are For Illustration Purposes Only)

Eaton

Eaton's MPN:

9PX1500IRTANZ-L




Eaton 9PX Lithium Ion UPS 1500VA/1500W R/T 10A Input

The Eaton 9PX lithium-ion rackmount and tower UPS provides 8 to 10 years of life expectancy for UPS and batteries. The 9PX lithium-ion UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. The 9PX lithium-ion UPS, available in rackmount and tower form, has the same reliable features as the lead-acid UPS, including load segments that allow for prioritized shutdown, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities.


Technical Specifications

Specifications

Battery
Li-Ion batteries with Battery management system, Cold start, Frequency converter, Energy Metering

Communication/Management
1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay + 1 slot for optional communication card

Device Type
UPS

Frequency

Input Range:
40-70 Hz, Output range : 50/60 Hz auto select or frequency converter mode

Input Connection
1 IEC C14 (10A)

Input Voltage
176V- 276V without derating (100V- 276V up to 40% load)

Misc.

4 Leds + Multilingual Lcd:
access to measures, alarm messages and customization

Output Receptacles
8 IEC C13 (10A) outlets, including 2 manageable groups with energy metering

Output Voltage
230V (adjustable to 200/208/220/240V)

Power Rating/Capacity
1500 VA / 1500 W

Series
Eaton 9PX Li-ion

Typical Runtime
20 min at 800W

Warranty
5 years full warranty

x`

Dimensions (H x W x D*)
86.5 x 440 x 450 mm

Features
Li-Ion batteries with Battery management system, Cold start, Frequency converter, Energy Metering

Standards and certifications
IEC/EN 62040-1, IEC/EN 62040-2 Cat C1, IEC/EN 62040-3, UL 1778, CSA 22.2, CISPR22 Class B, FCC part 15 Class B, CE, CB, EAC

Weight
15.8kg
