Asus's MPN:
TUF-GAMING-750B
TUF Gaming 750W Bronze, 80Plus Bronze, ATX12V, ATX 3.0, 2.18kg (Single PSU), 150 x 150 x 86 mm

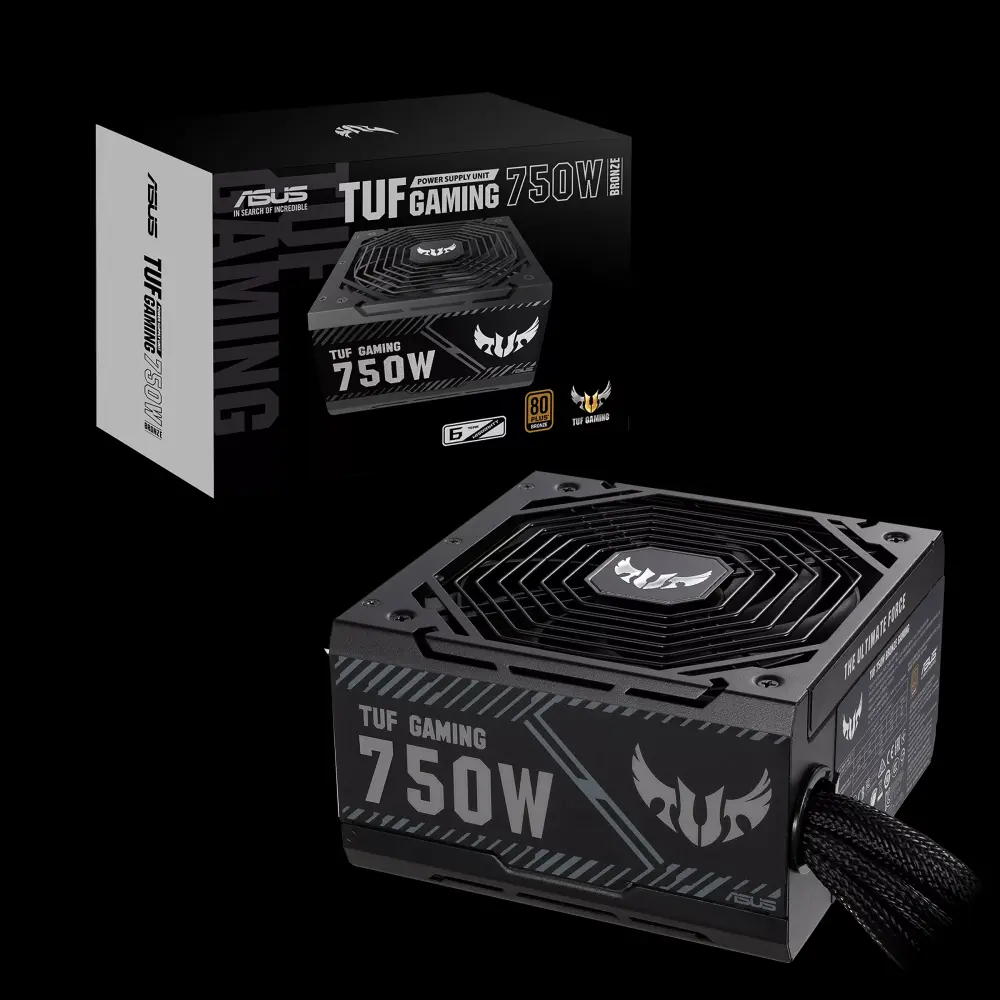

The ASUS TUF Gaming 750W Bronze PSU leads in durability.
Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
A protective PCB coating protects against moisture, dust, and extreme temperatures.
An 80 Plus Bronze Certification is earned with high-quality components that pass rigorous testing.
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
0dB technology lets you enjoy light gaming in relative silence.
Sleeved cables leave your rig looking tactically clean.
80cm 8-pin CPU connector (EPS 12V)
6-year warranty included.
Technical Specifications
Specifications
Product Type
|
Power Supply
|
Warranty
|
6 Years
|
Weight
|
2.18kg
|
AC Input Range
|
100-240Vac
|
Combined Load
|
130W 130W 744W 9.6W 15W
|
Connectors
|
MB 24/20-pin x1, CPU 4+4-pin x2, PCI-E 6+2-pin x4, SATA x8, Periplheral x4
|
DC Output Voltage
|
+3.3V +5V +12V -12V +5Vsb
|
Dimensions
|
15 x 15 x 8.6 cm
|
Efficiency
|
80Plus Bronze
|
Maximum Load
|
25A 25A 62A 0.8A 3A
|
Protection Features
|
OPP/OVP/UVP/SCP/OCP/OTP
|
Total Output
|
750W
|
