Qnap 8-Bay NAS, AL324 64-bit quad-core 1.7GHz, 4GB DDR4 SODIMM RAM (1 x 4GB, max 16GB), 8 x 3.5"/ 2.5" drive slots, 2 x 10GbE SFP+ Lan, 2 x 2.5GbE Lan TS-832PX-4G

Features

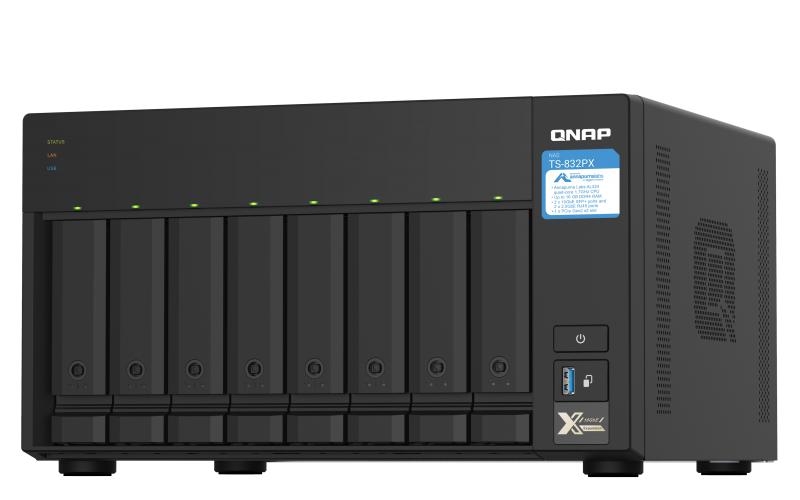

ts-832px-4g 10gbe 5gbe storage pcie image 2

(Pictures are For Illustration Purposes Only)

Qnap's MPN:

TS-832PX-4G

8-Bay NAS, AL324 64-bit quad-core 1.7GHz, 4GB DDR4 SODIMM RAM (1 x 4GB, max 16GB), 8 x 3.5"/ 2.5" drive slots, 2 x 10GbE SFP+ LAN, 2 x 2.5GbE LAN

The quad-core 1.7GHz TS-832PX features eight 3.5-inch SATA 6GB/s drive bays, providing huge storage potential for a wide range of applications and everyday usage. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-832PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing. Various PCIe cards are also supported, including QM2 cards that provide M.2 SATA/NVMe SSD caching and Qtier™ auto-tiering storage to boost NAS performance.

1 Two 10GbE SFP+ and two 2.5GbE RJ45 network ports empower bandwidth-demanding tasks and accelerate file sharing.

2 PCIe expansion allows for installing a QM2 card to add M.2 SSDs for caching, a 10/5GbE network card, or a wireless network expansion card.

3 Snapshots record your system status, allowing you to protect files and data from accidental deletion and malware attacks.

4 Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.

5 Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

6 Increase the storage capacity of the TS-832PX with QNAP TR RAID expansion enclosures or TL JBOD.

Specifications

Bays	8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Capacity	Disckless
Form Factor	Tower
LAN Port	2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M), 2 x 10GbE SFP+
Processor/Memory	AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 4-core 1.7GHz processor
Product Family	QNAP Business
RAID	JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
USB Port	3 x USB 3.2 Gen 1 port
Warranty	2 Years Limited
Buttons	Power, Reset, USB Copy
CPU Architecture	64-bit ARM
Dimensions (HxWxD)	188.2 × 329.3 × 280.8 mm
Encryption Engine	Yes
Fan	System Fan: 2 x 120mm, 12VDC CPU fan: 1 x 60mm
Flash Memory	512 MB (Dual boot OS protection)
Floating Point Unit	Yes
Hot-swappable	Yes
Jumbo Frame	Yes
LED Indicators	System Status, LAN, USB, HDD1~8
Operating Temperature	0 - 40 °C (32°F - 104°F)
PCIe Slot	Slot 1: PCIe Gen 2 x2 **PCIe bandwidth limitations will restrict the NAS 10GbE performance.
Power Consumption: HDD Sleep Mode	27.949 W
Power Consumption: Operating Mode, Typical	50.858 W **Tested with drives fully populated.
Power Supply Unit	250W, 100-240V AC, 50/60Hz, 3.5A
Relative Humidity	5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
SSD Cache Acceleration Support	Yes
Storage Temperature	-20 - 70°C (-4°F - 158°F)
System Memory	4 GB SODIMM DDR4(1 x 4 GB)
System Warning	Voice prompts or Buzzer
Voice prompts or Buzzer	Yes
Wake on LAN (WOL)	Yes **Only the 2.5GbE port
Weight (Gross)	8.61 kg
Weight (Net)	6.38 kg
