9-Bay NAS, AL324 64-bit quad-core 1.7GHz, 4GB DDR4 SODIMM RAM (1 RAM slot, max 16GB), 5 x 3.5" and 4 x 2.5" drive slots, 2 x 10GbE SFP+ Lan, 2 x 2.5Gb TS-932PX-4G

Features

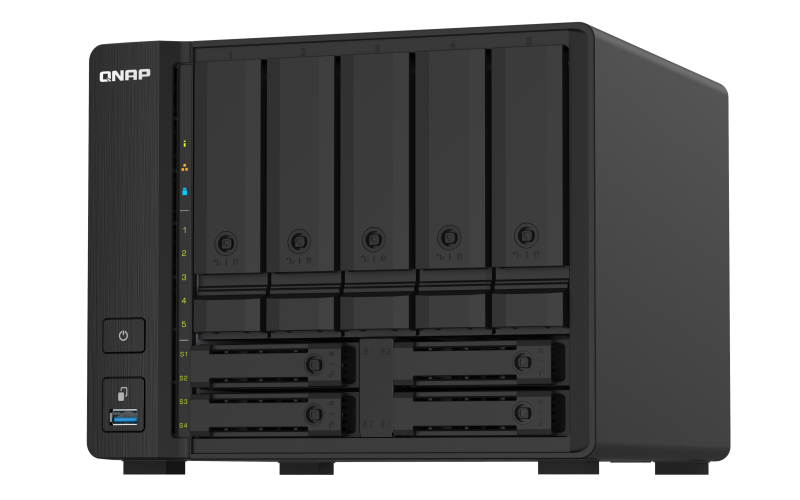

ts-932px-4g port storage 7ghz drive image 2

(Pictures are For Illustration Purposes Only)

Qnap's MPN:

TS-932PX-4G

9-Bay NAS, AL324 64-bit quad-core 1.7GHz, 4GB DDR4 SODIMM RAM (1 RAM slot, max 16GB), 5 x 3.5" and 4 x 2.5" drive slots, 2 x 10GbE SFP+ LAN, 2 x 2.5Gb

The quad-core 1.7GHz TS-932PX fits nine drive bays into the size of a 5-bay NAS. With five 3.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s bays, the TS-932PX provides the ability to create an HDD/SSD hybrid infrastructure to boost application performance. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-932PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing.

Two 10GbE SFP+ and two 2.5GbE RJ45 network ports empower bandwidth-demanding tasks and accelerate file sharing.
HBS provides comprehensive backup and data recovery; QuDedup deduplicates the data at the source to optimize storage and bandwidth usage, while reducing backup times.
Snapshots record your system status, allowing you to protect files and data from accidental deletion and malware attacks.
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.
Increase the storage capacity of the TS-932PX with QNAP TR RAID expansion enclosures or TL JBOD.

Specifications

Bays	5x 3.5-inch+ 4 x 2.5-inch SATA 6Gb/s
Capacity	Disckless
Form Factor	Tower
LAN Port	2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M), 2 x 10 Gigabit Ethernet Port
Processor/Memory	AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 4-core 1.7GHz processor
Product Family
Raid	JBOD, Single, RAID 0, 1, 5, 6, 10
USB Port	3 x USB 3.2 Gen 1 port
Warranty	2 Years
Buttons	Power, Reset, USB Copy
CPU Architecture	64-bit ARM
Dimensions (HxWxD)	182.7 × 224.6 × 224.1 mm
Encryption Engine	Yes
Fan	1 x 140mm, 12VDC
Flash Memory	512 MB (Dual boot OS protection)
Floating Point Unit	Yes
Hot-swappable	Yes
Jumbo Frame	Yes
Kensington Security Slot	Yes
LED Indicators	System Status, LAN, USB, HDD1~5, SSD1-4
Operating Temperature	0 - 40 °C (32°F - 104°F)
Power Consumption: HDD Sleep Mode	23.833 W
Power Consumption: Operating Mode, Typical	43.003 W **Tested with drives fully populated.
Power Supply Unit	External, 120 W, AC 100 to 240 V
Relative Humidity	5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Series	QNAP Business
SSD Cache Acceleration Support	Yes
Storage Temperature	-20 - 70°C (-4°F - 158°F)
System Memory	4 GB SODIMM DDR4 (1 x 4 GB)
System Warning	Voice prompts or Buzzer
Wake on LAN (WOL)	Yes **Only the 2.5GbE port
Weight (Gross)	4.99 kg
Weight (Net)	3.39 kg
