Qnap's MPN:
TS-832PXU-4G

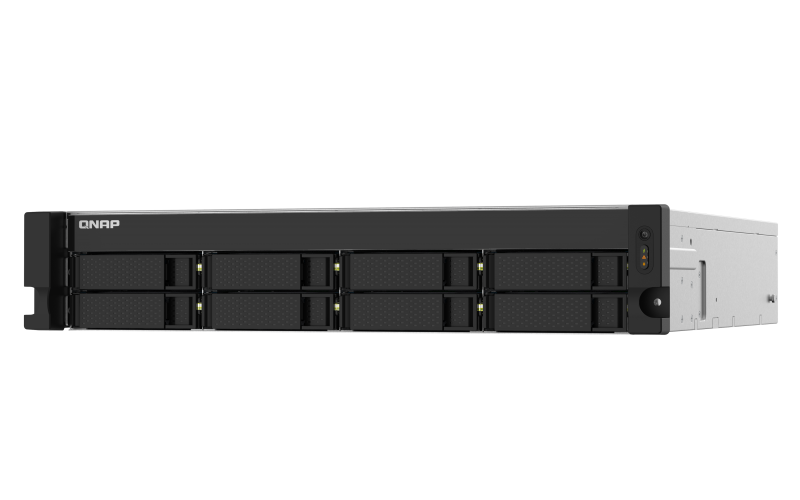

8-Bay quad-core 1.7 GHz rackmount NAS with 250W PSU, 4GB DDR4 UDIMM RAM (max 16GB), SATA 6Gb/s, 2x 10GbE SFP+ LAN, 2x GbE LAN, 1x PCIe Gen2 x2 slot
With 10GbE SFP+ and 2.5GbE network ports, the TS-832PXU delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-832PXU supports file backup and synchronization, secure snapshot protection, and Google™ Workspace and Microsoft 365® enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a hybrid cloud storage solution has never been easier.
1 Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing.
2 HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning.
3 Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google™ Workspace and Microsoft 365®.
4 Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
5 Expand the application potential of the TS-832PXU by installing a compatible PCIe card.
6 Increase the storage capacity of the TS-832PXU with QNAP TR RAID expansion enclosures or TL JBOD.
Technical Specifications
Specifications
Bays
|
8 x 3.5-inch SATA 6Gb/s, 3Gb/s
|
Capacity
|
Disckless
|
Form Factor
|
2U Rackmount
|
LAN Port
|
2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M), 2 x 10GbE SFP+
|
Processor/Memory
|
AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor
|
Product Family
|
QNAP Business
|
RAID
|
JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
|
USB Port
|
4 x USB 3.2 Gen 1 port
|
Warranty
|
3 Years Limited
|
Buttons
|
Power, Reset
|
CPU Architecture
|
64-bit ARM
|
Dimensions (HxWxD)
|
89 × 482 × 534 mm
|
Encryption Engine
|
Yes
|
Fan
|
2 x 70mm, 12VDC
|
Flash Memory
|
512 MB (Dual boot OS protection)
|
Floating Point Unit
|
Yes
|
Hot-swappable
|
Yes
|
Jumbo Frame
|
Yes
|
LED Indicators
|
HDD 1-8, Status, LAN, Storage expansion
|
Operating Temperature
|
0 - 40 °C (32°F - 104°F)
|
PCIe Slot
|
Slot 1:
PCIe Gen 2 x2 **PCIe bandwidth limitations will restrict the NAS 10GbE performance.
|
Power Consumption:
Operating Mode, Typical
|
56.412 W **Tested with drives fully populated.
|
Power Supply Unit
|
250W PSU, 100 - 240V
|
Relative Humidity
|
5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
|
SSD Cache Acceleration Support
|
Yes
|
Storage Temperature
|
-20 - 70°C (-4°F - 158°F)
|
System Memory
|
4 GB UDIMM DDR4 (1 x 4 GB)
|
System Warning
|
Buzzer
|
Wake on LAN (WOL)
|
Yes **Only the 2.5GbE port
|
Weight (Gross)
|
15.19 kg
|
Weight (Net)
|
9.45 kg
|
