8-bay desktop USB-C 3.1 Gen2 10Gbps Jbod expansion unit with a 1-meter USB-C to USB-A 3.1 Gen2 cable. TL-D800C

TL-D800C

8-bay desktop USB-C 3.1 Gen2 10Gbps JBOD expansion unit with a 1-meter USB-C to USB-A 3.1 Gen2 cable.

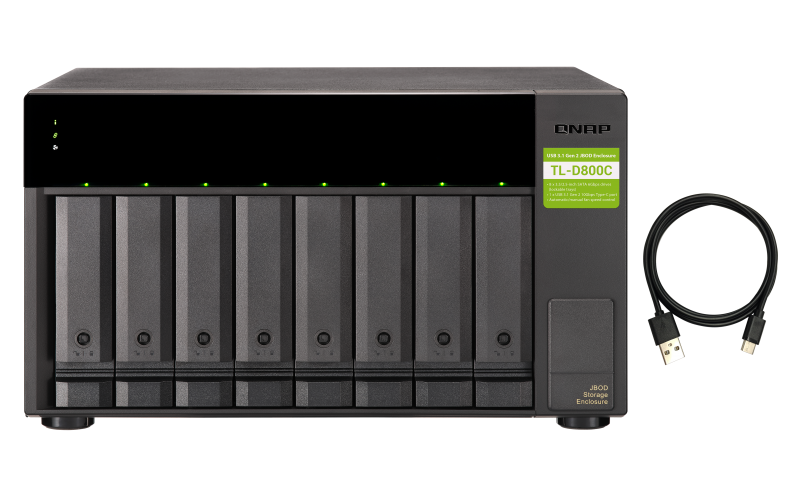

The TL-D800C JBOD storage enclosure allows you to back up and expand your QNAP NAS. The TL-D800C features eight 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.

Note：

1. TL-D800C only supports devices with USB 3.2 Gen1 (or above) port.

2. QNAP recommends following the standard procedure to connect or disconnect the TL-D800C. For more information, please see the TL-D800C user manual.

3. The TL-D800C can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D800C.

4. The TL-D800C only supports QNAP NAS running on QTS 4.4.2 (or above) or QTS hero operating system.

5. The TL-D800C doesn’t support ASM1142 USB controller IC based USB ports and PCIe expansion cards (e.g. QNAP USB-U31A2P01 expansion card).

USB 3.2 Gen2 Type-C connectivity* provides up to 10 Gb/s data transfer speeds. The port can support USB Type-A to Type-C connection or Thunderbolt 3 Type-C connection using different cables.

Lockable hard drive trays prevent accidental drive removal.

Supports SATA 6Gb/s drives for reliable read/write performance.

* The package includes one USB 3.2 Gen2 Type-C to Type-A cable. Maximum 1M USB cable is recommended.
