Seagate's MPN:
ST14000NM001G
Exos 14TB, 3.5", SATA 6GB/s, 7200RPM, 256MB Cache, 512E, 5 Years Warranty

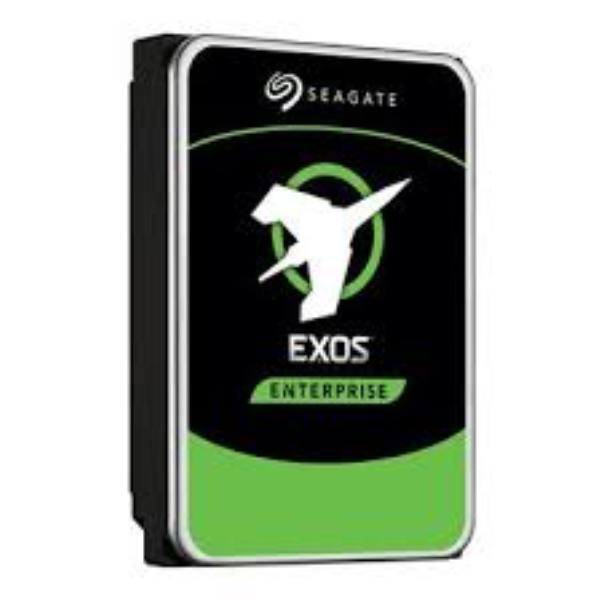

Seagate Exos X16 14TB 3.5" SATA 512e/4Kn Hard Drive
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos® X16 enterprise hard drives are the highest-capacity hard drives in the fleet.
Maximum Storage Capacity for Highest Rack Space Efficiency.
Industry's first 16 TB drive for 33% more petabytes per rack .
Highest 16 TB hard drive performance with enhanced caching, making it perfect for cloud data centre and massive scale-out data centre applications.
Hyperscale SATA model tuned for large data transfers and low latency.
PowerBalance feature optimises Watts/TB Helium sealed-drive design delivers lower total cost of ownership through lower power and weight.
Next-generation helium side-sealing weld technology for added handling robustness and leak protection.
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance.
Data Protection And Security:
Seagate Secure features for safe, affordable, fast, and easy drive retirement.
Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating
Technical Specifications
Specifications
|
Cache
|
256
|
Capacity
|
14TB
|
Form Factor
|
3.5"
|
Interface
|
512E/4KN SATA
|
Misc.
|
|
Product Family
|
Exos
|
RPM
|
7200
|
Series
|
X16
|
Warranty
|
5 Years Limited
|
Weight
|
670g
|
Environmental
|
Shock, Non-operating, (1 ms/2 ms) (Gs)
|
200
|
Shock, Operating 2 ms Read/Write (Gs)
|
50
|
Temperature, Operating (?C)
|
5°C – 60°C
|
Power Consumption
|
Idle Power, Average (W)
|
5
|
Max Operating, Random Read/Write 4K/16Q (W)
|
10.2, 6.2
|
Power Supply Requirements
|
+12 V and +5 V
|
Reliability/Data Integrity
|
Bytes per Sector
|
512
|
Mean Time Between Failures (MTBF, hours)
|
2,500,000
|
Power-On Hours per Year
|
8,760
|
Reliability Rating @ Full 24?7 Operation (AFR)
|
0.35%
|
Vibration, Non-Operating:
2 Hz to 500 Hz (Grms)
|
2.27
|
