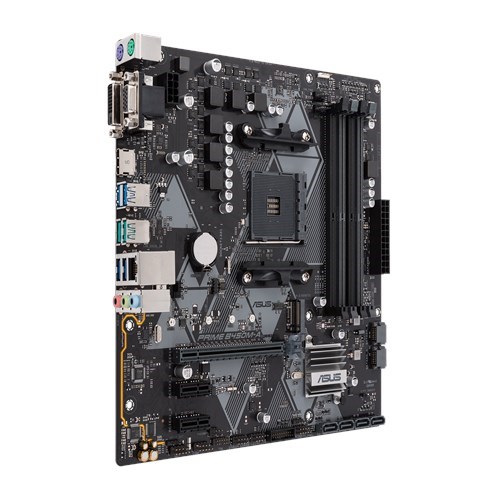

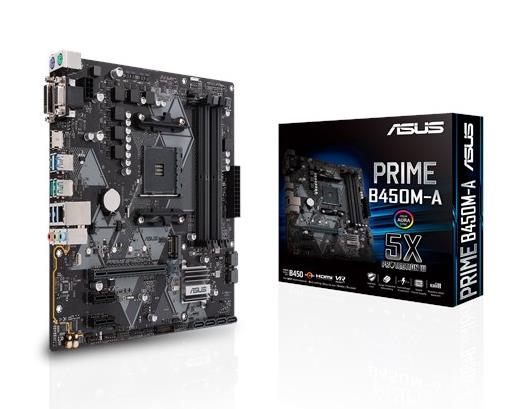

Asus PRIME B450M-A, AM4 mATX, 4xDDR4, 3xPCIe, 4xSATA, 1xM.2, RAID, 6xUSB3, 1xHDMI, 1xDVI, 1xVGA PRIME-B450M-A

Features

prime-b450m-a connector ryzen header sata

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

Asus's MPN:

PRIME-B450M-A

AMD AM4 mATX motherboard with Aura Sync RGB header, DDR4 3200MHz, M.2, HDMI 2.0b, SATA 6Gbps and USB 3.1 Gen 2

Fan Xpert 2+:
Flexible controls for ultimate cooling and silence, plus GPU-temperature sensing for cooler gaming

Ultrafast Connectivity:
Supreme flexibility with USB 3.1 Gen 2 and native M.2

Asus Aura Sync Header:
Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware

5X Protection Iii:
Multiple hardware safeguards for all-around system protection

Technical Specifications

Specifications
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC
Chipset	AMD B450
Form Factor	mATX Form Factor (24.4 cm x 24 cm)
I/O Connectors	Back I/O Ports: 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 2, 4 x USB 3.1 Gen 1, 3 x Audio jack(s). Internal I/O Ports: 1 x Aura RGB Strip Header, 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s), additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x TPM header, 1 x COM port(s) connector(s), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s), 1 x Clear CMOS jumper(s), 1 x Speaker connector.
Integrated CPU Graphics	Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
LAN	Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Memory/Type/Bus/Max.	4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
PCI Slots	AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors: 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor: 1 x PCIe 3.0/2.0 x16 (x8 mode) *1; AMD B450 chipset: 2 x PCIe 2.0 x1.
Processor Support	AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
Raid	Raid 0, 1, 10
RAM Type/Bus/Max.
Socket	AMD AM4 Socket
Storage Interface	SATA 6 Gb/s, SATA & PCIE 3.0 x 4
Warranty
Weight

Specifications

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC

Chipset

AMD B450

Form Factor

mATX Form Factor (24.4 cm x 24 cm)

I/O Connectors

Back I/O Ports:
1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 2, 4 x USB 3.1 Gen 1, 3 x Audio jack(s). Internal I/O Ports: 1 x Aura RGB Strip Header, 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s), additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x TPM header, 1 x COM port(s) connector(s), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s), 1 x Clear CMOS jumper(s), 1 x Speaker connector.

Integrated CPU Graphics

Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Memory/Type/Bus/Max.

4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

PCI Slots

AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors: 1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor: 1 x PCIe 3.0/2.0 x16 (x8 mode) *1; AMD B450 chipset: 2 x PCIe 2.0 x1.

Processor Support

AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors

Raid

Raid 0, 1, 10

RAM Type/Bus/Max.

Socket

AMD AM4 Socket

Storage Interface

SATA 6 Gb/s, SATA & PCIE 3.0 x 4

Warranty

Weight
