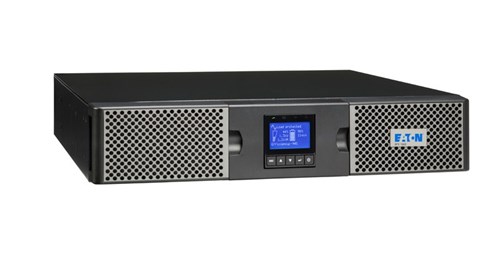

Eaton 9PX 1000VA Tower/Rack 2U, 10Amp Input, 230V (AU cord & Rail Kit Included) 9PX1000IRT2UANZ

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Eaton's MPN:

9PX1000IRT2UANZ

25Kg+ Freight Rate-Eaton 9PX 1000VA Tower/Rack 2U, 10Amp Input, 230V (AU cord & Rail Kit incd)

EATON 9PX1000IRT2U 9PX 1000VA Rack/Tower, 10Amp Input, 230V Tower/Rack 2U

The Eaton 9PX UPSprovides advanced protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection and being the first in its class to provide Unity power factor (VA=W)

On-line double conversion with Power Factor Correction (PFC) system

Technical Specifications

Specifications
Battery	Internal
Communication/Management	1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay, 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Device Type	UPS
Frequency	50/60 Hz autoselection
Input Connection	1x IEC-320-C14
Input Voltage	200/208/220/230/240V
Misc.	with AU cord and rail kit
Output Receptacles	8x IEC C13 (10A) sockets
Output Voltage	200/208/220/230/240V
Power Rating/Capacity	1000VA / 1000Watts
Series	9PX series
Typical Runtime	9 minutes on 800W loading
Warranty	3 Years on electronics, 2 years on batteries
x`	-
Dimensions (H x W x D)	86.5 x 440 x 450 mm
Form factor	Rack/Tower
Weight	17.4Kg

Specifications

Battery

Internal

Communication/Management

1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay, 1 slot for Network-MS card, ModBus-MS or Relay-MS cards

Device Type

UPS

Frequency

50/60 Hz autoselection

Input Connection

1x IEC-320-C14

Input Voltage

200/208/220/230/240V

Misc.

with AU cord and rail kit

Output Receptacles

8x IEC C13 (10A) sockets

Output Voltage

200/208/220/230/240V

Power Rating/Capacity

1000VA / 1000Watts

Series

9PX series

Typical Runtime

9 minutes on 800W loading

Warranty

3 Years on electronics, 2 years on batteries

Dimensions (H x W x D)

86.5 x 440 x 450 mm

Form factor

Rack/Tower

Weight

17.4Kg

Information

SKU/Item No 581102

Vendor Part No 9PX1000IRT2UANZ

UPC/EAN Number 743172081407

Our Stock ** (click for more info)

Price

$2,389.04
