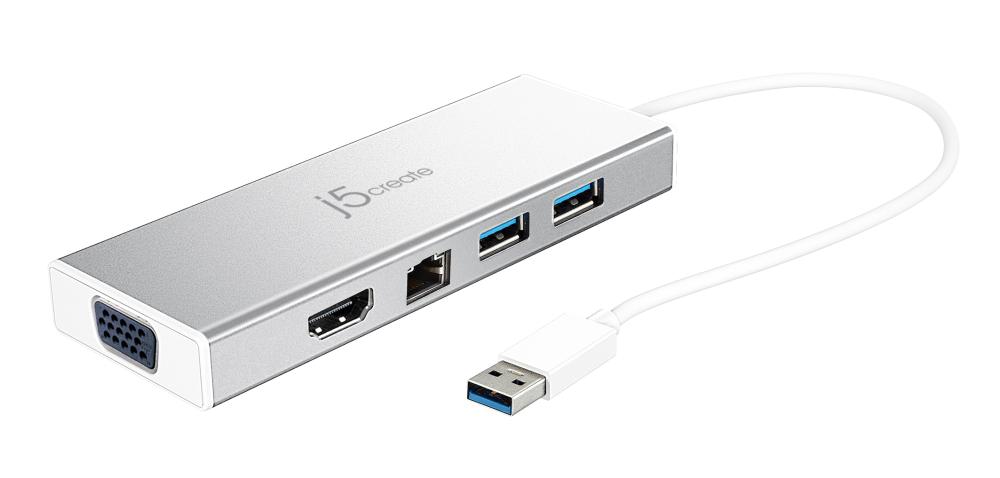

J5create USB3.0 Mini Dock HDMI & VGA Dual Display/Gigabit Ethernet/USB Hub JUD380

Features

(Pictures are For Illustration Purposes Only)

J5create's MPN:

JUD380

Details:

The JUD380 USB 3.0 Mini Dock acts as an external dual monitor display for your MAC or PC. It allows you to add an additional monitor/display through your USB 3.0 port. No need to open up the computer to add an expensive video card, with the USB 3.0 Mini Dock you simply load the drivers, plug the adapter into the USB port, then plug in the VGA or HDMI monitor cable into the adapter and you are ready. It supports three viewing modes. Primary mode, allows you to have individual applications open on each monitor, vastly improving productivity. Extended mode allows you to extend your desktop across multiple displays, great for spreadsheets. Mirroring mode is used to clone one screen onto another, ideal for presentations. With “Plug & Play" functionality between your computer and 2nd monitor or projector, you will be able to create a new visual environment in seconds.

/></p><h4>Specifications:</h4><h2 style= PRODUCT SPECIFICATIONS

Interface
Host Interface	USB 3.0 Male Type-A Connector
USB Downstream Port	USB 3.0 Female Type-A Connector
Video Interface	• VGA-DB 15 pin Female Connector • HDMI Type-A Female Connector
Ethernet Interface	Gigabit Ethemet RJ-45 Female Connector
Power In	USB Micro-B Female Connector
Power
Power Mode	Bus-powered and self-powered
Power Consumption	?900mA
Physical Specifications
Housing Material	Aluminum
Dimensions	Main Body: 119.6(W)x 14.15(H)x 42.8(D) mm Cable Length: 200 mm
Weight	Approximately 82.6 g

Resolutions and Color Depth

Aspect Ratio	Resolution	Color Depth
Wide Screen Display
16:9	2048 x 1152	32 bits
16:10	1920 x 1200	32 bits
16:9	1920 x 1080	32 bits
16:10	1680 x 1050	32 bits
16:9	1600 x 900	32 bits
16:10	1440 x 900	32 bits
16:9	1366 x 768	32 bits
16:9	1360 x 768	32 bits
16:10	1280 x 800	32 bits
15:9	1280 x 768	32 bits
16:9	1280 x 720	32 bits
Standard Display
4:3	1600 x 1200	32 bits
4:3	1400 x 1050	32 bits
5:4	1400 x 1050	32 bits
4:3	1280 x 960	32 bits
4:3	1152 x 864	32 bits
4:3	1024 x 768	32 bits
4:3	800 x 600	32 bits
4:3	640 x 480	32 bits

System Requirements

Microsoft Windows 10/ 8.1/ 8/ 7 (32-bit or 64-bit) compatible
Mac OS X 10.8 or later
Available USB 3.0/2.0 port (USB 3.0 recommended)
One 2K (2048 x 1152 @ 60Hz) full-screen video playback
CPU: Intel Core i5 Quad Core
RAM: 4 GB memory or higher
Two 2K (2048 x 1152 @ 60Hz) full-screen video playback
CPU: Intel Core i7 Quad Core
RAM: 8 GB memory or higher

Note for Video Player:

Windows 8.1/8/7 user: “Windows Media Player" is recommended for video playback
Windows 10 user: “Movies &TV" is recommended for video playback

Note:

Gigabit Ethernet requires driver installation on Mac
To ensure that your device is equipped with the most current driver, please visit our available drivers page here and install the latest driver for this model.

Package Contents

JUD380 USB 3.0 Mini Dock
Driver CD
Quick Installation Guide
