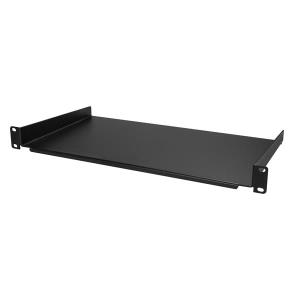

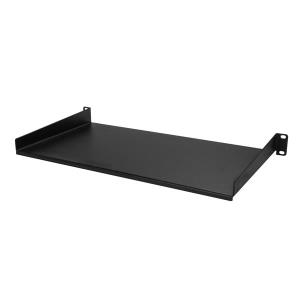

Startech 1U Rack Shelf - 10 in. Deep - 1U Server Rack Shelf - Add a sturdy 1U server rack shelf into almost any rack or cabinet CABSHELF1U10

CABSHELF1U10

Ensure your equipment or tools are secure with heavy-duty steel construction

Save space in your office or server room by placing non-rackmount IT or AV equipment on your rack

Hassle-free compatibility with EIA-310 compliance


Overview

This 1U rack shelf lets you add 10 in. of flat storage space to any EIA-310 compliant server rack or cabinet.


Ensure your equipment is secure

The durable fixed-rack shelf can hold up to 20 kg (44 lbs.) of equipment and is constructed using SPCC commercial-grade cold-rolled steel.


Make the most of your available space

The 1U cantilever shelf lets you optimize your working space by giving you the ability to mount equipment to your rack instead of taking up desk or floor space. It’s perfect for your SOHO (small office, home office) environment, server room or any other location with limited space available.


Customize your setup

You can install the 1U rack shelf in your rack at any height, giving you a stable surface for placing equipment that's un-mountable or storing your tools.

Technical Specifications

PRODUCT NUMBERS
	Ingram Micro Australia	3677758
	UPC Code	065030870474

WARRANTY INFORMATION
	Warranty	Lifetime
HARDWARE
	Additional Required Tools	Phillips Screwdriver
	Adjustable Mounting Rails	No
	Cable Management	No
	Frame Type	Steel
	Industry Standards	EIA-310-D
	Mounting Options	Front Mount (Front Only)
	Number and Type of Included Cage Nuts	4 - M6
	Tools Included	No
	U Height	1U
PERFORMANCE
	Weight Capacity (Stationary)	44.2 lb [20 kg]
SPECIAL NOTES / REQUIREMENTS
	Note	Includes 4x C-cup washers
PHYSICAL CHARACTERISTICS
	Color	Black
	Enclosure Type	Steel
	External Depth	10 in [254 mm]
	External Height	1.7 in [44.5 mm]
	External Width	19 in [482.6 mm]
	Internal Width	17.2 in [436 mm]
	Product Height	1.7 in [44.5 mm]
	Product Length	9.8 in [250 mm]
	Product Weight	70.6 oz [2000 g]
	Product Width	19 in [482.6 mm]
	Rail Thickness	0.1 in [2.1 mm]
PACKAGING INFORMATION
	Shipping (Package) Weight	5.4 lb [2.5 kg]
WHAT'S IN THE BOX
	Included in Package	1 - 1U fixed shelf
		4 - cage nuts
		4 - mounting screws
