Startech 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub SV231HDMIUA

Features

Click to view full size

Click to view full size

high included computers package resolutions

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

SV231HDMIUA

Supports push button and hotkey PC Switching
Integrated USB 2.0 hub - Share USB peripherals between PCs
Supports High Resolutions Digital video up to UXGA (1600x1200), WUXGA (1920x1200), and 1080p (1920x1080)
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).

A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.

Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.

The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.

Warranty Information
Warranty	3 Years
Hardware
Audio	Yes
Cables Included	No
Daisy-Chain	No
KVM Ports	2
Number of Monitors Supported	1
PC Interface	USB
PC Video Type	HDMI
Rack-Mountable	No
Performance
Hot-Key Selection	Yes
IP Control	No
Maximum Digital Resolutions	1920 x 1200
Maximum Number of Users	1
On-Screen Display	No
Port Selection Support	Push Button and Hotkeys
Wide Screen Supported	Yes

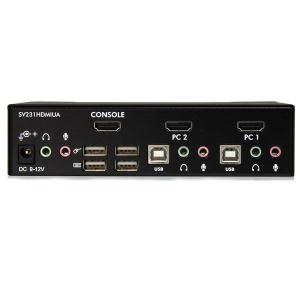

Connector(s)
Console Interface(s)	1 - HDMI (19 pin) Female
	2 - 3.5 mm Mini-Jack (3 Position) Female
	4 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors	2 - HDMI (19 pin) Female
	2 - USB B (4 pin) Female
	4 - 3.5 mm Mini-Jack (3 Position) Female
Software
OS Compatibility	OS independent; No software or drivers required
Indicators
LED Indicators	2 - Online/Active (Green - Connected PC is online, Red - PC is selected)
Power
Center Tip Polarity	Positive
Input Current	0.8A
Input Voltage	110V-240V AC
Output Current	1.5A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	18
Power Source	AC Adapter Included
Environmental
Humidity	0~80% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color	Black
Enclosure Type	Steel
Product Depth	2.8 in [70 mm]
Product Height	1.6 in [40 mm]
Product Weight	28.2 oz [800 g]
Product Width	4.9 in [124.8 mm]
Packaging Information
Shipping (Package) Weight	2.5 lb [1.1 kg]
What's in the Box
Included in Package	1 - 2 Port HDMI KVM
	1 - Package of Rubber feet
	1 - Power Adapter
	1 - User Manual

Information

SKU/Item No 565323

Vendor Part No SV231HDMIUA

UPC/EAN Number 065030837521
