Startech Dual mSATA SSD to 2.5” SATA RAID Adapter Converter 25SAT22MSAT

Features

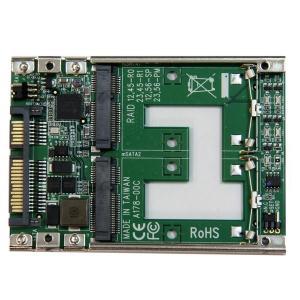

25sat22msat raid sata msata drive
Click to view full size

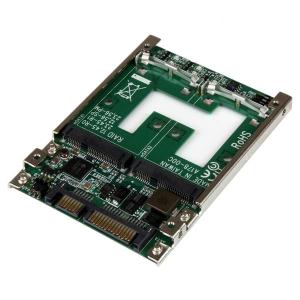

drives startech adapter type jbod
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

25SAT22MSAT




Build a RAID array with two mSATA SSDs that can be installed into a single 2.5in SATA bay


  • Dual full size mSATA SSD bays


  • Supports RAID0, RAID1, JBOD, BIG


  • Open-frame steel mounting bracket


Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.


Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.


You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.


Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.


The 25SAT22MSAT is backed by a StarTech.com 2-year warranty, and lifetime technical support.


The StarTech.com Advantage
  • Maximize system speed by adding SSD performance
  • Achieve greater drive capacity, or secure data redundancy with multiple RAID modes
  • Reduce overall power consumption, with high efficiency mSATA SSDs

Applications
  • Add data redundancy to your SSD system, by adding an additional SSD in a RAID array (RAID1)
  • Increase the capacity of your SSD system by adding an additional SSD in a RAID array (RAID 0/BIG)
  • Turn two unused mSATA SSD drives into a hardware RAID 2.5in SATA solid state drive

Warranty Information

Warranty
2 Years

Hardware

Chipset ID
JMicron JMS562

Compatible Drive Types
mSATA (Mini SATA)

Drive Installation
Fixed

Drive Size
mSATA (Full Size & Half Size)

Interface
SATA

Number of Drives
2

Performance

Hot Swap Capability
No

Maximum Data Transfer Rate
6 Gbps

MTBF
5,101,299 Hours

Port Multiplier
Yes

RAID
Yes

Supported RAID Modes
BIG (Spanning or Concatenation)

JBOD - (Just a Bunch of Disks)

RAID 0 (Striped Disks)

RAID 1 (Mirrored Disks)

Type and Rate
SATA III (6 Gbps)

Connector(s)

Drive Connectors
2 - mSATA (52 pin, Mini SATA) Receptacle

Host Connectors
1 - SATA Data & Power Combo (7+15 pin) Receptacle

Software

OS Compatibility
OS independent; No software or drivers required

Indicators

LED Indicators
1 - Drive #1 Activity

1 - Drive #1 Failure

1 - Drive #2 Activity

1 - Drive #2 Failure

Environmental

Operating Temperature
-40°C to 85°C (-40°F to 185°F)

Physical Characteristics

Enclosure Type
Steel, Aluminum and Plastic

Product Height
0.3 in [7 mm]

Product Length
3.8 in [97 mm]

Product Weight
1.4 oz [39 g]

Product Width
2.8 in [70 mm]

Packaging Information

Shipping (Package) Weight
3.8 oz [108 g]

What's in the Box

Included in Package
1 - Dual mSATA to 2.5in SATA Adapter

1 - Mounting screw kit

1 - Install Guide



Dual mSATA SSD to 2.5SATA RAID Adapter Converter - 2x mSATA SSD to 2.5in SATA Adapter with RAID and 7mm Open Frame Housing - Dual mSATA SSD RAID Controller to SATA Adapter


Brand Name: StarTech.com
Controller Type: Serial ATA/600
Form Factor: Internal
Host Interface: SATA/600
Number of Hard Drives Installed: No
Number of Hard Drives Supported: 2
Product Type: DAS Array
RAID Levels: 0, 1, Concatenation, JBOD


Basic

Brand Name:
StarTech.com

Controller Type:
Serial ATA/600

Form Factor:
Internal

Host Interface:
SATA/600

Number of Hard Drives Installed:
No

Number of Hard Drives Supported:
2

Product Type:
DAS Array

RAID Levels:
0, 1, Concatenation, JBOD
Controllers

Controller Type:
Serial ATA/600


Raid Levels (Sde):

0

JBOD

RAID Levels:
0, 1, Concatenation, JBOD
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
25SAT22MSAT

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
Dual mSATA SSD to 2.5" SATA RAID Adapter Converter

Product Type:
DAS Array
Interfaces/Ports

Host Interface:
SATA/600

Number of mSATA Interfaces:
2
Miscellaneous

Certifications & Standards:
  • FCC
  • CE

Country of Origin:
Taiwan

Environmentally Friendly:
Yes

Platform Supported:
Mac

PC
Physical Characteristics

Depth:
100 mm

Form Factor:
Internal

Height:
7 mm


Weight (Approximate):

40 g

Width:
70 mm
Storage

Number of Hard Drives Installed:
No

Number of Hard Drives Supported:
2
