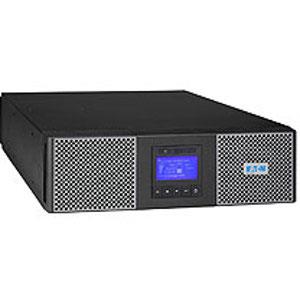

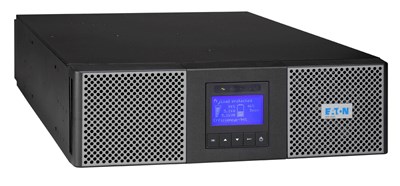

Eaton 9PX 5KVA R/T 3U 1:1 UPS (internal batteries) 9PX5KI

Features

Click to view full size

voltage frequency internal input specifications

Click to view full size

9px5ki power terminal internal block image 3

Click to view full size

voltage frequency class eaton input image 3

Click to view full size

(Pictures are For Illustration Purposes Only)

Eaton's MPN:

9PX5KI

9PX 5kVA 1:1 UPS (internal batteries)

Double conversion topology. The Eaton 9PX constantly monitors power conditions and regulates voltage and frequency.

With up to 95% efficiency in online double conversion mode and 98% in high-efficiency mode the 9PX provides the highest efficiency level in its class to reduce energy and cooling costs.

With a 0.9 power factor the 9PX delivers 28% more power than any UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.

With a RT (Rack/tower) versatile form factor the 9PX is the most compact solution in its class

Technical Specifications

Specifications
Battery	Internal
Communication/Management	1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation. 1 slot for Network-MS card (included in Netpack versions), ModBus-MS or Relay-MS cards.
Frequency	40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%
Input Connection	Terminal block
Input Voltage	200/208/220/230/240V 1:1
Misc.	-
Output Receptacles	Terminal block + 2 controlled groups of 4 IEC C13 (10A) + 2 IEC C19 (16A)
Output Voltage	200/208/220/230/240V +/– 1%; THDU <2%
Power Rating/Capacity	5kVA/4.5kW
Series	9px
Typical Runtime	13/10 minutes on 50%/70% load
Warranty	2 Years warranty
x`	-

Specifications

Battery

Internal

Communication/Management

1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation. 1 slot for Network-MS card (included in Netpack versions), ModBus-MS or Relay-MS cards.

Frequency

40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%

Input Connection

Terminal block

Input Voltage

200/208/220/230/240V 1:1

Misc.

Output Receptacles

Terminal block + 2 controlled groups of 4 IEC C13 (10A) + 2 IEC C19 (16A)

Output Voltage

200/208/220/230/240V +/– 1%; THDU <2%

Power Rating/Capacity

5kVA/4.5kW

Series

9px

Typical Runtime

13/10 minutes on 50%/70% load

Warranty

2 Years warranty

Information

SKU/Item No 564166

Vendor Part No 9PX5KI

UPC/EAN Number 743172039330
