TP-LINK EAP110 Outdoor 300Mbps Wireless N Outdoor Access Point 1xRJ45 Passive PoE 2*5dBi External Omni waterproof Antenna Pole/Wall Mounting EAP110-Outdoor

EAP110-Outdoor

TP-Link EAP110 Outdoor 300Mbps Wireless N Outdoor Access Point 1xRJ45 Passive PoE 2*5dBi External Omni waterproof Antenna Pole/Wall Mounting




Built for outdoor Wi-Fi applications


Up to 300Mbps Wi-Fi with 2x2 MIMO technology


High transmission power and high gain antennas provide a long-range coverage area


Durable, weatherproof enclosure to withstand fair and foul weather


Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation


Free Auranet Controller Software lets administrators easily manage hundreds of EAPs


Captive portal provides a convenient method for guest authentication




HARDWARE FEATURES

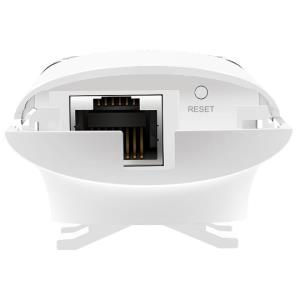

Interface Fast Ethernet (RJ-45) Port *1（Support Passive PoE）


Button Reset


Power Supply 24VDC / 0.6A Passive PoE Supply


Power Consumption 6.3 W


Dimensions ( W x D x H ) 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)


Antenna Type 2*5dBi External Omni waterproof


Mounting Pole / Wall Mounting (Kits included)


Watch Dog Yes


WIRELESS FEATURES


Wireless Standards IEEE 802.11n/g/b


Frequency 2.4GHz




Signal Rate 11N:
Up to 300Mbps(dynamic)




11G:
Up to 54Mbps(dynamic)




11B:
Up to 11Mbps(dynamic)


Transmit Power CE：


<20dBm




Fcc:



<27dBm


Wireless Functions Multiple SSIDs（Up to 8 SSIDs）


Enable/Disable Wireless Radio


Automatic Channel Assignment


Transmit Power Control （Adjust Transmit Power on dBm）


QoS(WMM)


Load Balance


Rate Limit


Reboot Schedule


Wireless Schedule


Wireless Statistics based on SSID/AP/Client


Wireless Security Captive Portal Authentication


Access Control


Wireless Mac Address Filtering


Wireless Isolation Between Clients


SSID to VLAN Mapping


Rogue AP Detection


802.1X Support


64/128/152-bit WEP / WPA / WPA2-Enterprise,


WPA-PSK / WPA2-PSK
