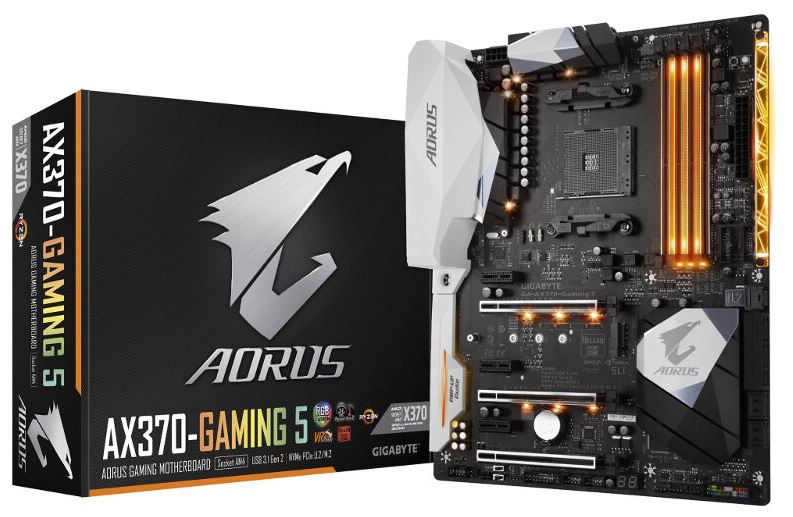

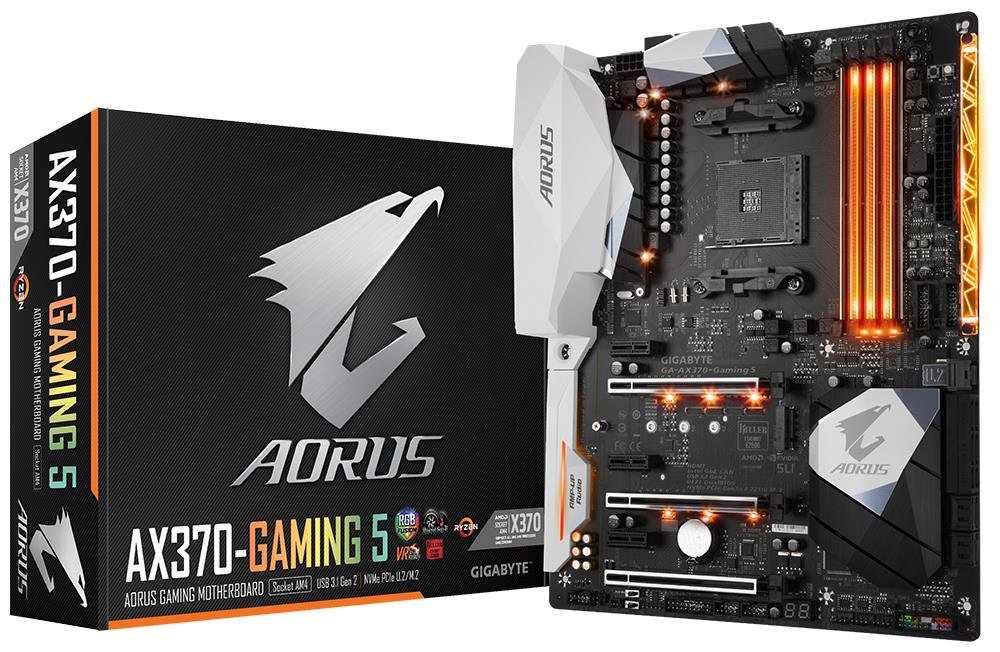

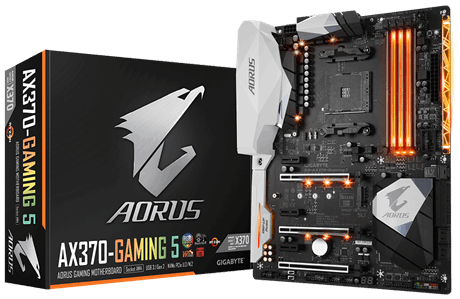

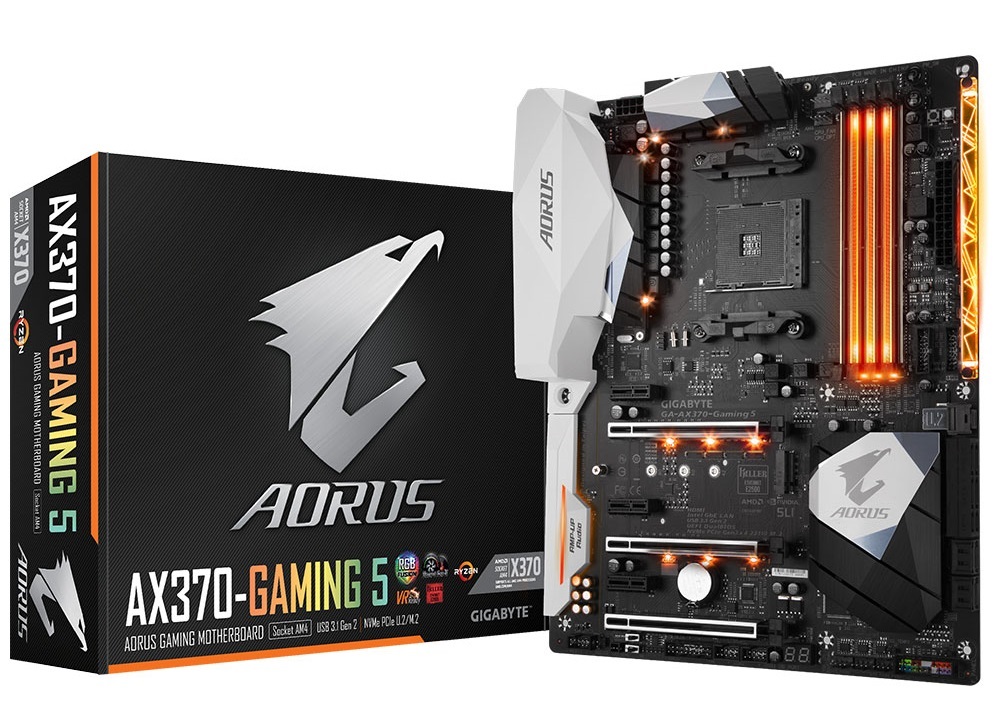

Gigabyte GA-AX370-GAMING 5, AM4 ATX MB 4xDDR4 1xPCIEx16 2xSLI 2xCF M.2 U.2 HDMI RAID Killer NIC Intel GbE Lan 4xUSB3.1 Creative X-Fi RGB Fusion VR GA-AX370-GAMING-5

Features

ga-ax370-gaming-5 support x-fi dual express

Click to view full size

Click to view full size

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

Gigabyte's MPN:

GA-AX370-GAMING-5

AMD X370, 4 x DDR4 DIMM, 1 x HDMI, 10 x USB 3.1, 2 x RJ-45, 5 x Audio Jacks, ATX

Supports AMD Ryzen™ & 7^th Generation A-series/ Athlon™ Processors

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

Fast 4 USB 3.1 Gen 2 with USB Type-C™ and Type-A

2-Way CrossFire™/SLI™ Multi-Graphics Support with Dual Armor and Ultra Durable™ Design

NVMe PCIe Gen3 x4 U.2 Connector

Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support

Creative^® Sound Blaster X-Fi MB5 support

Dual ALC 1220 with Front & Rear 120dB SNR HD Audio with Dual Smart Headphone Amps

Killer™ E2500 Gaming Network + Intel^® Gigabit LAN

USB DAC-UP 2 & 4 Front USB 3.0 Ports with Adjustable Voltage

RGB FUSION with Multi-Zone LED Light Show design

Swappable Overlay for Accent LED

Smart Fan 5 features 9 Temperature Sensors and 8 Hybrid Fan Headers

2 External Thermistors Headers with 2 Included Thermistors

GIGABYTE UEFI DualBIOS™

APP Center Including EasyTune™ and Cloud Station™ Utilities

Technical Specifications

Specifications
Audio	2 x Realtek ALC1220 codecs, Support for Sound Blaster X-Fi MB5, Support for S/PDIF Out
Chipset	AMD X370
Form Factor	30.5cm x 24.4cm
I/O Connectors	8 x SATA 6Gb/s, 1 x M.2 Socket, 2 x USB 3.1, 2 x USB 2.0, 1 x OC button
Integrated CPU Graphics	1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
LAN	1 x Intel GbE LAN chip (10/100/1000 Mbit)(LAN1), 1 x Rivet Networks Killer E2500 LAN chip (10/100/1000 Mbit) (LAN2)
Memory/Type/Bus/Max.	4 X DDR4 DIMM, Dual channel memory architeture
PCI Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x8 (PCIEX8), 1 x PCI Express x16 slot, running at x4 (PCIEX4)
Processor Support	AMD Ryzen processor, AMD 7th Generation A-series/ Athlon processor
Raid	0, 1, 10
Socket	AM4
Storage Interface	1 x M.2 connector, 1 x U.2 connector, 8 x SATA 6Gb/s connectors
Warranty	3 Years
Weight

Specifications

Audio

2 x Realtek ALC1220 codecs, Support for Sound Blaster X-Fi MB5, Support for S/PDIF Out

Chipset

AMD X370

Form Factor

30.5cm x 24.4cm

I/O Connectors

8 x SATA 6Gb/s, 1 x M.2 Socket, 2 x USB 3.1, 2 x USB 2.0, 1 x OC button

Integrated CPU Graphics

1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz

LAN

1 x Intel GbE LAN chip (10/100/1000 Mbit)(LAN1), 1 x Rivet Networks Killer E2500 LAN chip (10/100/1000 Mbit) (LAN2)

Memory/Type/Bus/Max.

4 X DDR4 DIMM, Dual channel memory architeture

PCI Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x8 (PCIEX8), 1 x PCI Express x16 slot, running at x4 (PCIEX4)

Processor Support

AMD Ryzen processor, AMD 7th Generation A-series/ Athlon processor

Raid

0, 1, 10

Socket

AM4

Storage Interface

1 x M.2 connector, 1 x U.2 connector, 8 x SATA 6Gb/s connectors

Warranty

3 Years

Weight

Information

SKU/Item No 563751

Vendor Part No GA-AX370-GAMING-5

UPC/EAN Number MBG-AX370-GAMING-5

Our Stock ** (click for more info)

Price

$396.75
