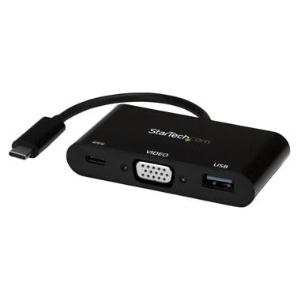

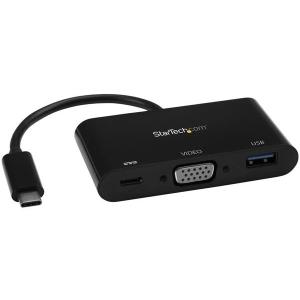

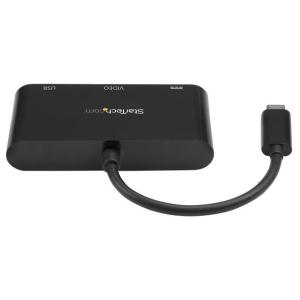

Startech USB-C to VGA Multifunction Adapter with Power Delivery and USB-A Port CDP2VGAUACP

Features

Startech

Startech's MPN:

CDP2VGAUACP




Connect your USB Type-C laptop to a VGA display and a USB Type-A peripheral device, plus power and charge your laptop


  • Universal adapter that adds a VGA port (2048 x 1280p - 60Hz) and a USB-A port to your laptop, through USB-C


  • Can be used with your laptop power adapter to power and charge your laptop, with support for USB Power Delivery


  • Rugged housing design for durability, lightweight and compact for portability and convenience


This universal multifunction adapter lets you expand the connectivity of your laptop or MacBook through USB-C™. You can connect your laptop to a VGA display, while also connecting a traditional USB 3.0 device. And, when coupled with your laptop’s power adapter, the multiport adapter delivers power to help charge and maintain your laptop’s battery.


Rugged, travel-friendly design


This compact USB-C adapter is a vital accessory for virtually any USB-C equipped laptop, MacBook, or Chromebook™. It’s extremely portable, with a lightweight, small-footprint design that tucks neatly into your laptop bag or carrying case.


The rugged multifunction adapter meets the tough demands of travelers. Now you can rest assured knowing your adapter is ready when you are.


Expands your display capabilities


If you have a VGA display or projector, you can connect it to this combo adapter to create a dual-screen workstation, comprised of your laptop’s display and the additional external display or projector. With an additional display, you can get more work done at once by multitasking more efficiently.


Whether you’re delivering a presentation in a boardroom or looking to add a display to your existing laptop workstation, this adapter is a must-have accessory.


Charges your laptop


Because this versatile adapter supports USB Power Delivery, you can power and charge your laptop through its USB Type-C™ port. Simply connect the adapter to your laptop’s USB-C port, and then connect your laptop’s power adapter to the multifunction adapter.


By using a single power adapter to power your laptop and the adapter, instead of using multiple adapters, you can travel lighter and more conveniently. Plus, you can reduce cable clutter in your work area.


Universally supported


Unlike some proprietary laptop adapters designed only to work with specific laptop models, this universal adapter works with multiple brands. All you need is a laptop's USB-C port that supports DP alt mode and USB Power Delivery, and you can be up and running quickly. With universal support, you can use this adapter with different laptops now, or in the future. Plus, it’s compatible with Thunderbolt™ 3 ports.


Works with older USB devices


This USB-C to VGA multifunction adapter features a USB 3.0 port that's backward compatible with older USB devices. It’s perfect for data transfers, syncing, or charging your mobile device.


The CDP2VGAUACP is backed by a StarTech.com 3-year warranty and free lifetime technical support.


Applications
  • Carry the adapter with you when you travel, and connect to almost any VGA monitor, TV, or projector
  • Ideal for BYOD (Bring Your Own Device) and CYOD (Choose Your Own Device) applications in the office
  • An essential accessory for the latest USB-C equipped laptops and Windows® based tablets, as well as the Apple MacBook, and Google Chromebook™
  • Power and charge your USB Type-C equipped laptop through the adapter, using your laptop’s power adapter

Warranty Information

Warranty
3 Years

Hardware

4K Support
No

Bus Type
USB-C

Chipset ID
VIA/VLI - VL100

VIA/VLI - VL210

NXP - PTN3355

Displays Supported
1

Fast-Charge Port(s)
No

Industry Standards
USB 3.0 - Backward compatible with USB 2.0 and 1.1

Performance

Maximum Analog Resolutions
2048 x 1280p @ 60Hz

Maximum Data Transfer Rate
5 Gbps (USB 3.0)

Maximum Power Delivery Support
60 W

Type and Rate
USB 3.0 - 5 Gbit/s

UASP Support
Yes

Connector(s)

Connector Type(s)
1 - USB Type-C (24 pin) USB 3.0 Male

1 - VGA (15 pin, High Density D-Sub) Female

1 - USB Type-A (9 pin) USB 3.0 Female

1 - USB Type-C (24 pin) USB 3.0 Female

Special Notes / Requirements

Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.

The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.

USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.

System and Cable Requirements
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode).

The multifunction adapter does not include a USB-C power adapter.


Optional:
the multifunction adapter can be used with a separate USB-C power adapter (for example, your laptop’s USB-C based power adapter).

Power

Power Source
USB-Powered

Environmental

Humidity
5~90% RH (Non-condensing)

Operating Temperature
0°C to 45°C (32°F to 113°F)

Storage Temperature
-10°C to 70°C (14°F to 158°F)

Physical Characteristics

Color
Black

Enclosure Type
Plastic

Product Height
0.6 in [15 mm]

Product Length
3.1 in [80 mm]

Product Weight
1.4 oz [39 g]

Product Width
1.6 in [40 mm]

Packaging Information

Shipping (Package) Weight
4 oz [113 g]

What's in the Box

Included in Package
1 - USB-C to VGA multifunction adapter



USB-C to VGA Multifunction Adapter with Power Delivery and USB-A Port - USB Type-C to VGA - USB C Laptop Travel Adapter - USB Type C Adapter with PD


Brand Name: StarTech.com
Connectivity Technology: Wired
Device Supported: Notebook/Tablet PC
Number of USB 3.0 Ports: 3
Product Type: Docking Station
Thunderbolt: Yes
Total Number of USB Ports: 3
VGA: Yes


Basic

Brand Name:
StarTech.com

Connectivity Technology:
Wired

Device Supported:
Notebook/Tablet PC

Number of USB 3.0 Ports:
3

Product Type:
Docking Station

Thunderbolt:
Yes

Total Number of USB Ports:
3

VGA:
Yes
General Information

Brand Name:
StarTech.com

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
USB-C to VGA Multifunction Adapter with Power Delivery and USB-A Port

Product Type:
Docking Station
Interfaces/Ports

Host Interface:
USB Type C

Number of USB 3.0 Ports:
3

Thunderbolt:
Yes

Total Number of USB Ports:
3

VGA:
Yes
Miscellaneous

Compatibility: 		Notebooks:
  • Apple MacBook
  • Google Chromebook
Physical Characteristics


Weight (Approximate):

96.4 g
Technical Information

Connectivity Technology:
Wired

Device Supported:
Notebook/Tablet PC
