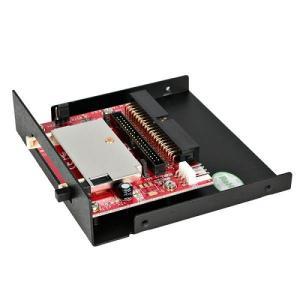

Startech 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader 35BAYCF2IDE

Features

Click to view full size

35baycf2ide card flash type drive image 2

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

35BAYCF2IDE

Connect a CF card to a computer through an IDE connector

Quick and driver free installation into any IDE 40 pin and 44 pin slot
Fully compatible with Compact Flash Type I/II and IBM Micro-drive
Allows Compact flash card to be used as bootable storage

This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive.

The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection.

Designed and constructed to provide a reliable media card platform, the CF IDE adapter is backed by StarTech.com's 2-year warranty.

The StarTech.com Advantage

Quick and driver free installation into any IDE 40 pin and 44 pin slot
Easily swap cards in and out with built-in push button ejector

Applications

Use your compact flash card as a bootable and removable device
Excellent for swapping operating systems quickly without having to take your computer apart.
Connect your compact flash card to a 40 or 44 pin IDE slot

Warranty Information
Warranty	2 Years
Hardware
Interface	IDE
Performance
Maximum Data Transfer Rate	133 MBps
Memory Media Type	CF (Compact Flash I/II Card)
Connector(s)
Drive Connectors	1 - CompactFlash (50 pin) Slot
Host Connectors	1 - IDE (40 Pin, EIDE/PATA) Male
	1 - SP4 (4 pin, Small Drive Power) Male
Software
OS Compatibility	OS independent; No software or drivers required
Special Notes / Requirements
Note	This product does not support hot-swapping of flash cards while the PC is powered on. You must turn-off your computer to switch cards.
Environmental
Humidity	5% ~ 85% RH
Operating Temperature	-55°C to 85°C (-67°F to 185°F)
Storage Temperature	-55°C to 85°C (-67°F to 185°F)
Physical Characteristics
Product Height	1 in [25 mm]
Product Length	3.8 in [97 mm]
Product Weight	5.1 oz [145 g]
Product Width	3.9 in [100 mm]
Packaging Information
Shipping (Package) Weight	0.6 lb [0.3 kg]
What's in the Box
Included in Package	1 - Compact Flash to IDE Adapter
	1 - 3.5” Enclosure
	1 - Full Profile Expansion Slot Bracket
	1 - SP4 to LP4 Molex Power Cable
	1 - Instruction Manual

3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader

Brand Name: StarTech.com

Form Factor: Internal

Host Interface: IDE/EIDE

Memory Card Supported: CompactFlash Type II

Memory Card Supported: Microdrive

Product Type: Flash Reader

Basic
Brand Name:	StarTech.com
Form Factor:	Internal
Host Interface:	IDE/EIDE
Memory Card Supported:	CompactFlash Type II
	Microdrive
Product Type:	Flash Reader

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	35BAYCF2IDE
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Product Name:	3.5in Drive Bay IDE to CF Adapter Card
Product Type:	Flash Reader

Interfaces/Ports
Host Interface:	IDE/EIDE

Memory
Memory Card Supported:	CompactFlash Type I
	CompactFlash Type II
	Microdrive

Miscellaneous
Additional Information:	Use your compact flash card as a bootable and removable device Excellent for swapping operating systems quickly without having to take your computer apart. Connect your compact flash card to a 40 or 44 pin IDE slot Easily swap cards in and out with built-in push button ejector Easy to use jumpers offer simple master/slave drive setting
Form Factor:	Internal

Physical Characteristics
Form Factor:	Internal

Product Information
Form Factor:	Internal

Storage
Memory Card Supported:	CompactFlash Type I
	CompactFlash Type II

Technical Information
Host Interface:	IDE/EIDE
Memory Card Supported:	CompactFlash Type I
	CompactFlash Type II

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 559641

Vendor Part No 35BAYCF2IDE

UPC/EAN Number 065030824194
