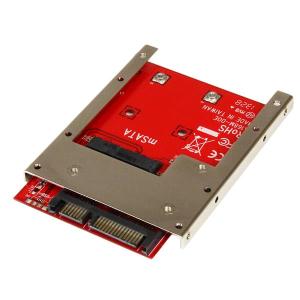

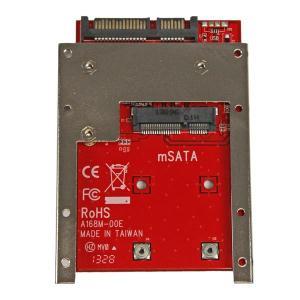

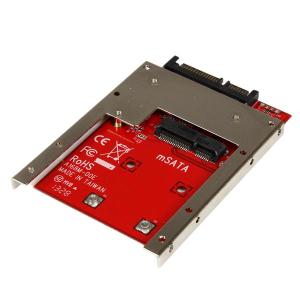

Startech mSATA SSD to 2.5in SATA Adapter Converter SAT32MSAT257

Features

Startech

Startech's MPN:

SAT32MSAT257




Convert an mSATA SSD into a 7mm high 2.5in SATA 6Gbps Open Frame SSD


  • Open frame aluminum bracket


  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)


  • Supports 7mm or larger 2.5" SATA bays


Vastly increase system performance by adding the speed of an mSATA SSD in any 2.5" SATA application, with the SAT32MSAT257 mSATA to SATA adapter.


Utilize the full potential of your SATA III controller, with an mSATA SSD reducing your DATA transfer bottle neck with file transfer speeds up to 6 Gbps.  mSATA SSDs also save you money by reducing your power consumption over regular platter drives.


Help protect the health of your drive with an open frame design ensuring maximum heat dissipation.


The SAT32MSAT257 is backed by a StarTech.com 2-year warranty, and lifetime technical support.


The StarTech.com Advantage
  • Maximize system speed by adding SSD performance
  • Help prevent your drive from failure, with open frame aluminum housing providing excellent heat dissipation
  • Reduce overall power consumption, with a high efficiency mSATA SSD

Applications
  • Turn an unused mSATA SSD drive into a regular 2.5in SATA solid state drive
  • Retrieve/backup data from an mSATA SSD drive with a standard SATA computer
  • Access mSATA SSD drives from an external source, such as a SATA drive enclosure or docking station

Warranty Information

Warranty
2 Years

Hardware

Compatible Drive Types
mSATA (Mini SATA)

Drive Installation
Fixed

Interface
SATA

Number of Drives
1

Performance

Hot Swap Capability
No

Maximum Data Transfer Rate
6 Gbps

Type and Rate
SATA III (6 Gbps)

Connector(s)

Drive Connectors
1 - mSATA (52 pin, Mini SATA) Receptacle

Host Connectors
1 - SATA Data & Power Combo (7+15 pin) Receptacle

Software

OS Compatibility
OS independent; No software or drivers required

Environmental

Operating Temperature
-40°C to 85°C (-40°F to 185°F)

Physical Characteristics

Product Height
0.3 in [7 mm]

Product Length
3.9 in [100 mm]

Product Weight
1.7 oz [48 g]

Product Width
2.8 in [70 mm]

Packaging Information

Shipping (Package) Weight
4 oz [114 g]

What's in the Box

Included in Package
1 - mSATA SSD to 2.5in SATA SSD Converter

1 - Mounting kit (2x drive mounting screws, 4x adapter mounting screws)

1 - Installation manual



mSATA SSD to 2.5in SATA Adapter Converter - mSATA to SATA Adapter Converter for 2.5in Drive Bay with Open Frame Bracket and 7mm Drive Height - mSATA to SATA III


Brand Name: StarTech.com
Compatible Drive Bay Width: 2.5"
Drive Interface: mini-SATA
Form Factor: Internal
Host Interface: Serial ATA
Number of 2.5" Bays: No
Number of 2.5"/3.5" Bays: No
Number of 3.5" Bays: No
Number of 5.25" Bays: No
Number of Total Expansion Bays: 1
Product Type: Drive Bay Adapter


Basic

Brand Name:
StarTech.com

Compatible Drive Bay Width:
2.5"

Drive Interface:
mini-SATA

Form Factor:
Internal

Host Interface:
Serial ATA

Number of 2.5" Bays:
No

Number of 2.5"/3.5" Bays:
No

Number of 3.5" Bays:
No

Number of 5.25" Bays:
No

Number of Total Expansion Bays:
1

Product Type:
Drive Bay Adapter
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
SAT32MSAT257

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
mSATA SSD To 2.5in SATA Adapter Converter

Product Type:
Drive Bay Adapter
I/O Expansions

Number of 2.5" Bays:
No

Number of 2.5"/3.5" Bays:
No

Number of 3.5" Bays:
No

Number of 5.25" Bays:
No

Number of Total Expansion Bays:
1
Interfaces/Ports

Drive Interface:
mini-SATA

Host Interface:
Serial ATA
Miscellaneous

Certifications & Standards:
  • CE
  • FCC

Country of Origin:
Taiwan

Environmentally Friendly:
Yes

Platform Supported:
Mac

PC
Physical Characteristics

Compatible Drive Bay Width:
2.5"

Depth:
100 mm

Form Factor:
Internal

Height:
7 mm

Width:
70 mm
