Startech 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD HSB3SATSASBA

Features

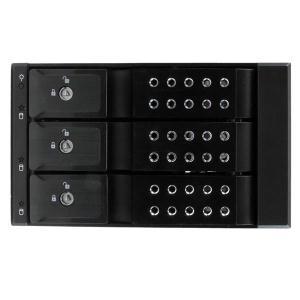

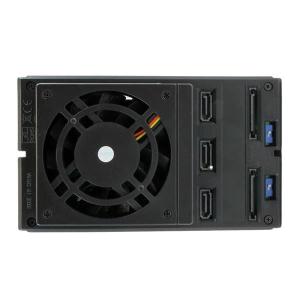

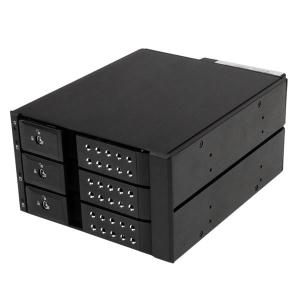

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

Startech's MPN:

HSB3SATSASBA

Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays

Solid aluminum construction
Key lock design
Built-in fan
3 drive bay design

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps
Flexible drive options with support for both SATA and SAS drive interfaces
Helps maintain ideal drive operating temperatures by providing excellent heat dissipation, vented aluminum housing and a built-in fan

Applications

Imaging - for new system builds or configurations, use the hot swap bay in your master system to quickly copy the Windows OS to multiple blank hard drives
Add a hot-swap bay to a server or workstation computer that you can use as a removable backup solution
IT environments where you need to quickly insert/replace hard drives with no external HDD enclosure required

Warranty Information
Warranty	2 Years
Hardware
Compatible Drive Types	SAS & SATA
Drive Installation	Removable
Drive Size	3.5in
Fan Bearing Type	Sleeve Bearing
Fan(s)	Yes
Fans	1 - 70 mm
Interface	SATA
Key Lock	Yes
Number of Drives	3
Number of internal 3.5 inch bays	3
Performance
Fan Specifications	Speed: 3000 RPM+10% Airflow: 27.60CFM (At zero static pressure) Noise level: 26.72dB-A
Max Drive Capacity	Currently tested with up to 4TB 7200 RPM hard drives
Maximum Data Transfer Rate	6 Gbit/s
Type and Rate	SATA III (6 Gbps)
Connector(s)
Drive Connectors	3 - SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle
Host Connectors	2 - SATA Power (15 pin) Receptacle
	3 - SATA (7 pin, Data) Receptacle
Software
OS Compatibility	OS independent; No software or drivers required
Indicators
LED Indicators	1 - Power LED
	1 - Drive 1 Activity LED
	1 - Drive 2 Activity LED
	1 - Drive 3 Activity LED
Environmental
Humidity	5%~85% RH
Operating Temperature	0°C to 55°C (23°F to 95°F)
Storage Temperature	-20°C to 60°C (-4°F to 122°F)
Physical Characteristics
Color	Black
Enclosure Type	Aluminum
Product Height	4.3 in [110 mm]
Product Length	7.6 in [194.1 mm]
Product Weight	42.4 oz [1200 g]
Product Width	5.7 in [145 mm]
Packaging Information
Shipping (Package) Weight	42.4 oz [1200 g]
What's in the Box
Included in Package	1 - 3 SATA HDD Backplane
	1 - Installation screw kit
	1 - Instruction Manual
	2 - Bay Key
	3 - 18" SATA Cable

3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS IISATA III 6 Gbps HDD

Brand Name: StarTech.com

Colour: Black

Compatible Drive Bay Width: 5.25"

Drive Interface: 6Gb/s SAS

Drive Interface: Serial ATA/600

Form Factor: Internal

Host Interface: Serial ATA/600

Number of 1.8" Bays: No

Number of 2.5" Bays: No

Number of 2.5"/3.5" Bays: No

Number of 3.5" Bays: 3

Number of 5.25" Bays: No

Number of Total Expansion Bays: 3

Product Type: Drive Enclosure

Wireless LAN: No

Basic
Brand Name:	StarTech.com
Colour:	Black
Compatible Drive Bay Width:	5.25"
Drive Interface:	6Gb/s SAS
	Serial ATA/600
Form Factor:	Internal
Host Interface:	Serial ATA/600
Number of 1.8" Bays:	No
Number of 2.5" Bays:	No
Number of 2.5"/3.5" Bays:	No
Number of 3.5" Bays:	3
Number of 5.25" Bays:	No
Number of Total Expansion Bays:	3
Product Type:	Drive Enclosure
Wireless LAN:	No

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	HSB3SATSASBA
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	3 SATA HDD Backplane
Product Type:	Drive Enclosure

I/O Expansions
Number of 1.8" Bays:	No
Number of 2.5" Bays:	No
Number of 2.5"/3.5" Bays:	No
Number of 3.5" Bays:	3
Number of 5.25" Bays:	No
Number of Total Expansion Bays:	3

Interfaces/Ports
Drive Interface:	Serial ATA/600
Host Interface:	Serial ATA/600
Network (Rj-45):	No

Miscellaneous
Certifications & Standards:	CE FCC
Environmentally Friendly:	Yes

Network & Communication
Wireless LAN:	No

Physical Characteristics
Colour:	Black
Compatible Drive Bay Width:	5.25"
Depth:	193 mm
Form Factor:	Internal
Material:	Aluminium
Width:	144.8 mm

Information

SKU/Item No 559608

Vendor Part No HSB3SATSASBA

UPC/EAN Number 065030855297
