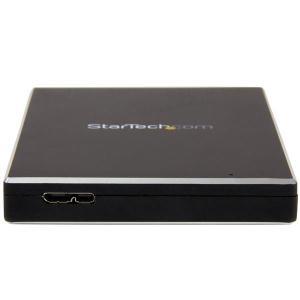

Startech USB 3.1 (10 Gbps) Enclosure for 2.5” SATA Drives S251BMU313

Features

Click to view full size

s251bmu313 bays number drive enclosure image 2

Click to view full size

(Pictures are For Illustration Purposes Only)

Startech's MPN:

S251BMU313

Get ready for ultra-fast USB 3.1 Gen 2 data storage using your 2.5” SSD or HDD

Create an ultra-fast USB 3.1 Gen 2 (10 Gbps) storage solution for a single 2.5” SSD or HDD drive
Supports SATA I, II and III (up to 6 Gbps)
Compact, portable design in a sleek brushed aluminum enclosure

Now, access your data in record time with the superior performance of USB 3.1 Gen 2 (10 Gbps). This single-drive enclosure gives you a powerful external storage solution.

Photo of StarTech.com USB 3.1 Gen 2 aluminum enclosure (S251BMU313) on laptop bag showing easy portability

Ultra fast, ultra portable data storage

The enclosure turns your 2.5in SATA solid-state or hard drive into ultra-fast, ultra portable data storage. Its lightweight, compact design allows it to be tucked easily into a laptop bag or carrying case. Engineered with a durable and sleek brushed aluminum housing, it’s equipped to keep your data safe and secure wherever you go.

Harness the speed of USB 3.1 Gen 2

USB File Transfer Rates diagram shows USB 3.1 Gen 2 at 10 Gbps is twice the speed of USB 3.0 at 5 Gbps

USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

Powered directly from the USB port

The enclosure connects easily to a host computer through USB 3.1 Gen 2, with no external power required. It is equipped with a USB A to Micro B cable, providing backward compatibility with existing USB ports or hardware. It also provides UASP support for enhanced performance.

The S251BMU313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Take advantage of new laptops and desktops with ultra-fast USB 3.1 Gen 2 (10 Gbps) connectivity
Create a fast, portable external storage solution for desktops, laptops or netbooks with this metal enclosure, providing durable performance in demanding environments
Use your SATA SSD/HDDs at maximum speed
Back up important data to an external storage device
Share large files between computers quickly and securely without a network
Retrieve data from old SATA drive, or turn the unused drive into additional external storage space

Warranty Information
Warranty	2 Years
Hardware
Bus Type	USB 3.1 Gen 2
Chipset ID	ASMedia - ASM1351
Compatible Drive Types	SATA
Drive Installation	Fixed
Drive Size	2.5in
Fan(s)	No
Interface	USB 3.1 Gen 2
Number of Drives	1
Performance
Max Drive Capacity	Currently tested with hard drives up to 2TB at 7200 RPM
Maximum Data Transfer Rate	10 Gbps
Type and Rate	USB 3.1 Gen 2 - 10 Gbit/s
	SATA III (6 Gbps)
UASP Support	Yes
Connector(s)
Drive Connectors	1 - SATA Data & Power Combo (7+15 pin) Female
Host Connectors	1 - USB 3.1 USB Type Micro-B (10 pin, Gen 2, 10 Gbps) Female
Software
OS Compatibility	OS independent; No software or drivers required
Indicators
LED Indicators	1 - Power & Activity
Power
Power Source	USB-Powered
Environmental
Humidity	Operation Humidity: 10% ~ 90% RH Storage Humidity: 5% ~ 95% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 65°C (14°F to 149°F)
Physical Characteristics
Color	Black
Enclosure Type	Aluminum
Max Drive Height	0.4 in [9.5 mm]
Product Height	0.5 in [12 mm]
Product Length	4.8 in [123 mm]
Product Weight	2.8 oz [80 g]
Product Width	3 in [75 mm]
Packaging Information
Shipping (Package) Weight	5.8 oz [163 g]
What's in the Box
Included in Package	1 - USB 3.1 to SATA enclosure
	1 - USB cable
	1 - 7mm - 9.5mm SSD spacer
	1 - protective case
	4 - assembly screws
	1 - screwdriver
	1 - quick start guide

USB 3.1 Gen 2 (10 Gbps) Enclosure for 2.5 SATA Drives - Ultra-fast Portable Single-Drive Enclosure for SSD/HDD - Aluminum - Supports SATA III (up to 6 Gbps) - Backward Compatible

Brand Name: StarTech.com

Colour: Black

Drive Interface: Serial ATA/600

Form Factor: External

Host Interface: USB 3.1

Number of 1.8" Bays: No

Number of 2.5" Bays: 1

Number of 2.5"/3.5" Bays: No

Number of 3.5" Bays: No

Number of 5.25" Bays: No

Number of Total Expansion Bays: 1

Product Type: Drive Enclosure

Wireless LAN: No

Basic
Brand Name:	StarTech.com
Colour:	Black
Drive Interface:	Serial ATA/600
Form Factor:	External
Host Interface:	USB 3.1
Number of 1.8" Bays:	No
Number of 2.5" Bays:	1
Number of 2.5"/3.5" Bays:	No
Number of 3.5" Bays:	No
Number of 5.25" Bays:	No
Number of Total Expansion Bays:	1
Product Type:	Drive Enclosure
Wireless LAN:	No

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	S251BMU313
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	USB 3.1 Gen 2 (10 Gbps) Enclosure for 2.5" SATA Drives
Product Type:	Drive Enclosure

I/O Expansions
Number of 1.8" Bays:	No
Number of 2.5" Bays:	1
Number of 2.5"/3.5" Bays:	No
Number of 3.5" Bays:	No
Number of 5.25" Bays:	No
Number of Total Expansion Bays:	1

Interfaces/Ports
Drive Interface:	Serial ATA/600
Host Interface:	USB 3.1
Network (Rj-45):	No

Miscellaneous
Environmentally Friendly:	Yes

Network & Communication
UASP Support:	Yes
Wireless LAN:	No

Physical Characteristics
Colour:	Black
Cooling Fan:	No
Depth:	123 mm
Form Factor:	External
Height:	12 mm
Material:	Aluminium
Weight (Approximate):	80 g
Width:	75 mm

Information

SKU/Item No 559518

Vendor Part No S251BMU313

UPC/EAN Number 065030861489
